Seat Belt Connector End Views

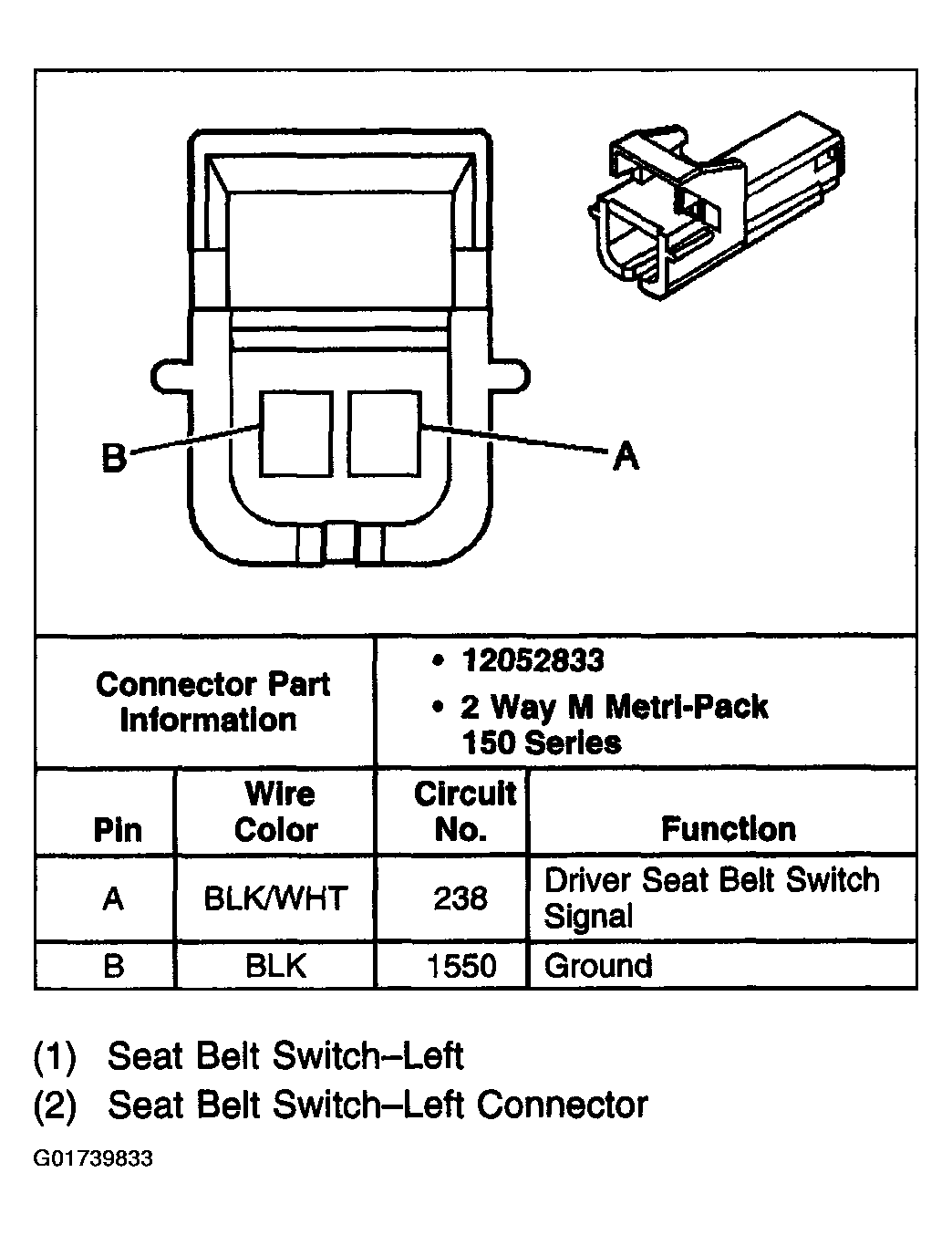

Fig 1: Identifying Seat Belt Switch (Driver's Seat)

G01739833

Courtesy of GENERAL MOTORS CORP.
