Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brakelight Switch | On Brake Pedal Bracket |
| Cruise Control Functional Switches (Except Monte Carlo) | On Multifunction Lever |
| Cruise Control Functional Switches (Monte Carlo) | On Steering Wheel |
| Cruise Control Module (Except Lumina) | On Left Strut Tower, In Engine Compartment |
| Cruise Control Module (Lumina) | Near Left Strut Tower, In Engine Compartment |

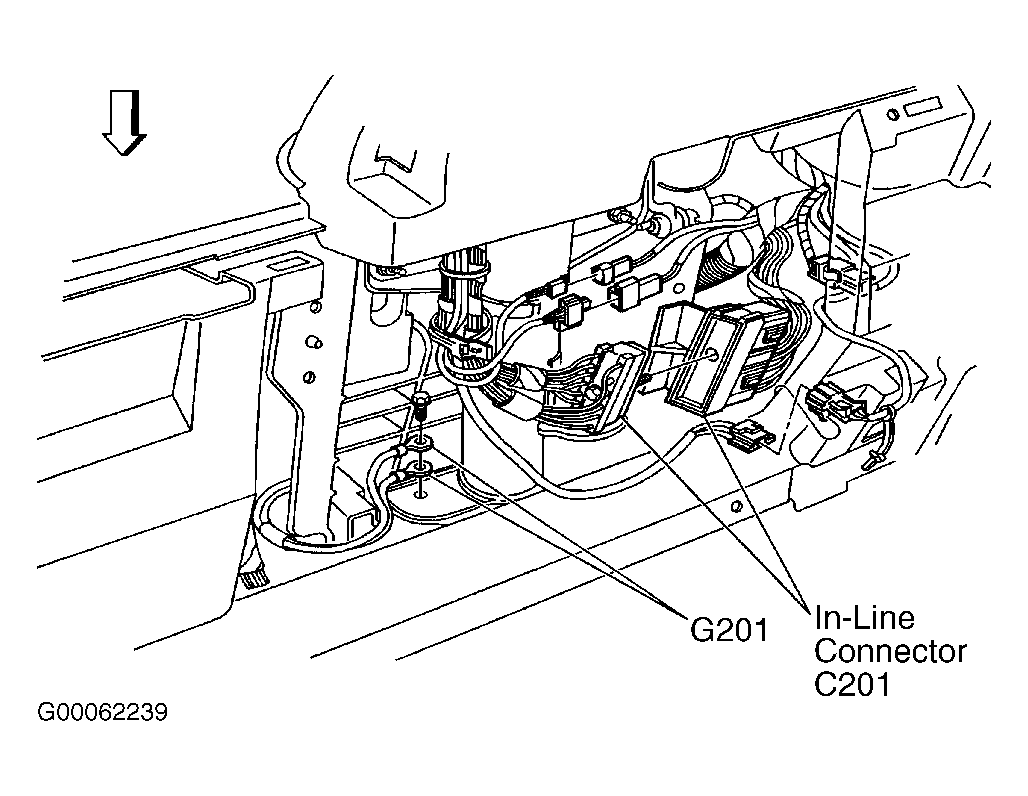

| Cruise Control Module Ground Point (Century & Regal) | Under Left Side Of Instrument Panel, Near Steering Column |

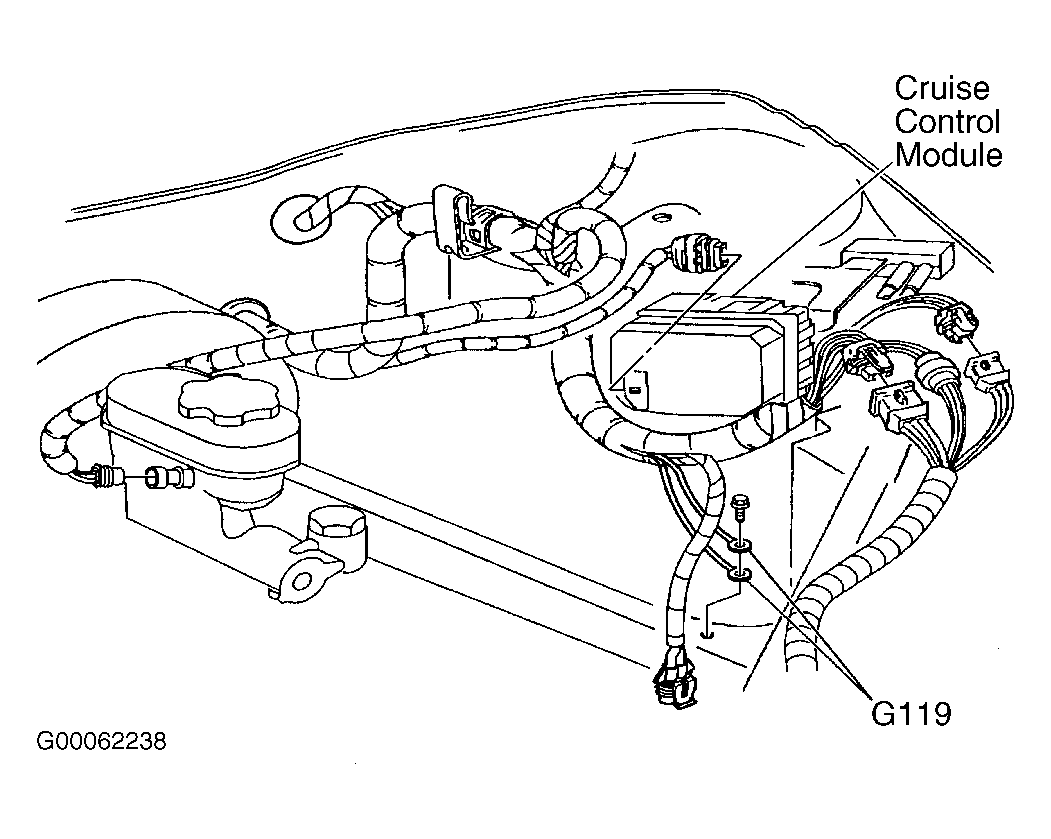

| Cruise Control Module Ground Point G119 (Grand Prix) | Left Side Of Engine Compartment, At Base Of Left Strut Tower |

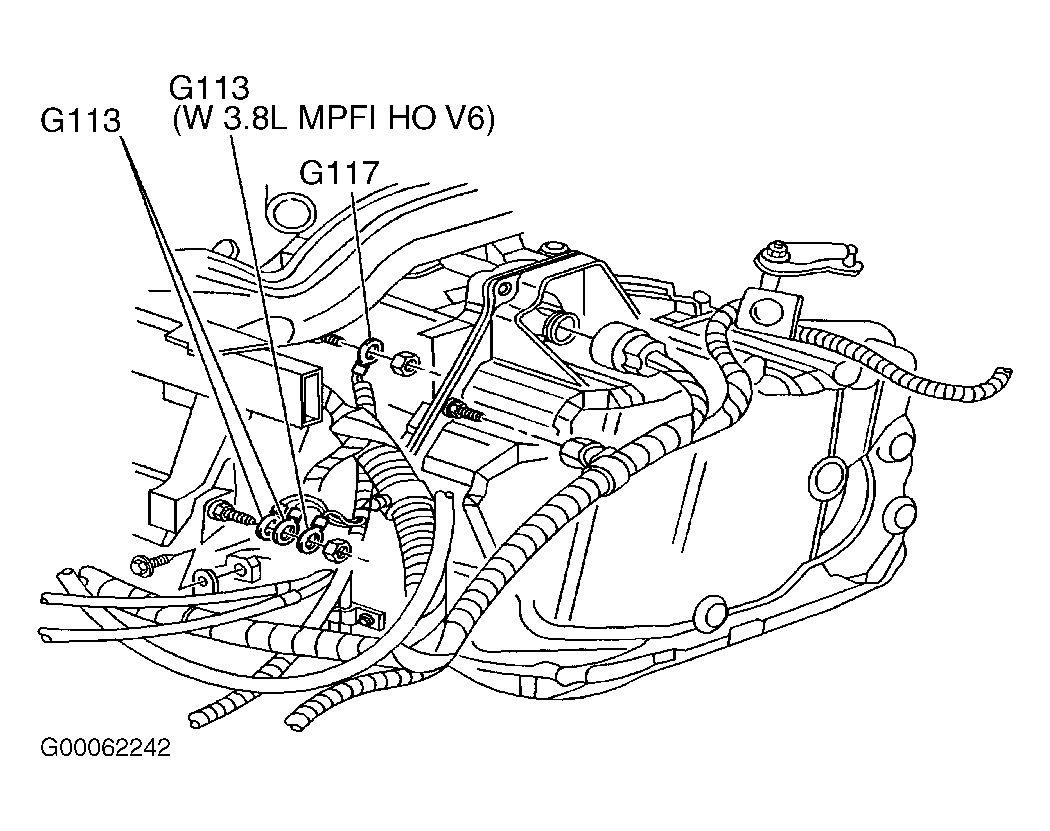

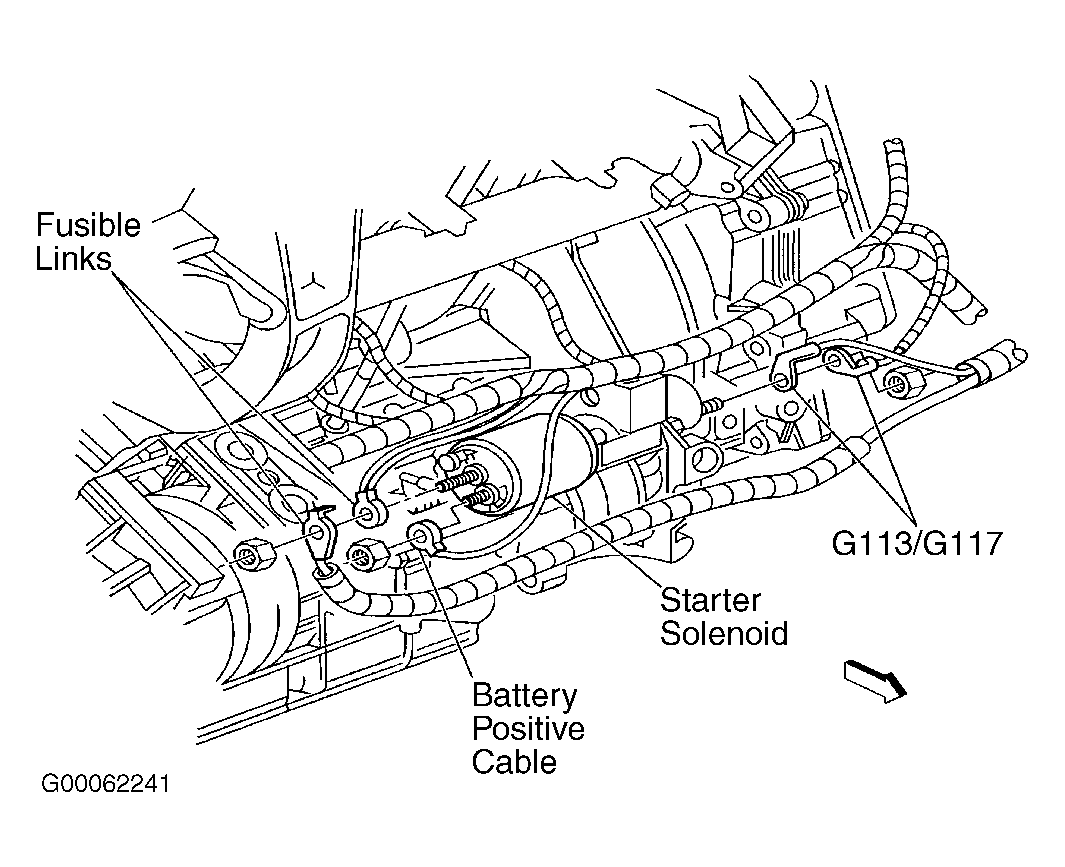

| Cruise Control Module Ground Point G113 (Impala & Monte Carlo) | Lower Left Of Engine, On Automatic Transaxle Stud |
| Cruise Control Module Ground Point G117 (Lumina) | Lower Left Of Engine, On Automatic Transaxle Stud |
| Cruise Control Release Switch | On Brake Pedal Bracket |
| Powertrain Control Module (Except Lumina) | In Engine Compartment, Inside Air Box |
| Powertrain Control Module (Lumina) | Right Side Of Engine Compartment, Forward Of Strut Tower |

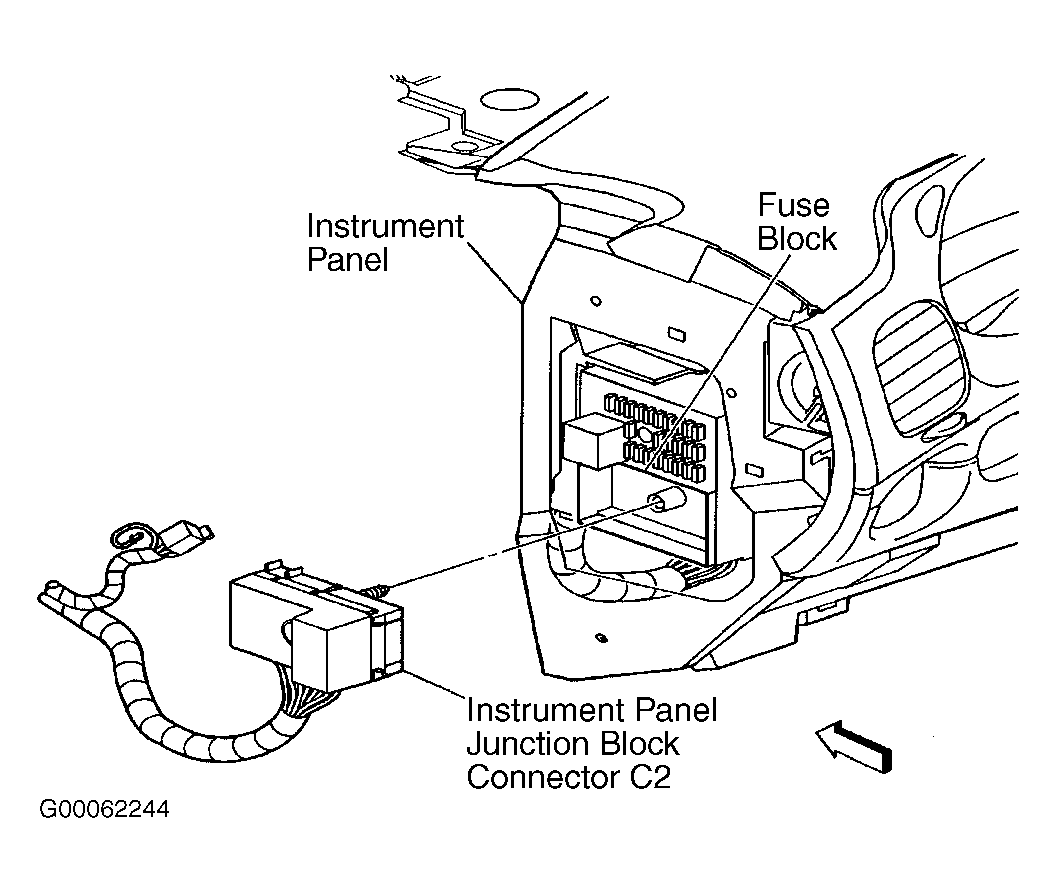

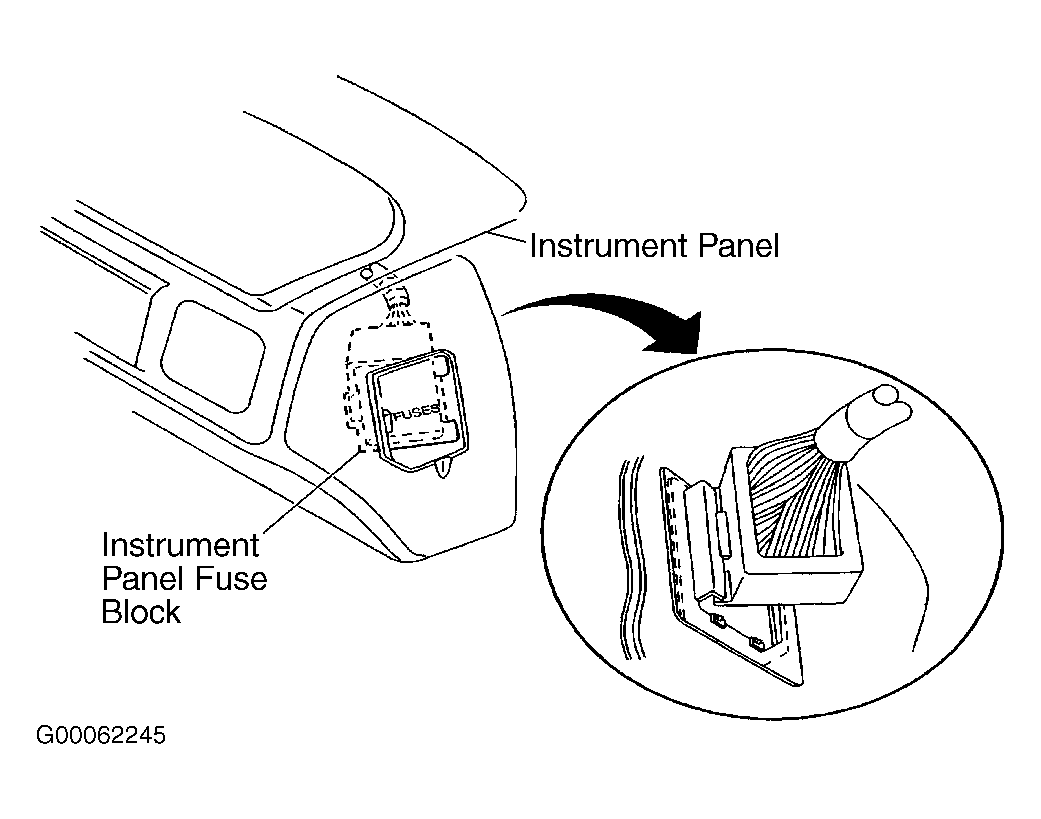

| Instrument Panel Fuse Block (Except Impala) | Right Side Of Instrument Panel, In Right Front Door Opening |
| Instrument Panel Fuse Block (Impala) | Left Side Of Instrument Panel, In Left Front Door Opening |
| Vehicle Speed Sensor | On Transaxle Case Extension Housing |
