Oil Pressure Test Plug: Installation

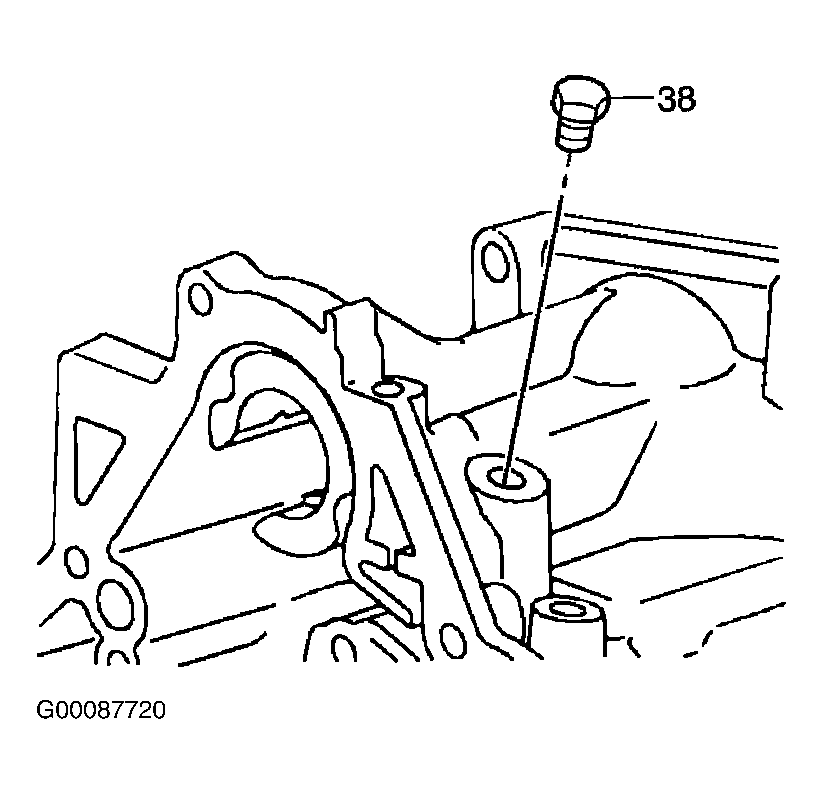

Apply (GM P/N 8654382) or equivalent to the line pressure pipe plug. Install the line pressure pipe plug (38). See Figure . Tighten the line pressure pipe plug to specification. See TORQUE SPECIFICATIONS  . On models with 3.4L engine, install the throttle body air inlet duct. On models with 3.8L engine, install air cleaner assembly.
