Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the radiator. Refer to Radiator Replacement in Engine Cooling.
    3. Fig 1: Liquid Line At Condenser
    GM540905Courtesy of GENERAL MOTORS CORP.
  3. Remove the liquid line nut from the condenser and position the liquid line aside.

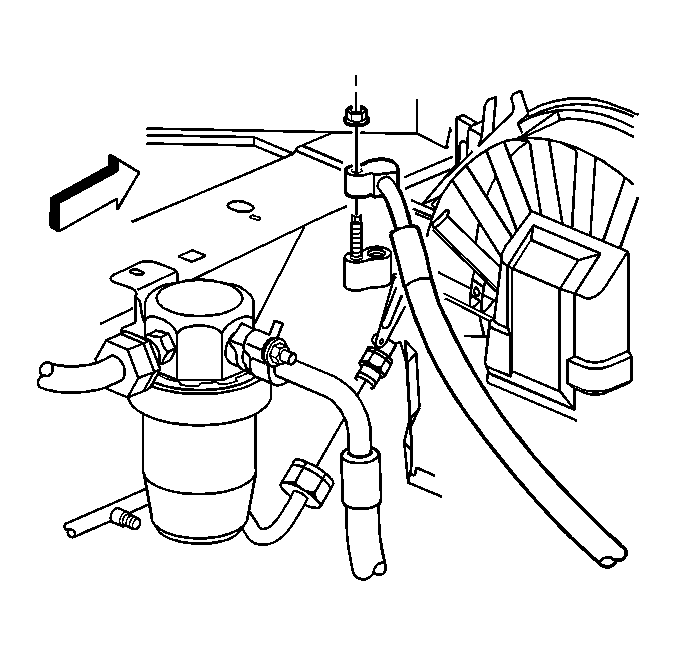

    4. Fig 2: A/C Compressor Line & Nut At Condenser
    GM540909Courtesy of GENERAL MOTORS CORP.
  4. Remove the A/C compressor line nut from the condenser and position the A/C compressor line aside.
    5. Fig 3: View Of Condenser
    GM282839Courtesy of GENERAL MOTORS CORP.
  5. Tilt the top of the condenser to the rear of the vehicle and lift up to remove the condenser.
  6. Ensure the lower rubber mounts stay in place in the vehicle.
  7. Remove the upper rubber mounts from the condenser.
