Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new sealing washers onto the A/C compressor hose assembly. Refer to Sealing Washer Replacement .
  2. Install the A/C compressor hose to the A/C compressor.

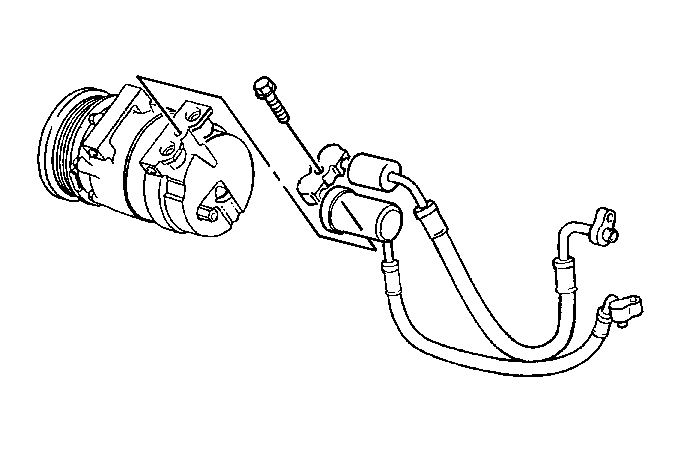

    3. Fig 1: A/C Compressor Hose At Compressor (3.4L)
    GM277924Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the A/C compressor hose bolt to the A/C compressor.

    Tighten:  Tighten the bolt to 33 N.m (24 lb ft).

    4. Fig 2: A/C Compressor Hose At Accumulator
    GM540888Courtesy of GENERAL MOTORS CORP.
  4. Install the lower air deflector. Refer to Radiator Air Baffle and Deflector Replacement - Lower in Engine Cooling.
  5. Install the new O-ring seal to the A/C compressor hose assembly. Refer to O-Ring Replacement .
  6. Install the A/C compressor hose to the accumulator.
  7. Install the A/C compressor hose nut onto the accumulator.

    Tighten:  Tighten the nut to 16 N.m (12 lb ft).

    8. Fig 3: A/C Compressor Hose At A/C Condenser
    GM540884Courtesy of GENERAL MOTORS CORP.
  8. Install the A/C compressor hose to the condenser.
  9. Install the A/C compressor hose nut to the condenser.

    Tighten:  Tighten the nut to 16 N.m (12 lb ft).

  10. Install the air cleaner assembly.
  11. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  12. Leak test the fittings of the component using J 39400-A  . See Special Tools .
