Compressor Control Valve Assembly Install (V5 - Direct Mount)

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41790-A Compressor Holding Fixture. See Special Tools .

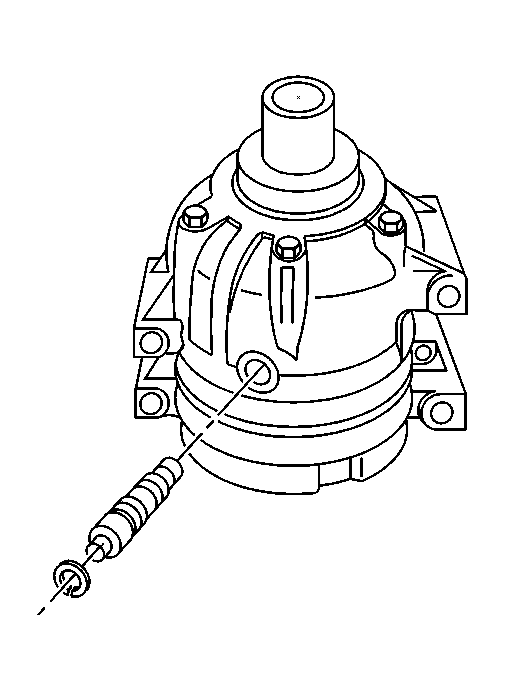

Fig 1: Compressor, Compressor Control Valve & Retaining Ring (V5 - Direct Mount)

Courtesy of GENERAL MOTORS CORP.

Coat the control valve O-rings with clean 525 viscosity refrigeration oil.
Push the compressor control valve into the compressor with thumb pressure.
Using internal snap ring pliers, install the compressor control valve retaining ring.
Ensure that the retaining ring is properly seated in the ring groove.
Remove the compressor from the J 41790-A . See Special Tools .
