Compressor Control Valve Assembly Install (V5 - Conventional Mount)

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 5403 Snap Ring Pliers. See Special Tools .

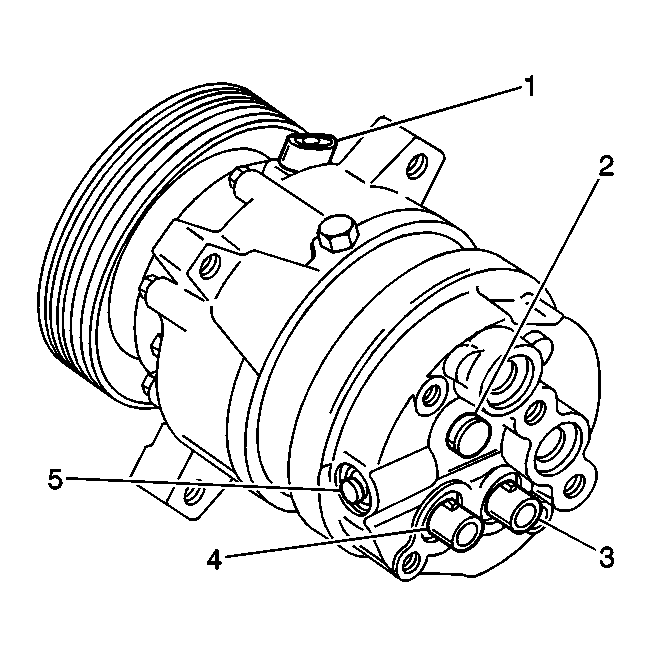

Fig 1: Identifying Compressor Components

Courtesy of GENERAL MOTORS CORP.

Coat the O-rings with 525 viscosity refrigeration oil.
Using thumb pressure, push the O-rings in place.
Install the valve into the case.

IMPORTANT: Ensure that the retaining ring is properly seated in the ring groove.

Using the J 5403 , install the valve retaining ring (5) with the high point of the curved sides against the valve housing. See Special Tools .
Perform a leak test. Refer to Compressor Leak Testing (V5 - Conventional Mount) or Compressor Leak Testing (CVC7) .
