Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

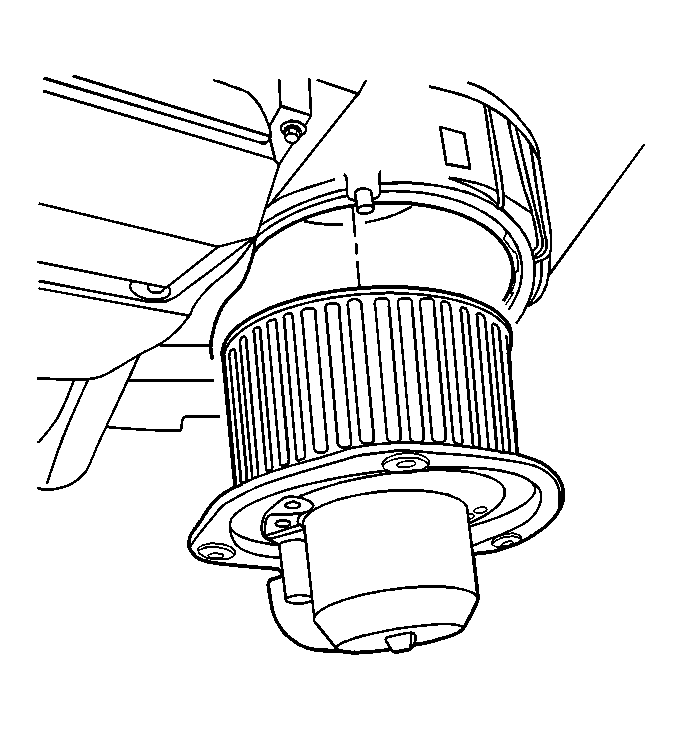

    Fig 1: View Of Blower Motor
    GM295331Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the blower motor screws.

    Tighten:  Tighten the screws to 1.3 N.m (12 lb in).

  3. Connect the blower motor cooling hose.
    4. Fig 2: Blower Motor & Electrical Connector
    GM295327Courtesy of GENERAL MOTORS CORP.
  4. Connect the blower motor electrical connector.
  5. Install the instrument panel harness into the harness retainer.
  6. Install the right side instrument panel insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
