Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the accumulator, add refrigerant oil to the accumulator. Refer to Refrigerant System Capacities  for system capacity information.

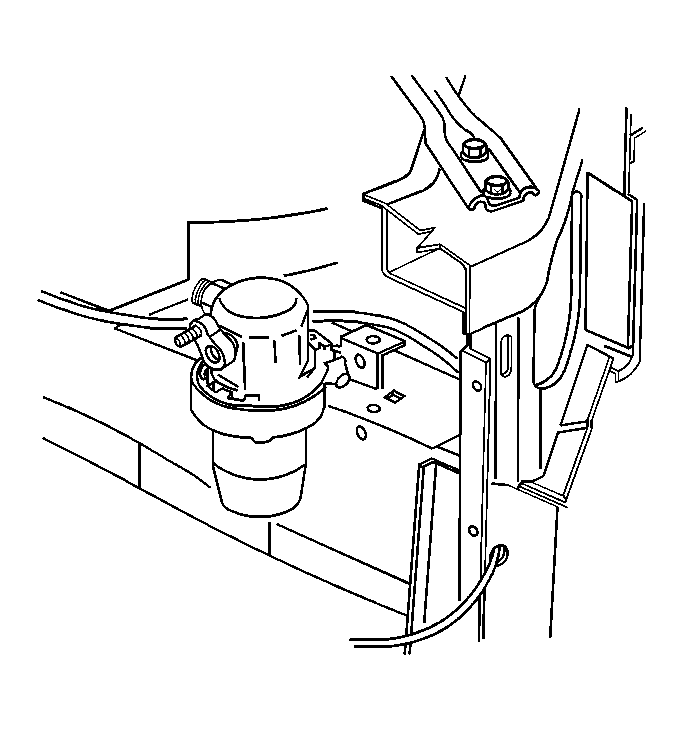

    2. Fig 1: View Of Accumulator
    GM379841Courtesy of GENERAL MOTORS CORP.
  2. Install the accumulator.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the accumulator bracket bolt.

    Tighten:  Tighten the bolt to 4 N.m (36 lb in).

  4. Install new O-ring seals onto the A/C compressor hose and the suction hose. Refer to O-Ring Replacement .

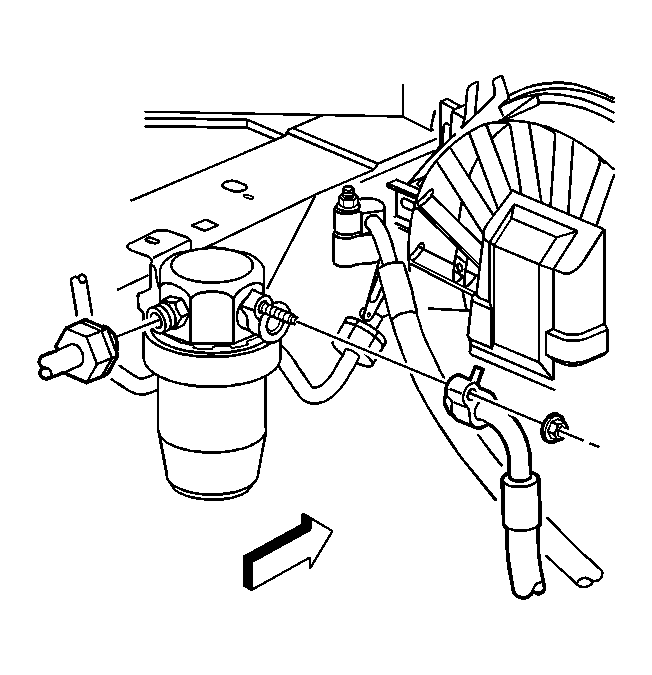

    5. Fig 2: A/C Compressor Hose & Nut At Accumulator
    GM540914Courtesy of GENERAL MOTORS CORP.
  5. Install the A/C compressor hose to the accumulator.
  6. Install the A/C compressor hose nut to the accumulator.

    Tighten:  Tighten the nut to 16 N.m (12 lb ft).

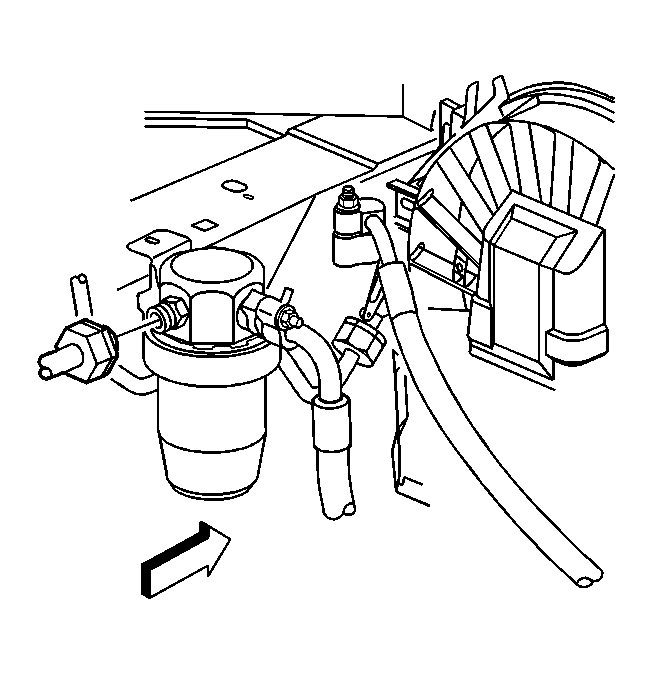

    7. Fig 3: Suction Hose At Accumulator
    GM540892Courtesy of GENERAL MOTORS CORP.
  7. Connect the suction hose to the accumulator
  8. Tighten the suction hose nut.

    Tighten:  Tighten the nut to 47 N.m (35 lb ft).

  9. Install the air cleaner assembly.
  10. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
  11. Leak test the fittings of the component using J 39400-A  . See Special Tools .
