Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

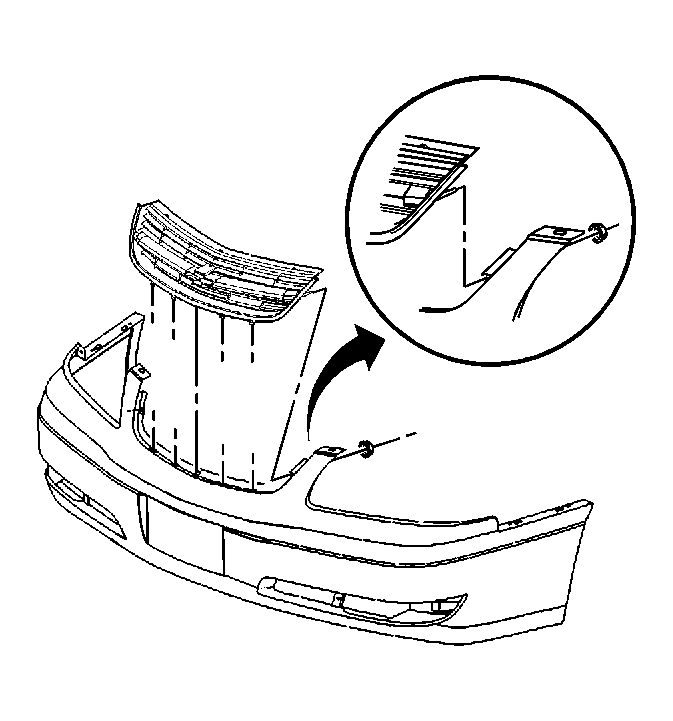

    Fig 1: Fascia Grille
    GM457544Courtesy of GENERAL MOTORS CORP.
  1. Align the lower retainer tabs of the grille to the front bumper fascia.
  2. Install the lower grille to the front bumper fascia by pressing down until the tabs are fully seated.
  3. Align the outer location pins by manipulating the front bumper fascia and pressing in the grille until fully seated.
  4. Install the circle retainers to the ends of the grille.

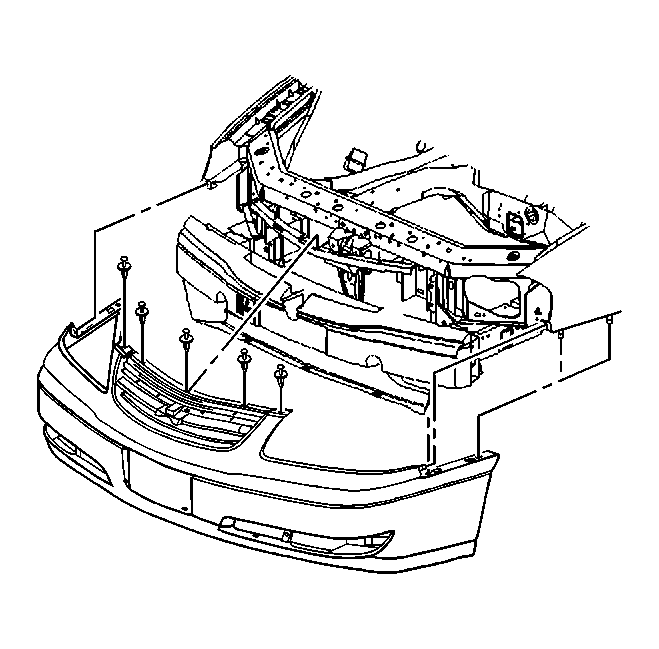

    5. Fig 2: Front Bumper Fascia Push-In Retainers
    GM457537Courtesy of GENERAL MOTORS CORP.
  5. Install the push-in retainers to the upper grille.
  6. Install the upper radiator air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Upper in Engine Cooling.
  7. Close the hood.
