Cruise Control Schematics

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

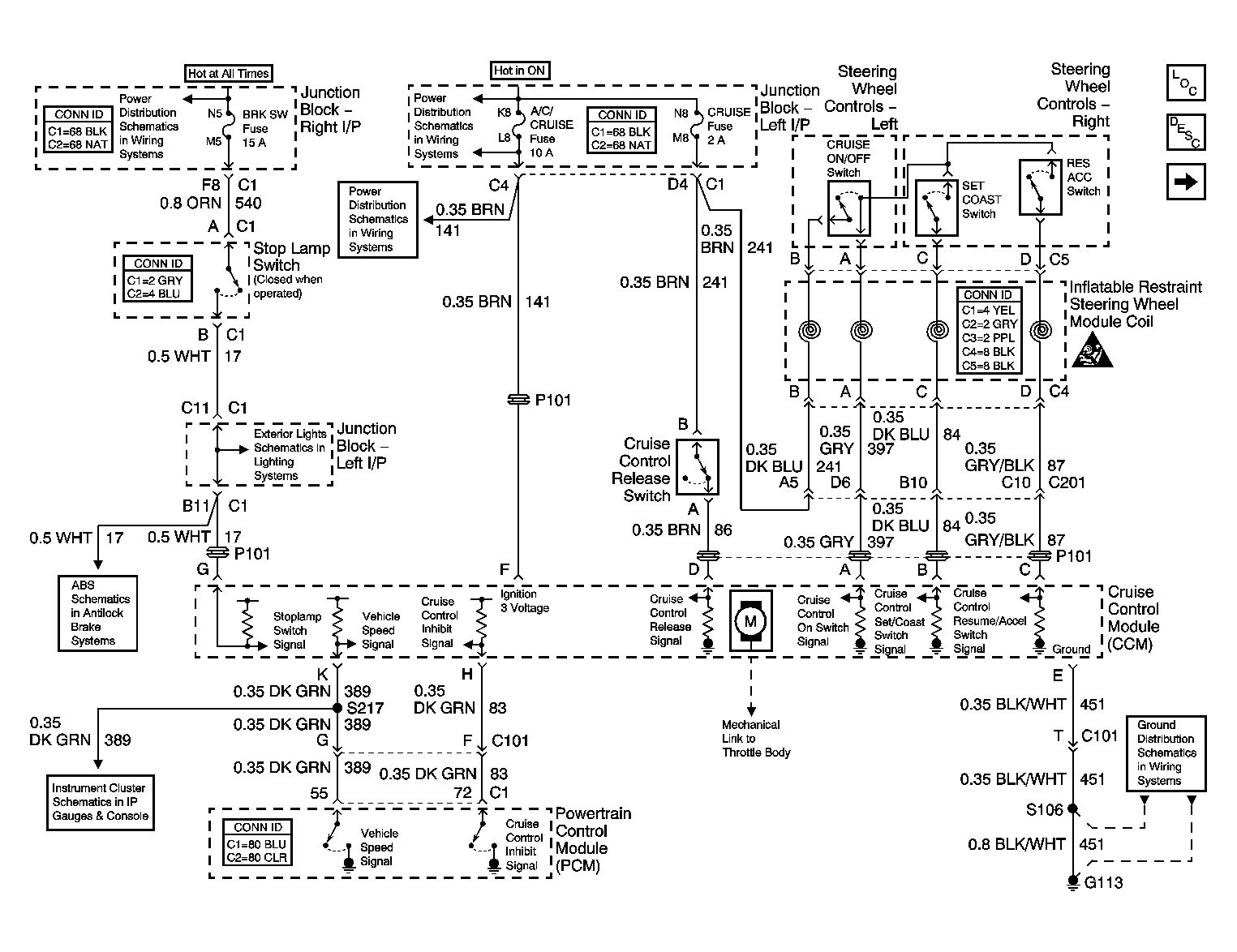

Fig 1: Cruise Control Schematic (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

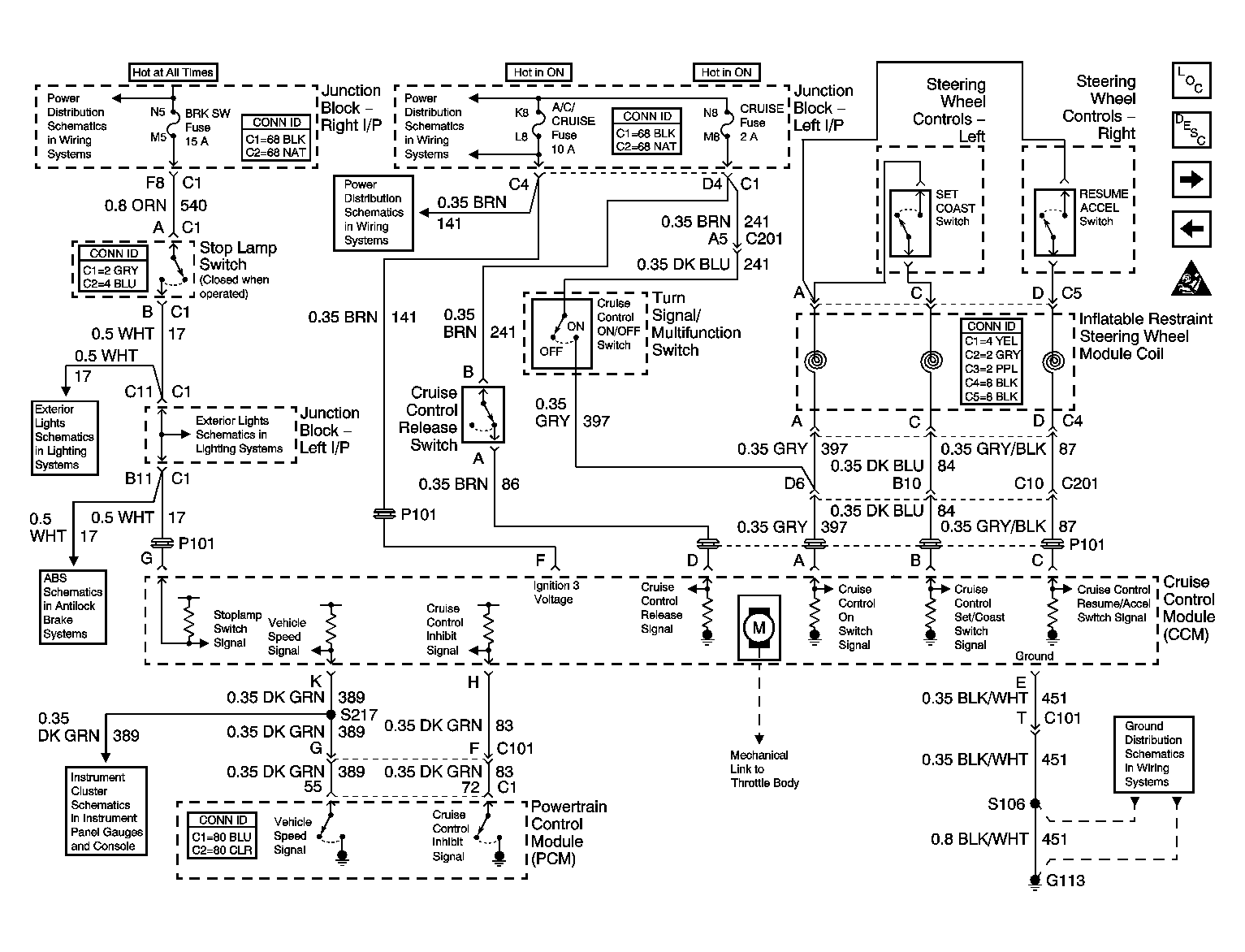

Fig 2: Cruise Control Schematic (Impala)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Indicator Control Schematic

Courtesy of GENERAL MOTORS CORP.
