Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Route the engine oil cooler lines under the battery cable.
  1. Install the engine oil cooler lines to the vehicle.
  2. Install the engine oil cooler to the vehicle. Refer to Engine Oil Cooler Replacement - Auxiliary .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  4. Install the engine oil cooler lines to the engine oil filter adapter. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .

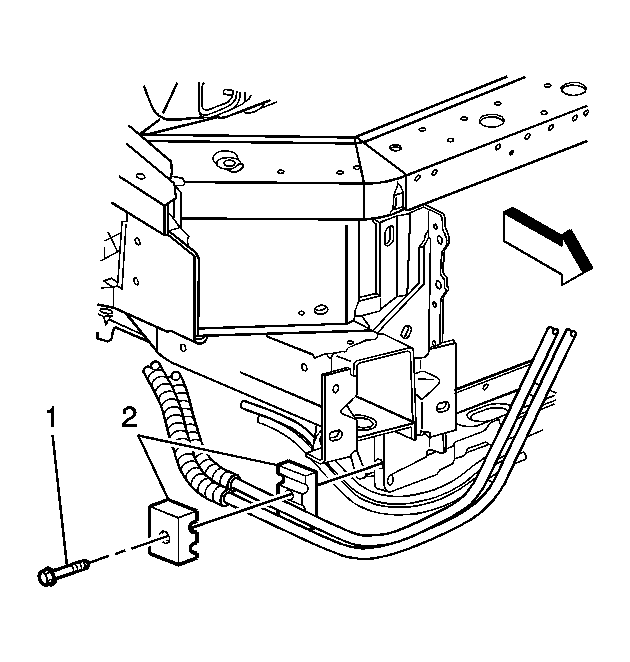

    5. Fig 1: Engine Oil Cooler Lines, Mounting Bolt & Mounting Block
    GM882650Courtesy of GENERAL MOTORS CORP.
  5. Install the engine oil cooler line mounting block (2) to the engine oil cooler lines.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the bolt (1) through the engine oil cooler line mounting block.

    Tighten:  Tighten the bolt to 3.4 N.m (30 lb in).

  7. Install a new tie strap around the engine oil cooler lines and frame.
  8. Install the right engine splash shield. Refer to Splash Shield Replacement - Engine - Right in Body Front End.
  9. Add the proper amount of engine oil.
