Interior Lights Schematics

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

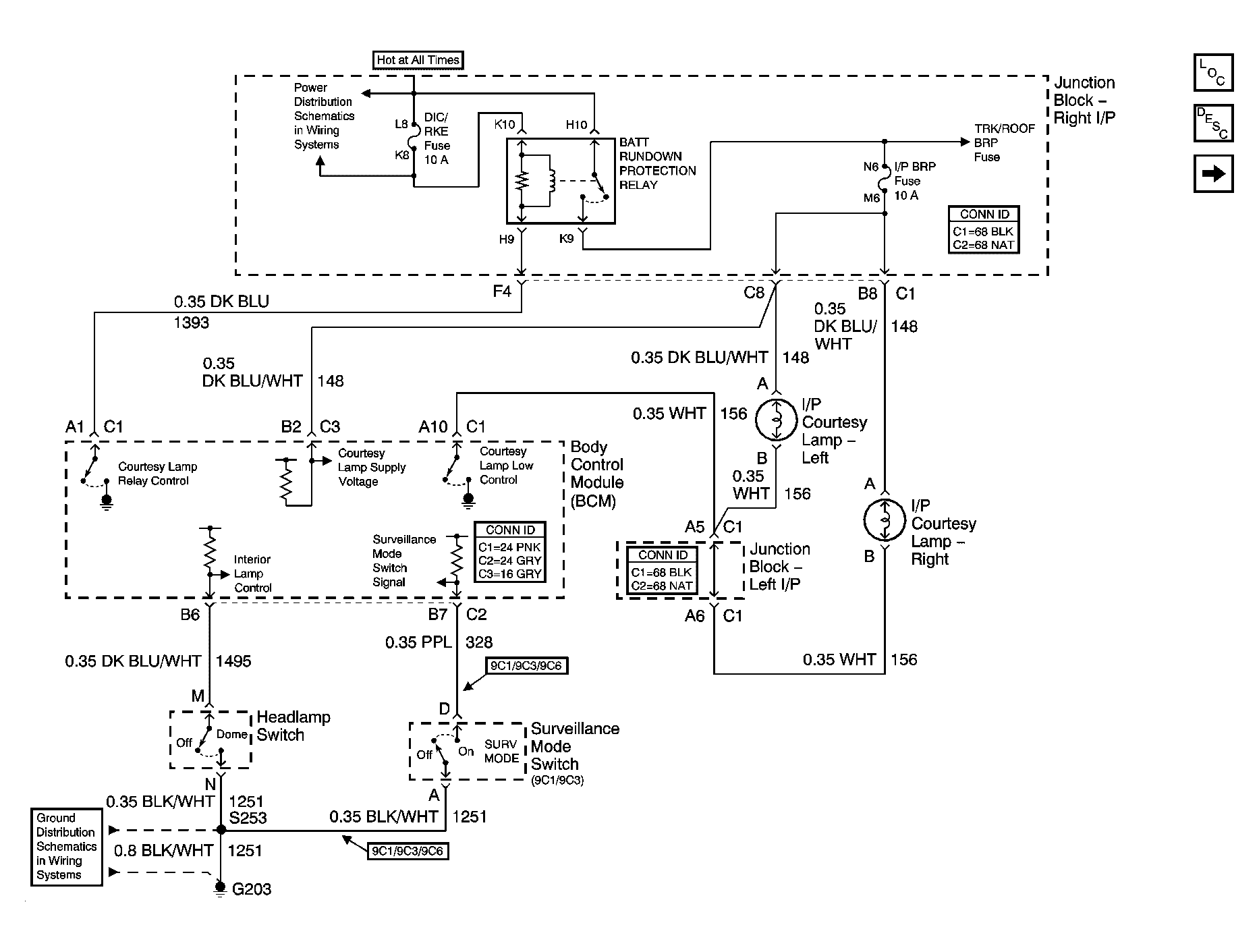

Fig 1: Courtesy Lamps Control & I/P Schematic (Early Production)

Courtesy of GENERAL MOTORS CORP.

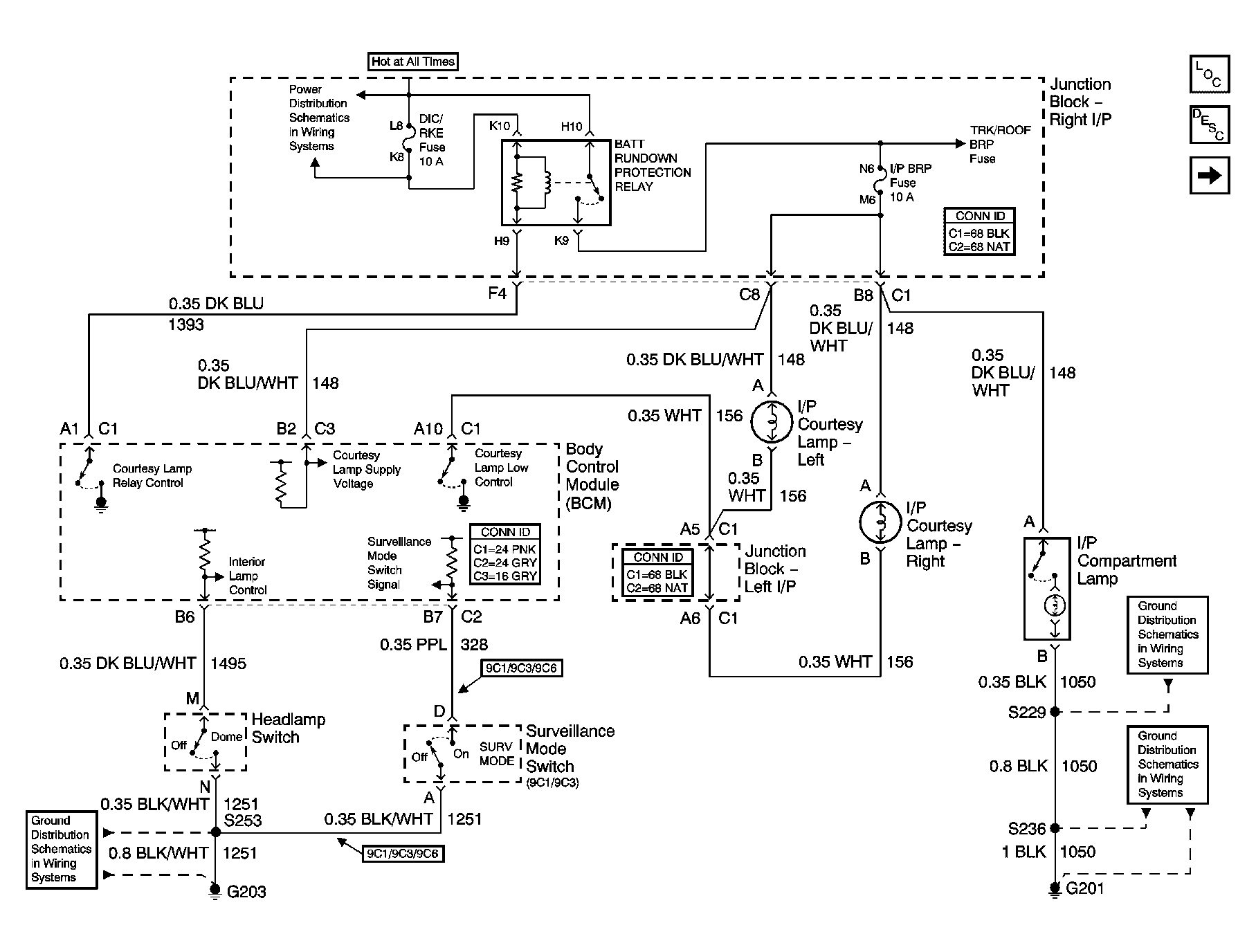

Fig 2: Courtesy Lamps Control & I/P Schematic (Late Production)

Courtesy of GENERAL MOTORS CORP.

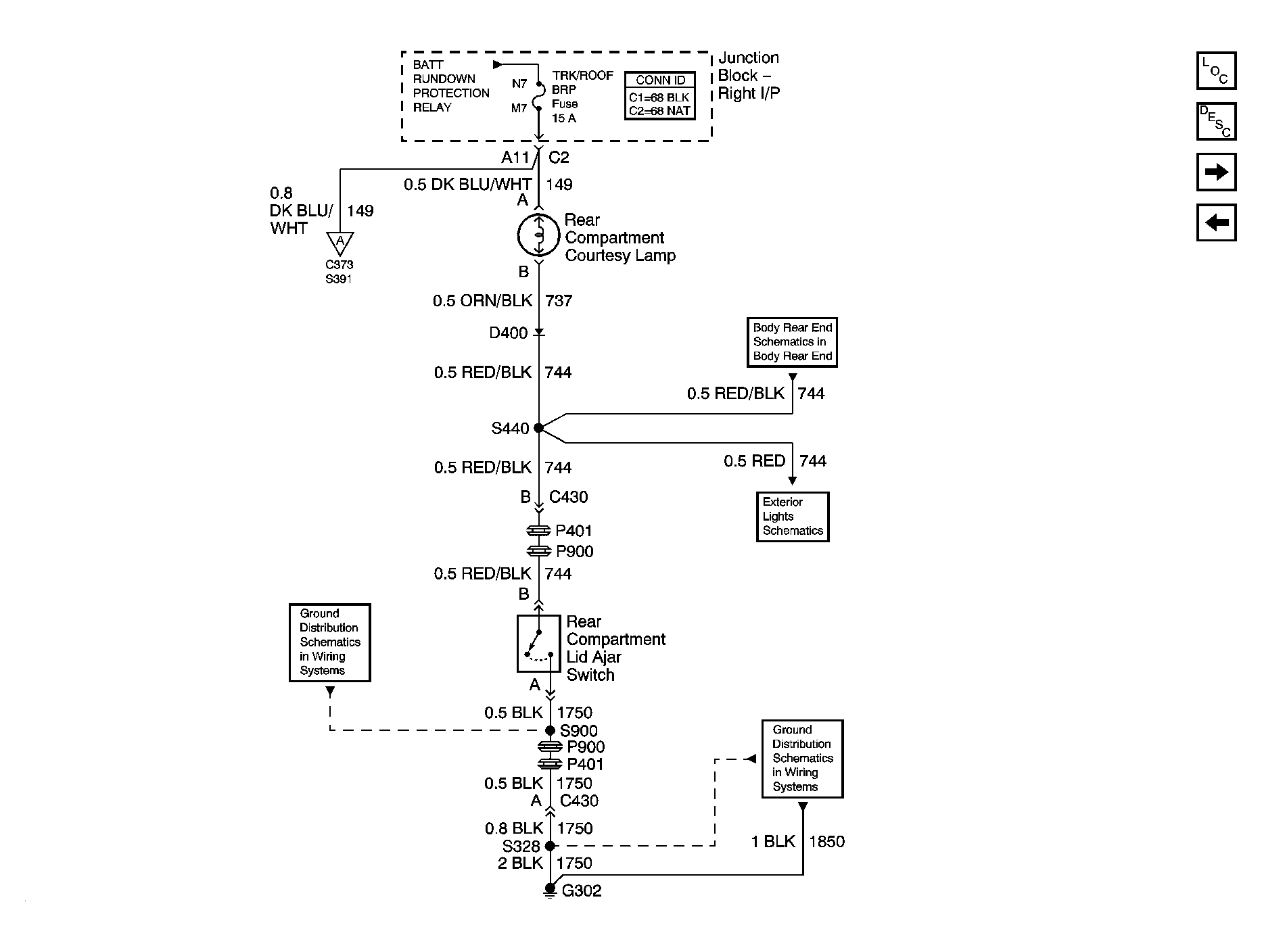

Fig 3: Rear Compartment Schematic

Courtesy of GENERAL MOTORS CORP.

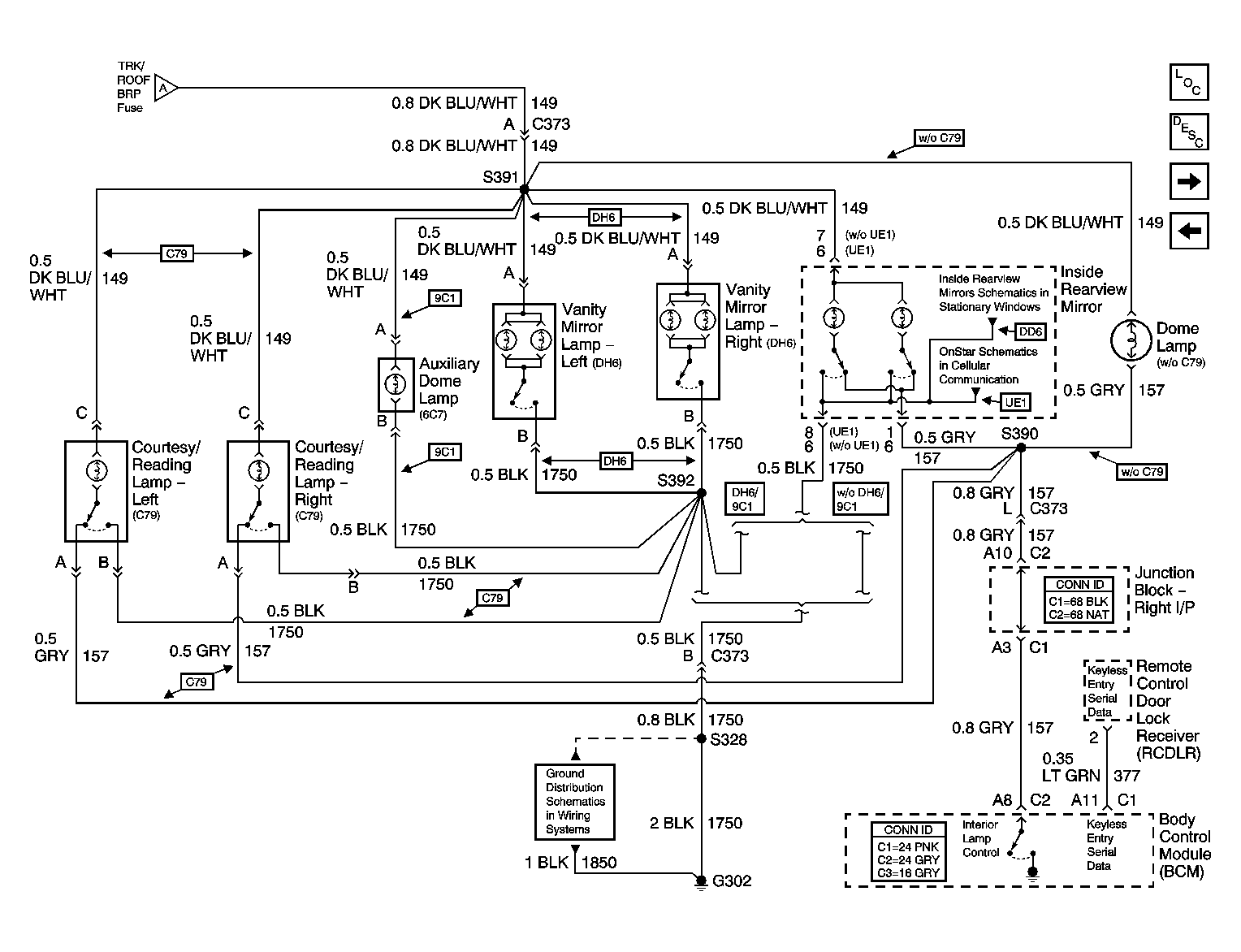

Fig 4: Roof Lighting Schematic

Courtesy of GENERAL MOTORS CORP.

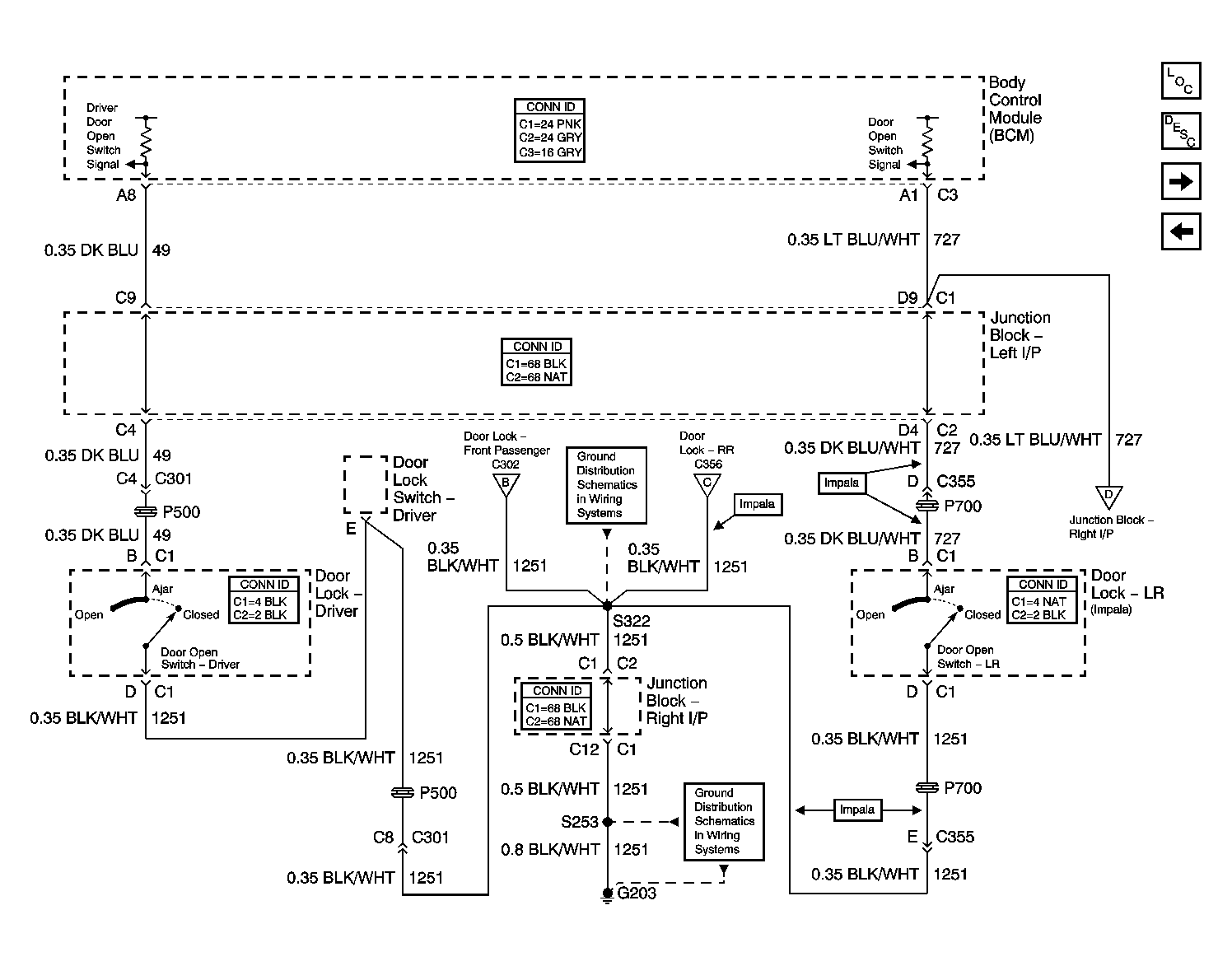

Fig 5: Door Open Switches Schematic (Left)

Courtesy of GENERAL MOTORS CORP.

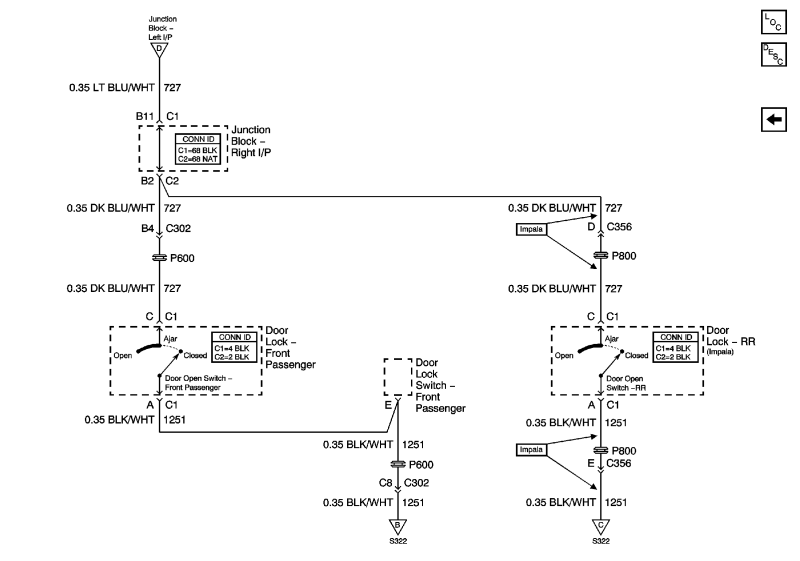

Fig 6: Door Open Switches Schematic (Right)

Courtesy of GENERAL MOTORS CORP.
