Chevrolet
>>
2002
>>
Impala LS
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Horn System
>>
Component Locator
>>
Horns Connector End Views
Horns Connector End Views

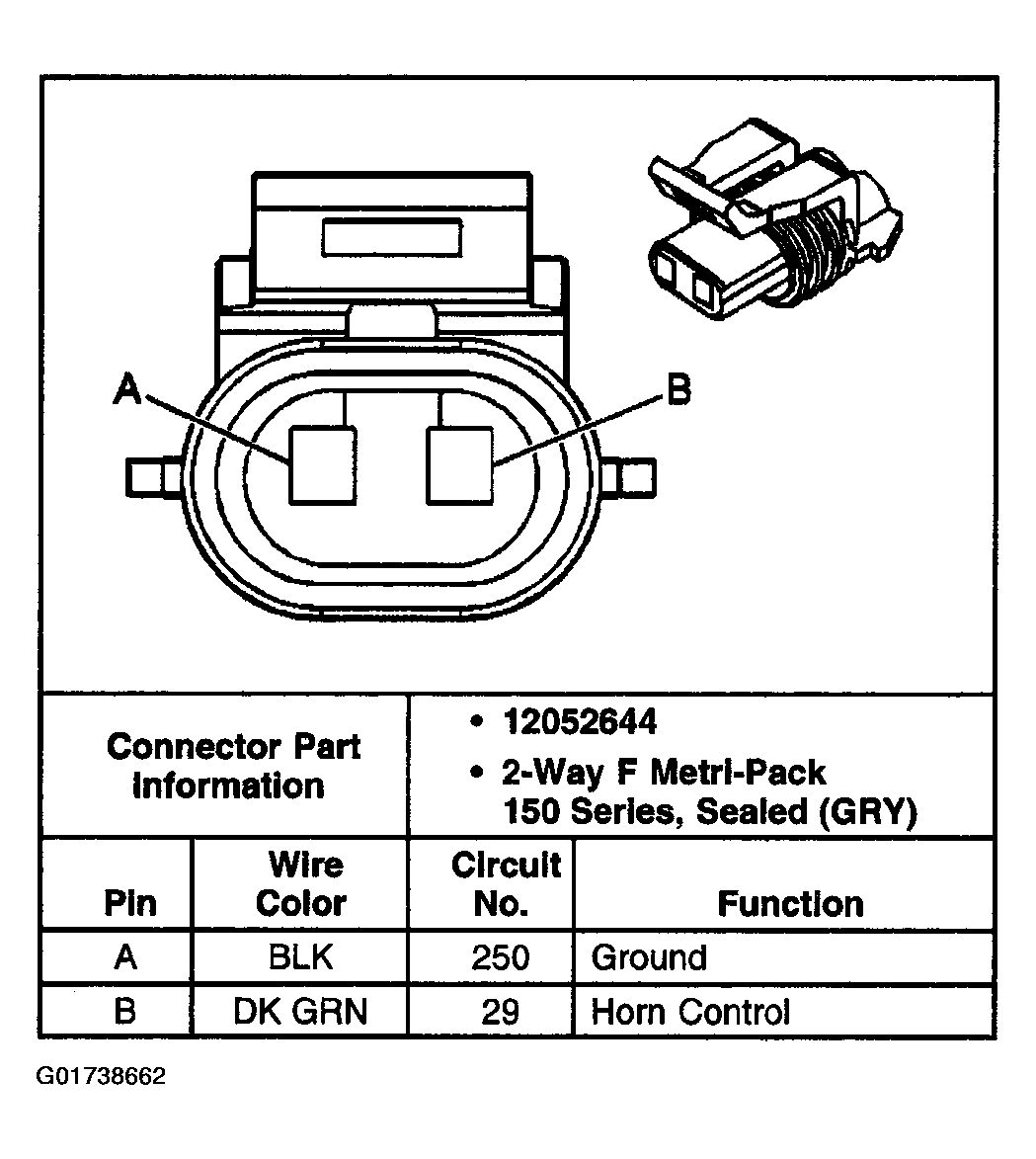

Fig 1: Identifying Horn Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
