Transaxle In-Line Harness 20-Way Connector End View

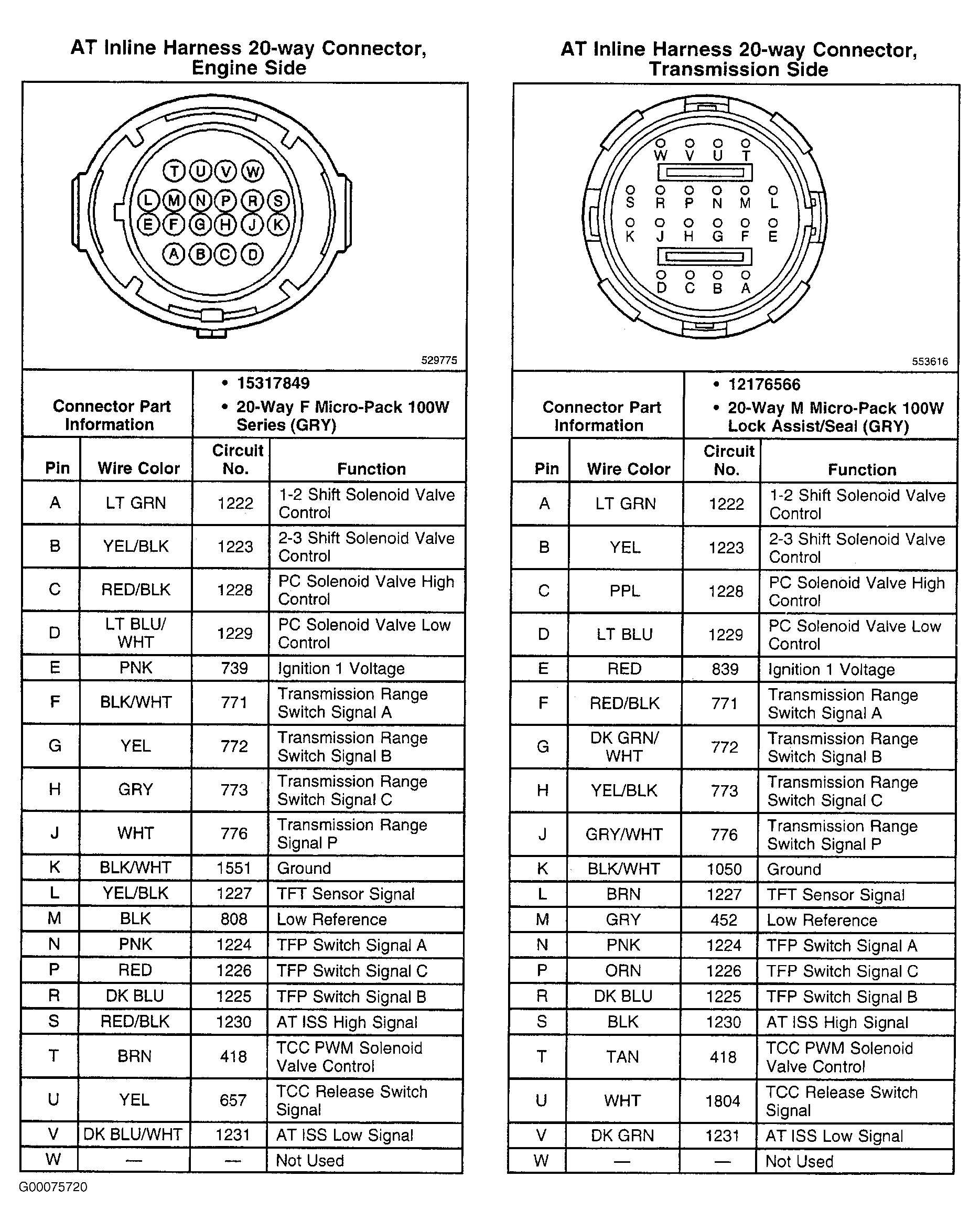

Fig 1: Transaxle In-Line Harness 20-Way

G00075720

Courtesy of GENERAL MOTORS CORP.
