Surveillance Mode Switch Connector End View

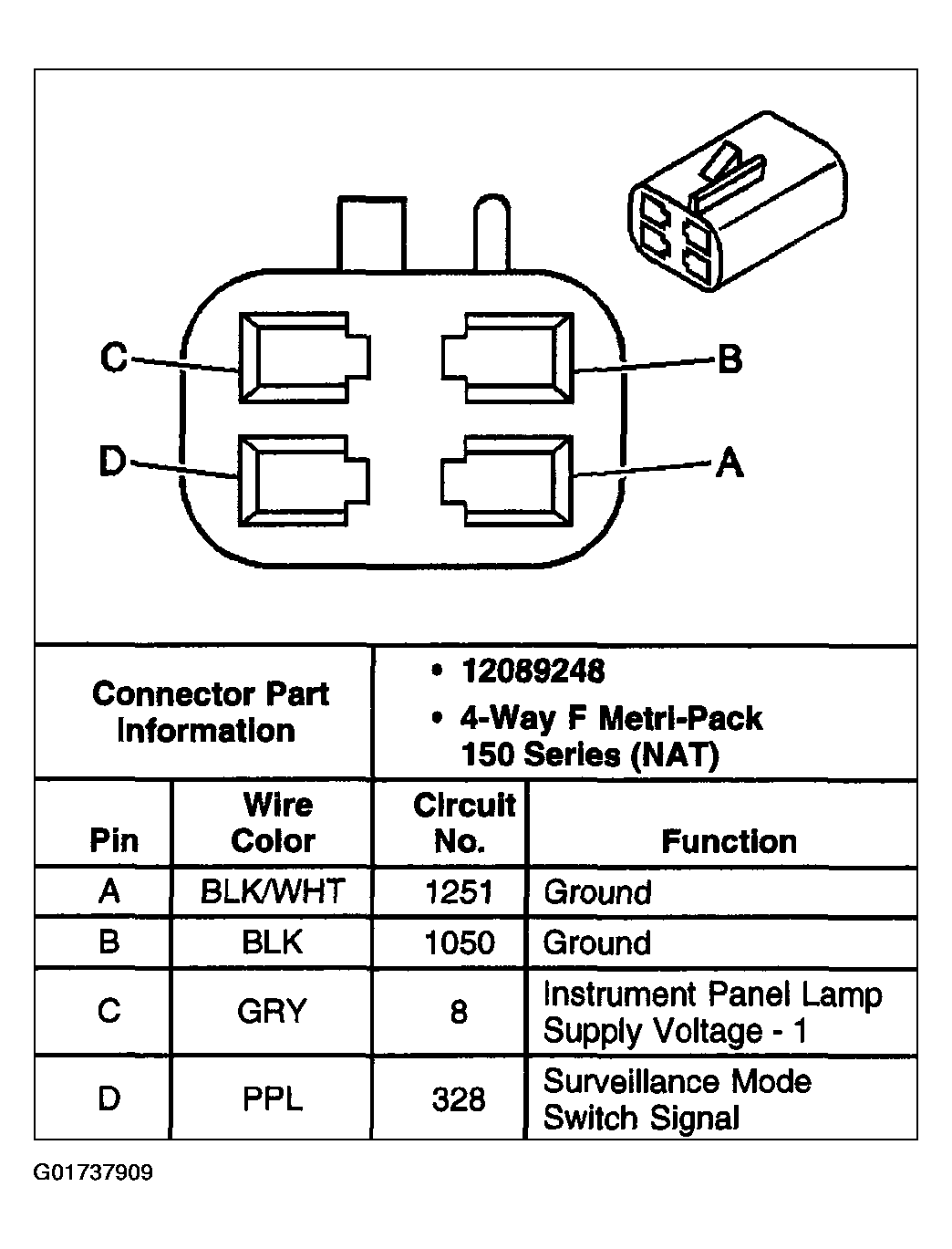

Fig 1: Surveillance Mode Switch

G01737909

Courtesy of GENERAL MOTORS CORP.
