Removal Procedure

Important:  The rear wheel speed sensors and rings are integral with the hub and bearing assemblies.

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR .

1. Raise and support the vehicle on a suitable hoist.
2. Remove the rear tire and wheel assembly.
3. Disconnect the electrical connector from the rear wheel speed sensor.

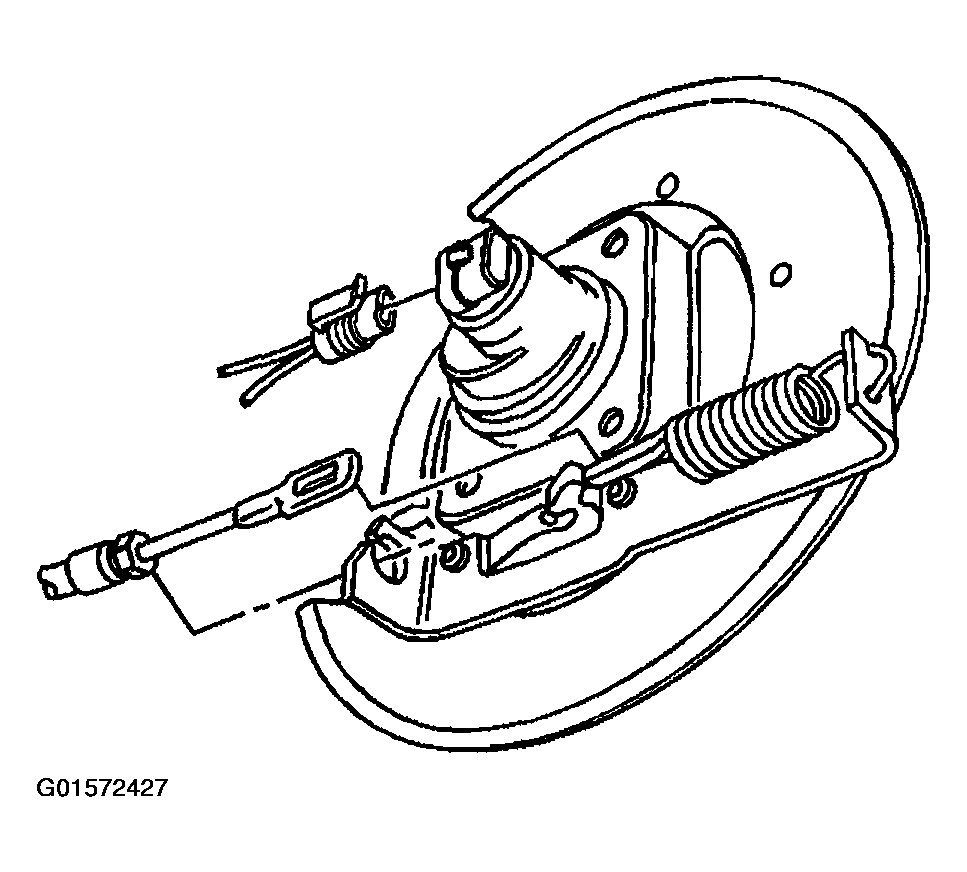

   Fig 1: Rear Wheel Speed Sensor

   Courtesy of GENERAL MOTORS CORP.
4. Remove the hub and bearing assembly (1). Refer to WHEEL BEARING/HUB REPLACEMENT - REAR .

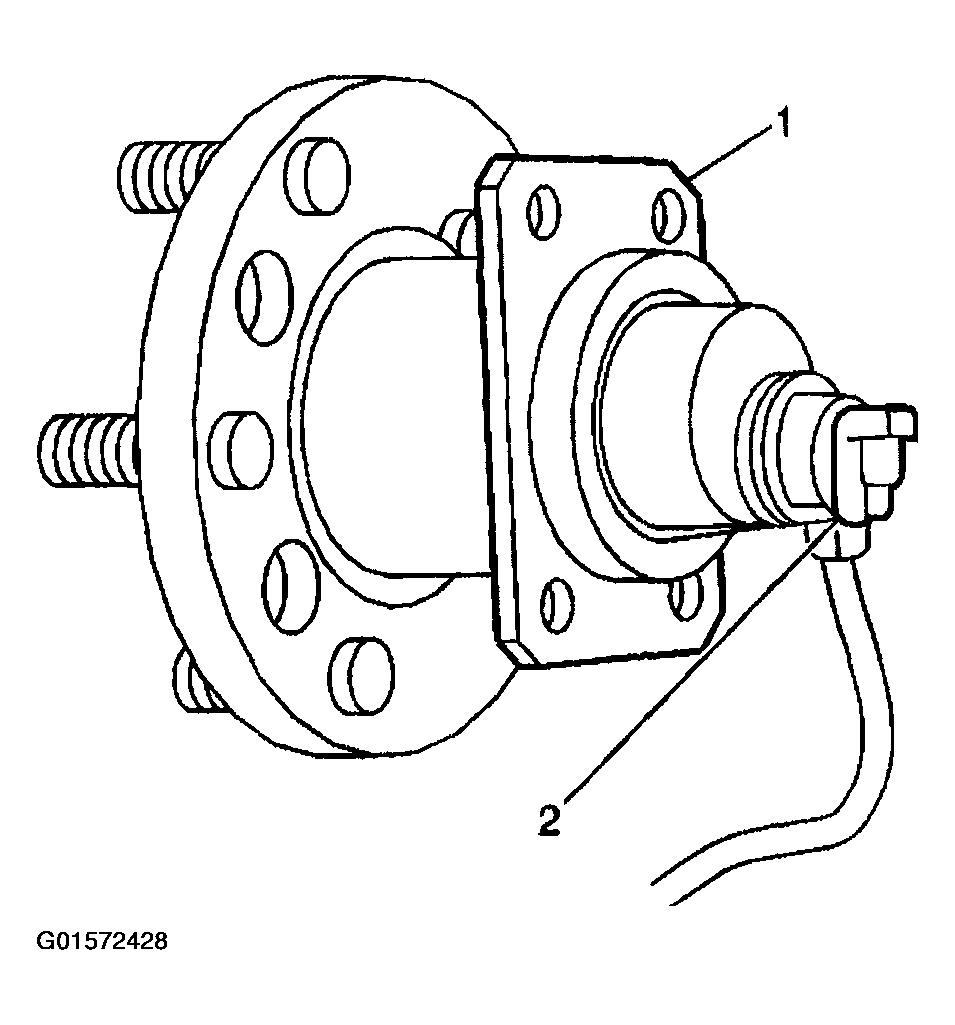

   Fig 2: Hub & Bearing Assembly

   Courtesy of GENERAL MOTORS CORP.
