Removal Procedure

  1. Apply the parking brake.
  2. Remove the center console mat.
  3. Position the transaxle shift control lever as required.
  4. Remove the front floor console trim plate screw (1).

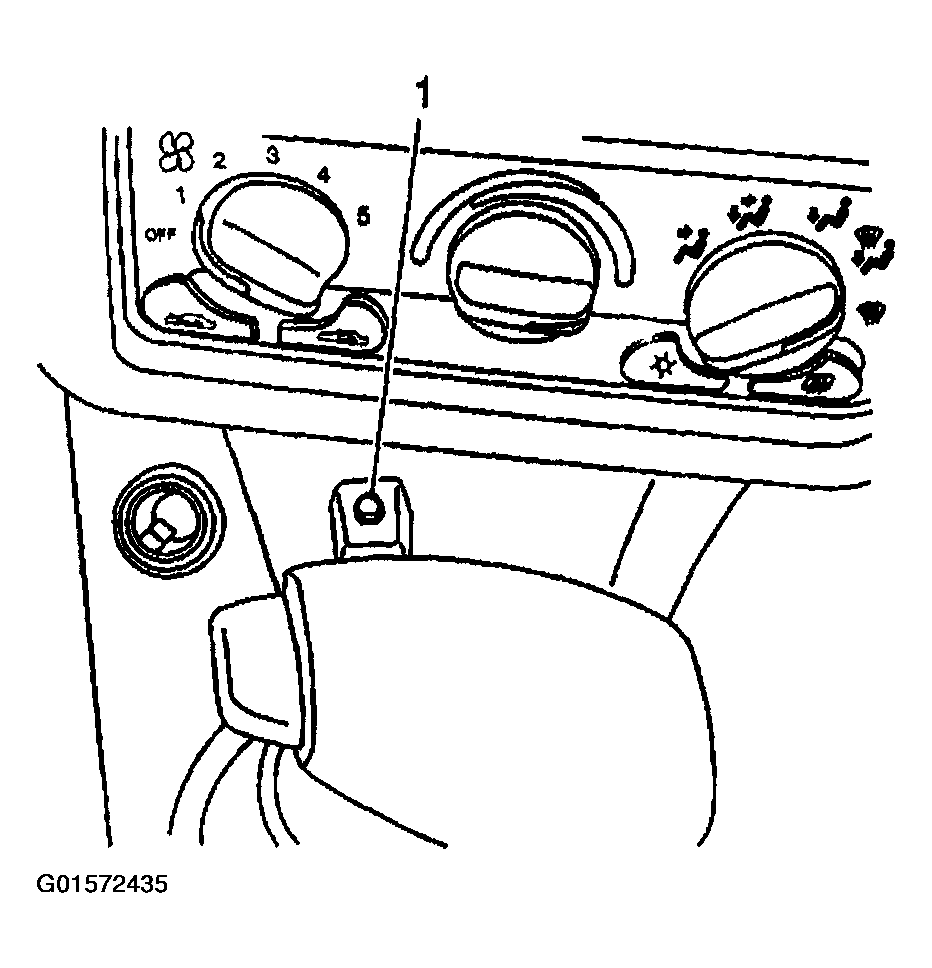

    5. Fig 1: Locating Front Floor Console Trim Plate Screw
    G01572435Courtesy of GENERAL MOTORS CORP.
  5. Lift the front floor console trim plate up and rearward for access to the traction control switch.
  6. Disconnect the electrical connector from the traction control switch.
  7. Remove the traction control switch from the floor console trim plate.

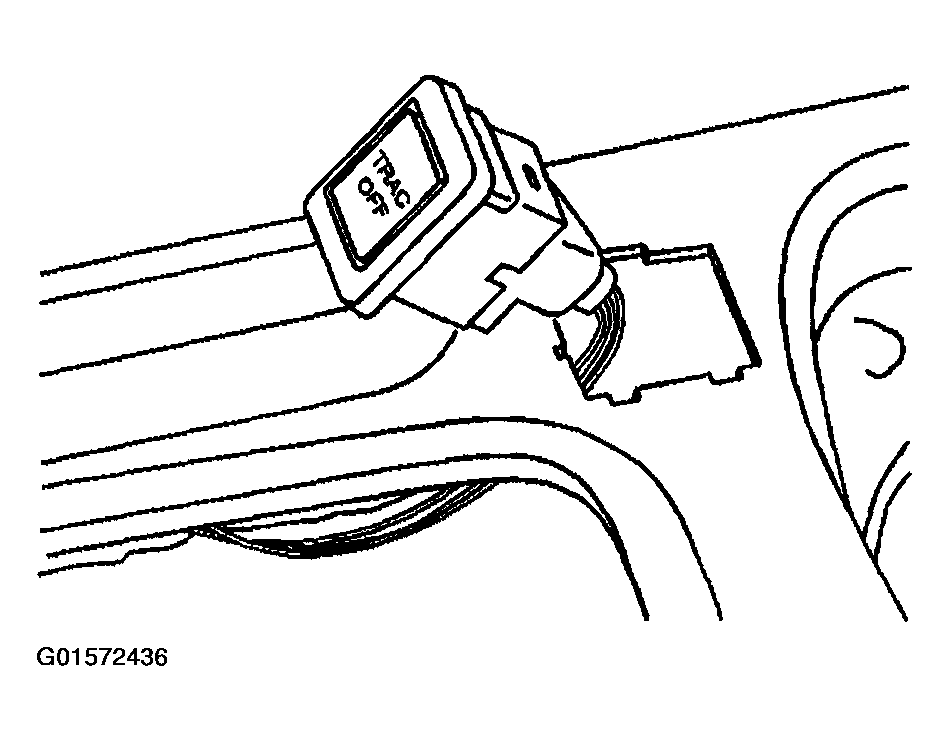

    Fig 2: Traction Control Switch
    G01572436Courtesy of GENERAL MOTORS CORP.
