Removal Procedure

  1. If equipped with column shift, apply the parking brake.
  2. If equipped with column shift, position the transaxle shift control indicator to 1.
  3. Adjust the steering wheel for access.
  4. Remove the ignition switch cylinder bezel.
  5. Remove the LH instrument panel (IP) fuse block access opening cover.
  6. Remove the LH IP cluster trim plate screws.
  7. Remove the IP cluster trim plate for access. Start at the left side of the IP cluster trim plate, grasp the trim plate and carefully pull rearward. Disengage enough IP cluster trim plate retainers in order to gain access the traction control switch.

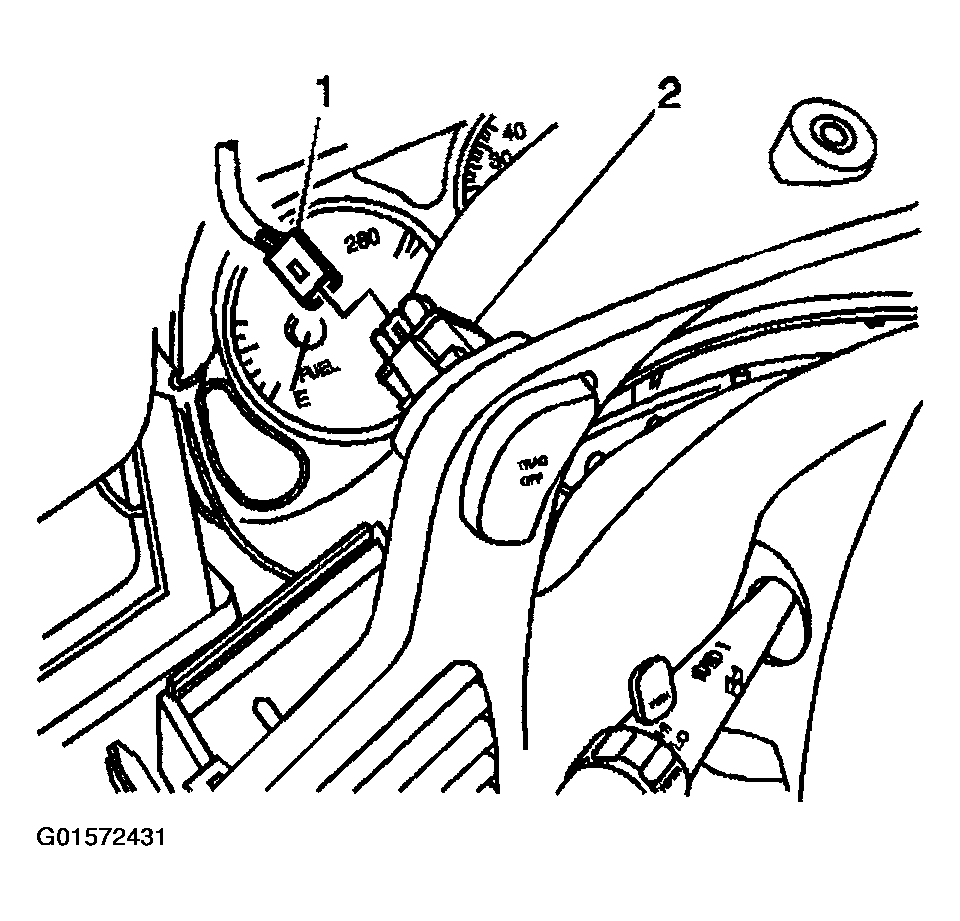

  8. Disconnect the electrical connector (1) from the traction control switch (2).
    Fig 1: Traction Control Switch Electrical Connector
    G01572431Courtesy of GENERAL MOTORS CORP.

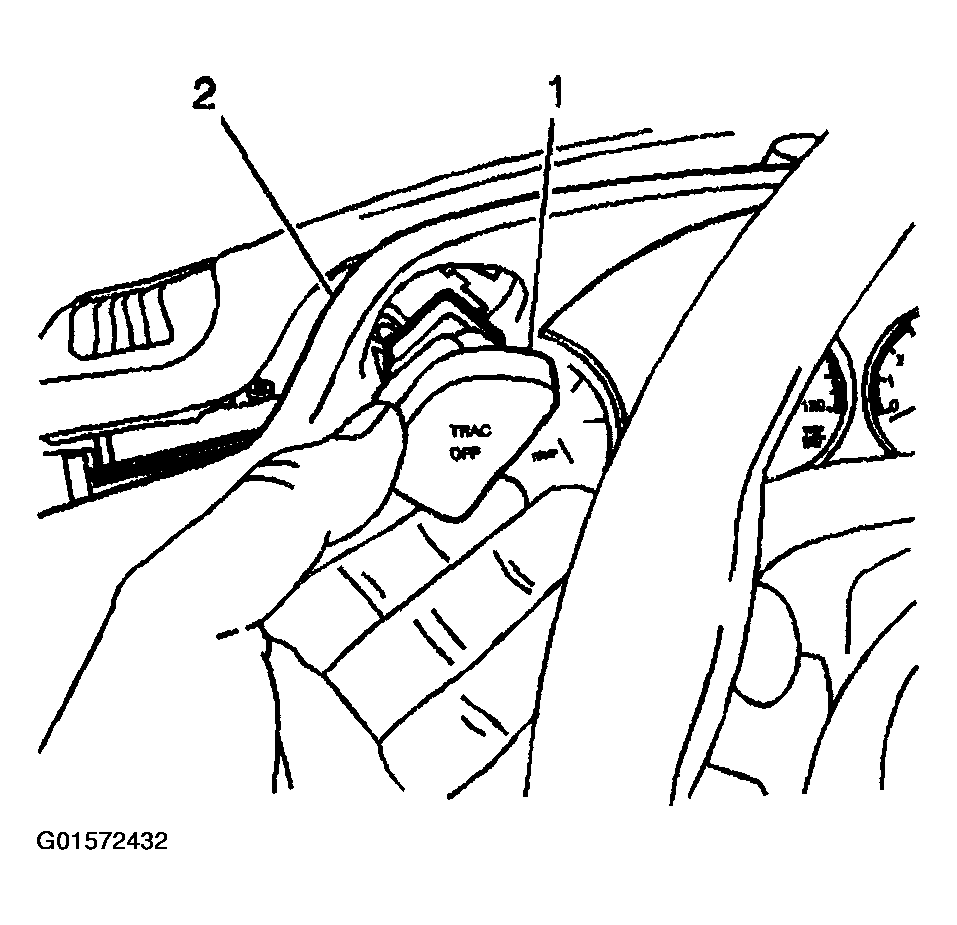

  9. Remove the traction control switch (1) from the IP cluster trim plate (2).
    Fig 2: Traction Control Switch
    G01572432Courtesy of GENERAL MOTORS CORP.
