Installation Procedure
- Install EBCM onto the BPMV (1) if replacing the BPMV only. Refer to Electronic Brake Control Module (EBCM) Replacement .

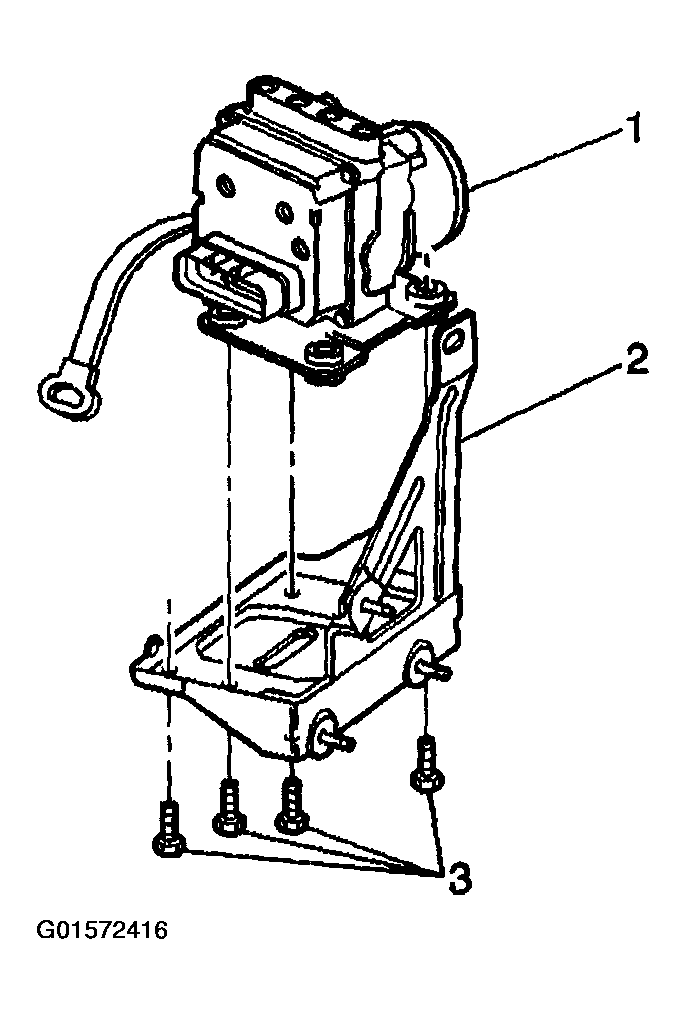

- Install BPMV and EBCM as an assembly (1) to the mounting bracket (2).
- Install the 4 bolts (3) that connects the BPMV assembly (1) to the mounting bracket (2). Tighten the 4 bolts (3) that connect the BPMV (1) to the mounting bracket (2) to 10 N.m (89 lb in).
- Install the BPMV bracket (4) to the strut tower.
- Install the 1 bolt and 3 nuts that attach the BPMV mounting bracket (4) to the strut tower.
- Tighten the lower 2 BPMV mounting bracket nuts (3) and bolt to 10 N.m (84 lb in).
- Tighten the top nut (1) for BPMV mounting bracket (4) to strut tower to 3 N.m (27 lb in).
CAUTION: Make sure brake pipes are correctly connected to brake pressure modulator valve. If brake pipes are switched by mistake, wheel lockup will occur and personal injury may result. The only two ways this condition can be detected are by using a Scan Tool or by doing an Anti-Lock stop.Important: If a new BPMV is being installed, remove the shipping plugs from the valve openings during the next few steps when ready.

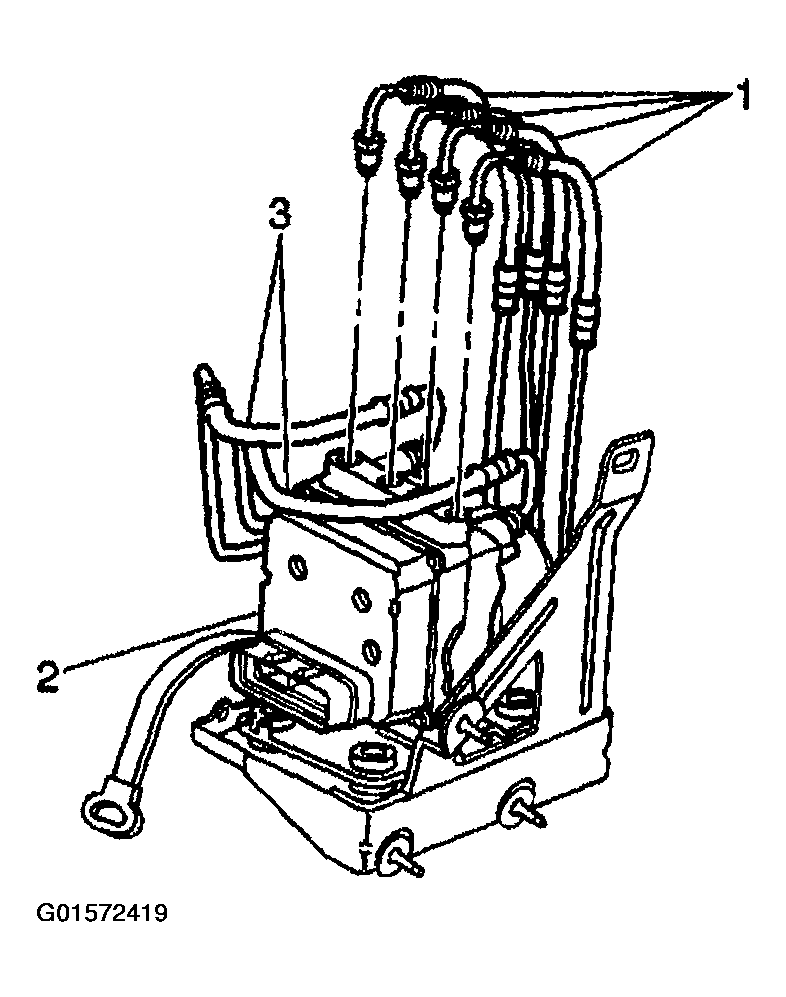

- Install the master cylinder brake pipes (2) into the BPMV (4). Tighten the master cylinder brake pipe fittings to 24 N.m (18 lb ft).
- Install the brake pipes (1) on the BPMV (2). Tighten all 4 brake pipe fittings to 24 N.m (18 lb ft).
- Reconnect the ground strap between the EBCM assembly and the chassis.
- Connect the EBCM harness connector.
- Push down lock tab (1) and then move sliding connector cover (2) back in home position to lock.
- Insert red locking tab back in place.
- Reinstall the cruise control module.
- When all procedures have been completed, the automated ABS bleed procedure is required. Refer to ABS Automated Bleed Procedure .
