Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.

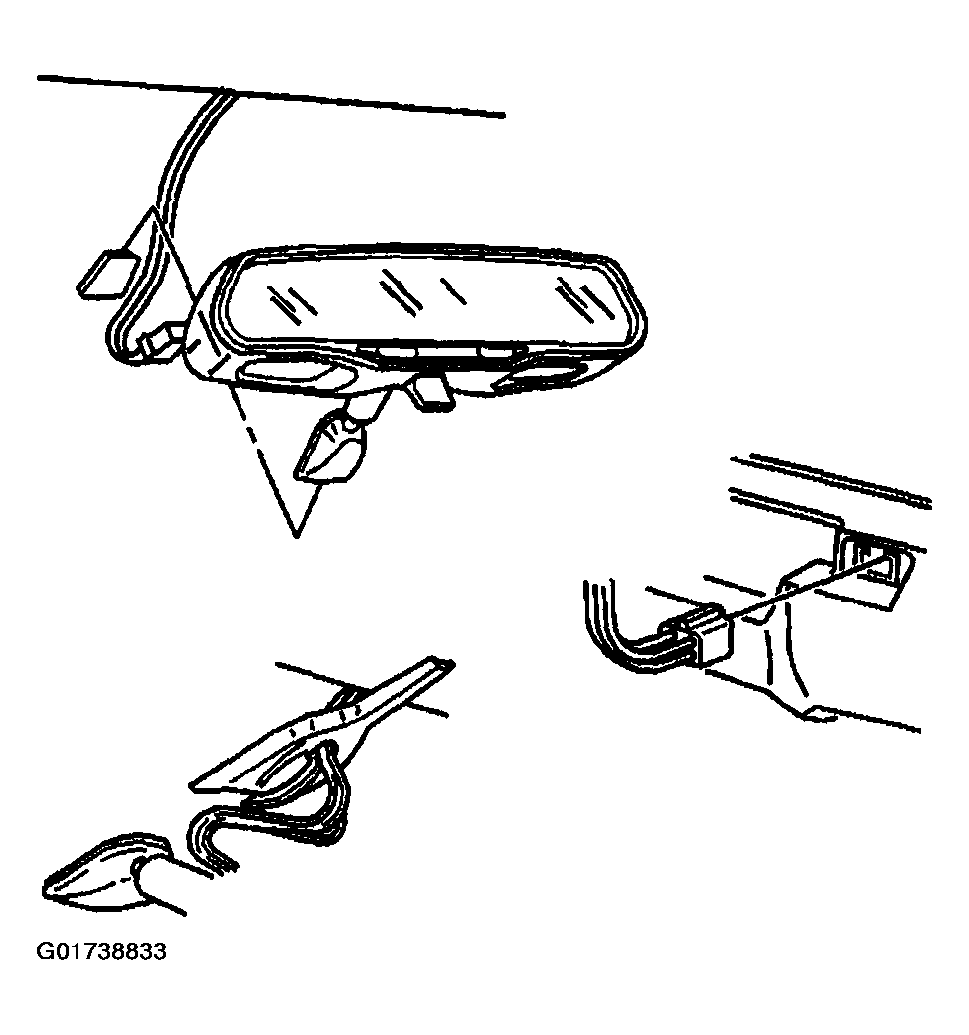

    Fig 1: Lighted rearview mirror wire harness
    G01738833Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the base.
  3. Slide mirror off of the support.
  4. Disconnect the electrical connector from the lighted rearview mirror, if equipped.
