Test Description

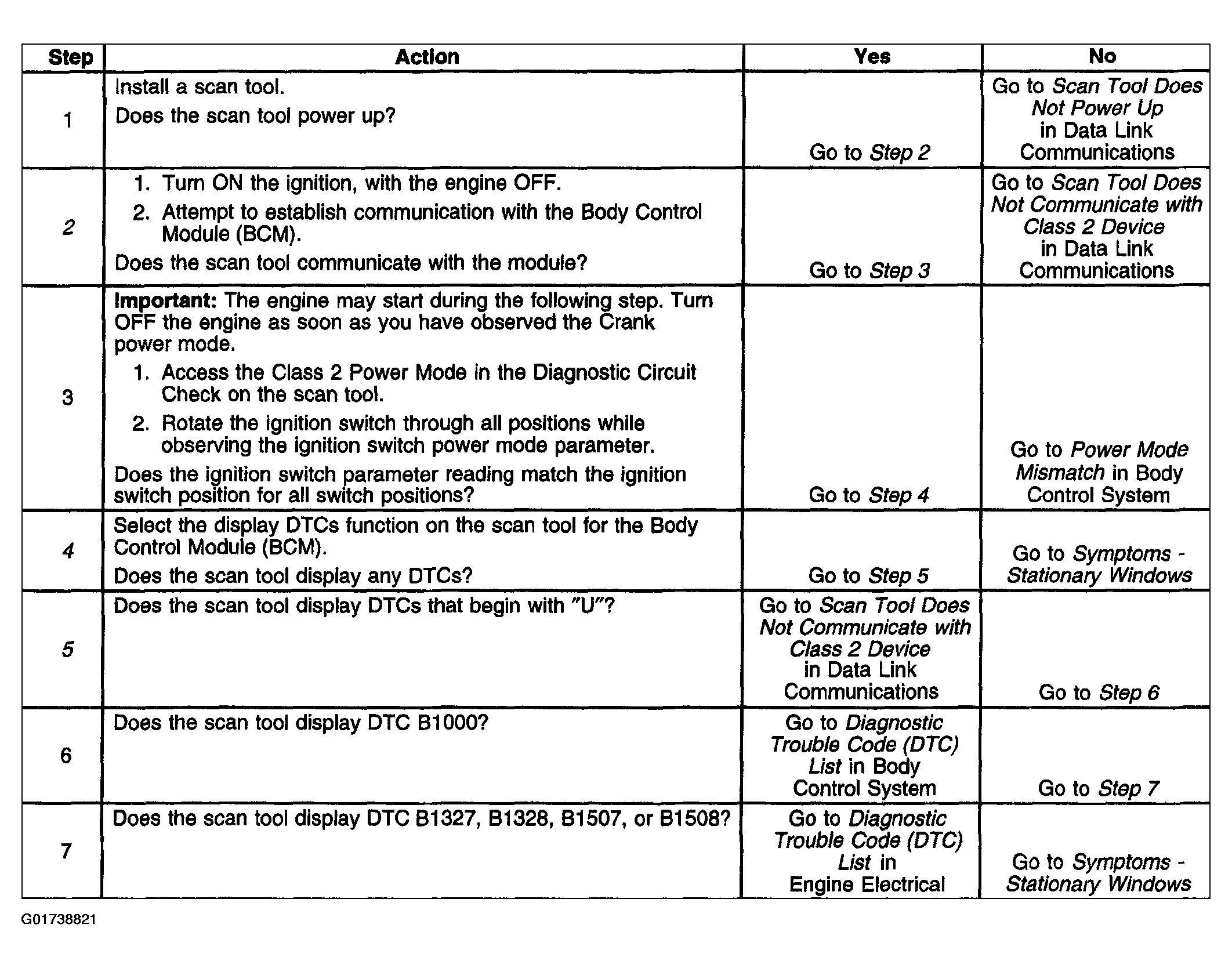

The number(s) below refer to the step number(s) on the diagnostic table.
- 2) - Lack of communication may be due to a partial malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
- 4) - The symptom table will determine the correct diagnostic procedure to use.
- 5) - The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.
