Steering Column Disassembled View (Column Shift)

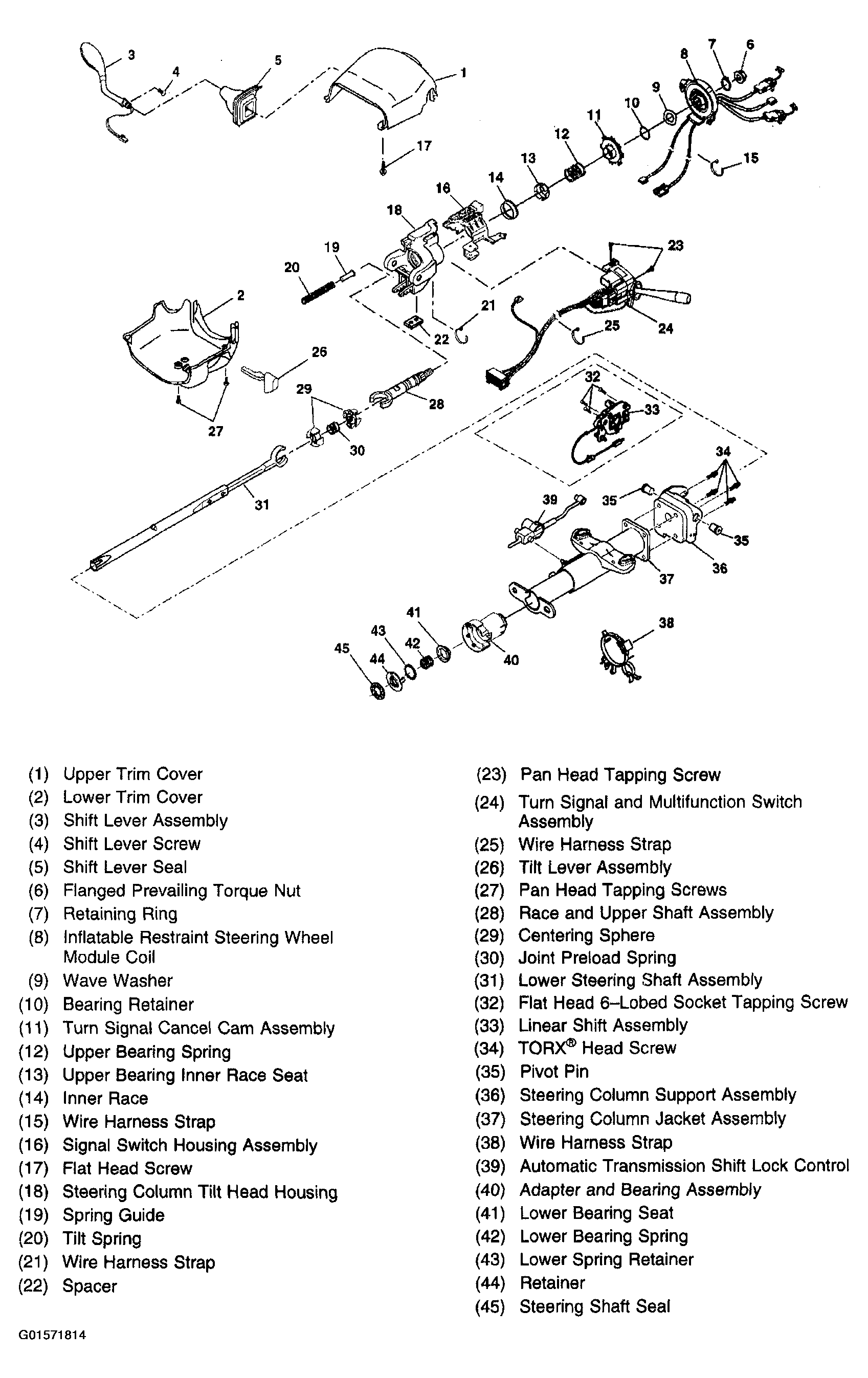

Fig 1: Locating Tilt Steering Column Components (Column Shift)

G01571814

Courtesy of GENERAL MOTORS CORP.
