OnStar® Module Connector End View C2

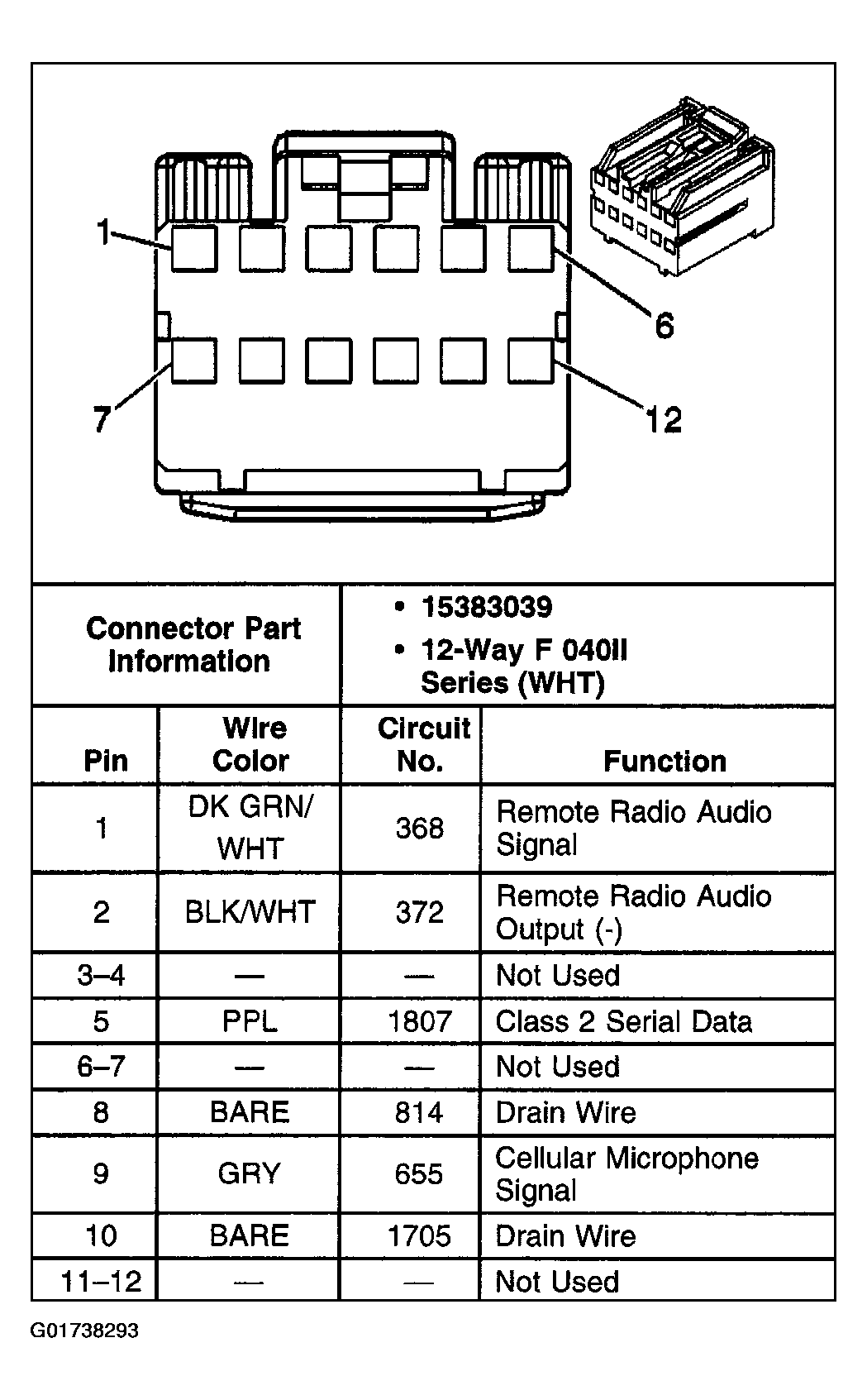

Fig 1: OnStar® Module C2

G01738293

Courtesy of GENERAL MOTORS CORP.
