HVAC Control Assembly Connector End View (C2)

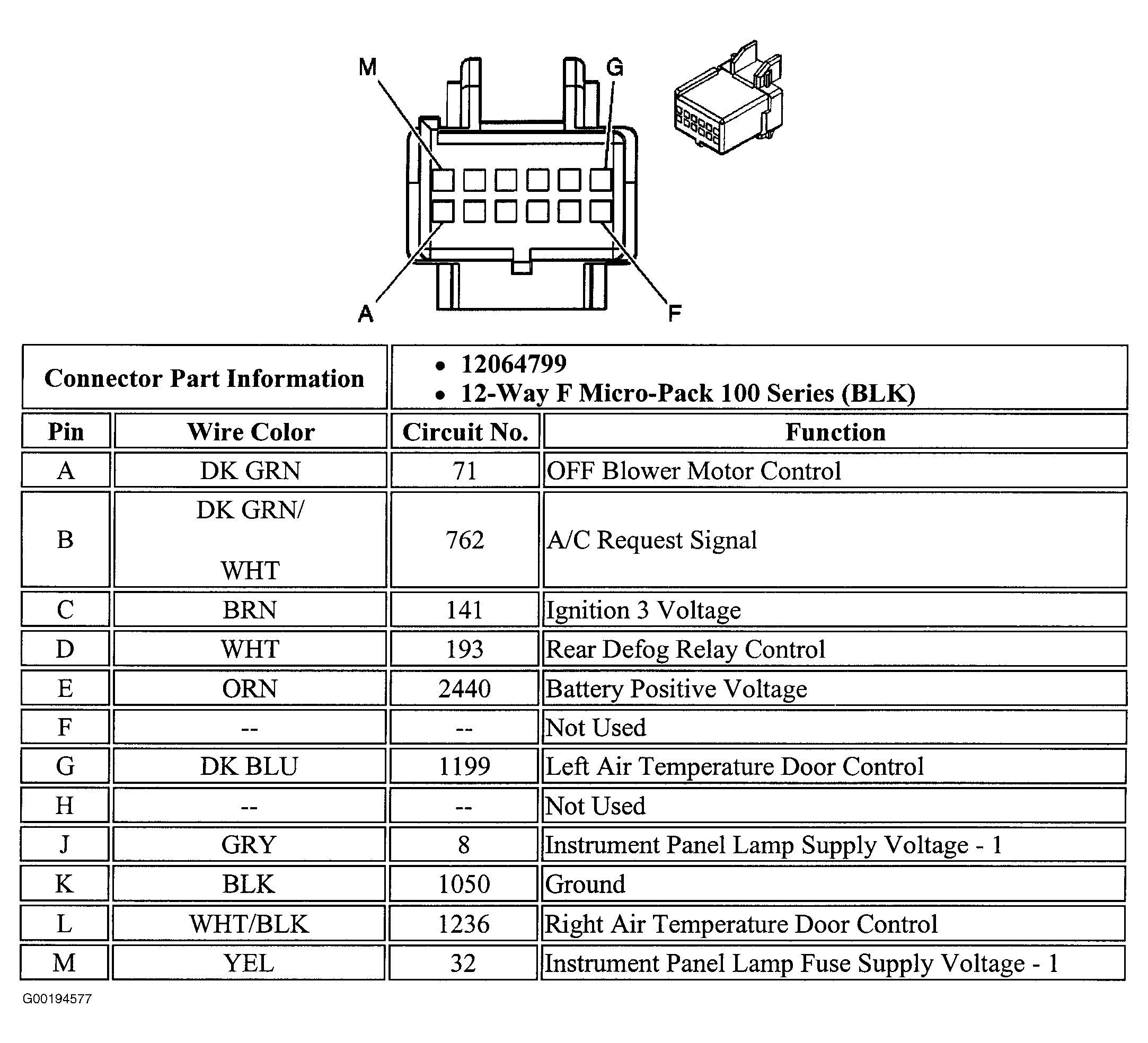

Fig 1: HVAC Control Assembly (C2)

G00194577

Courtesy of GENERAL MOTORS CORP.
