Wiper/Washer System Component Views

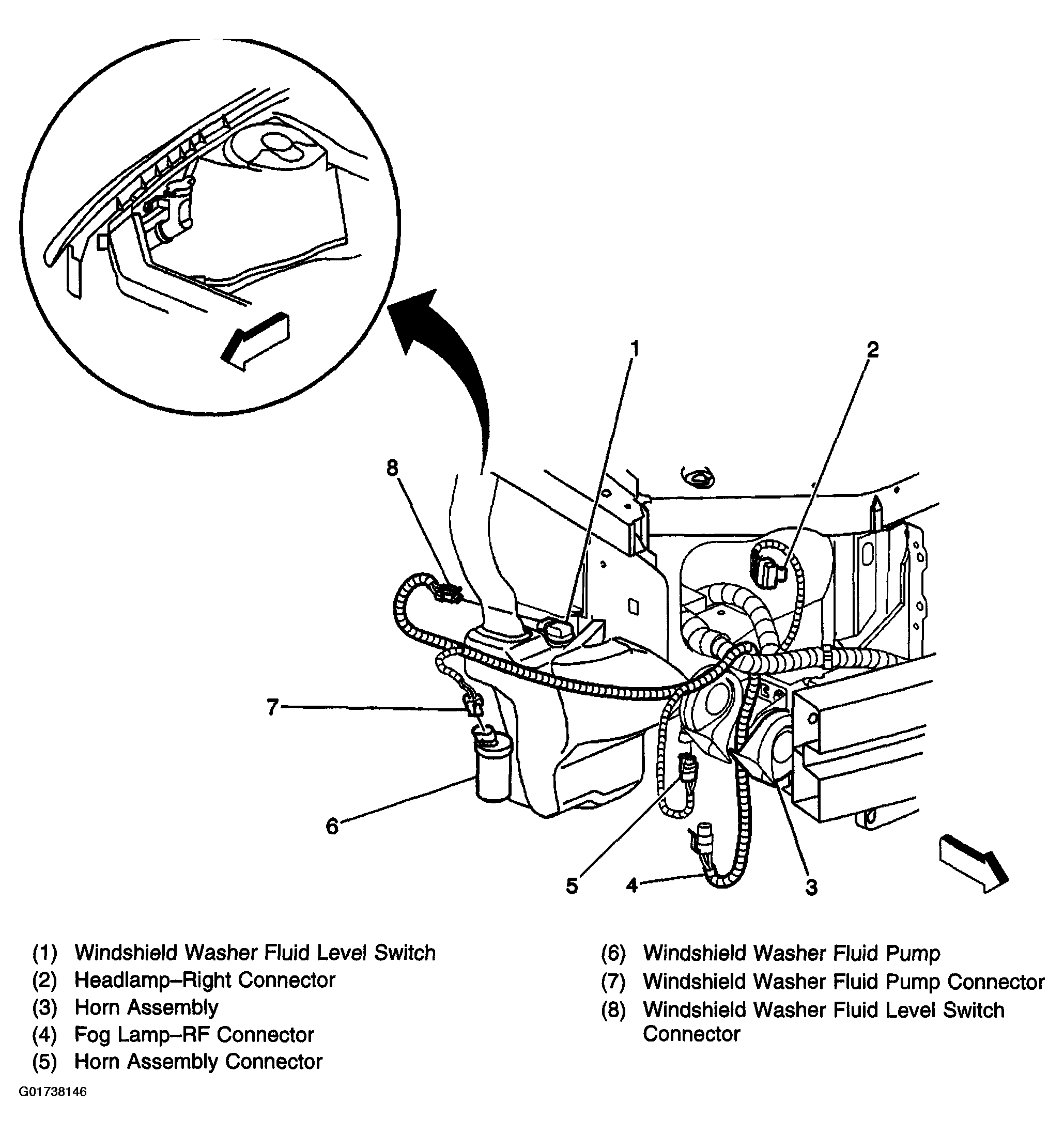

Fig 1: Locating Windshield Washer Reservoir (Right Front Of Vehicle)
G01738146Courtesy of GENERAL MOTORS CORP.

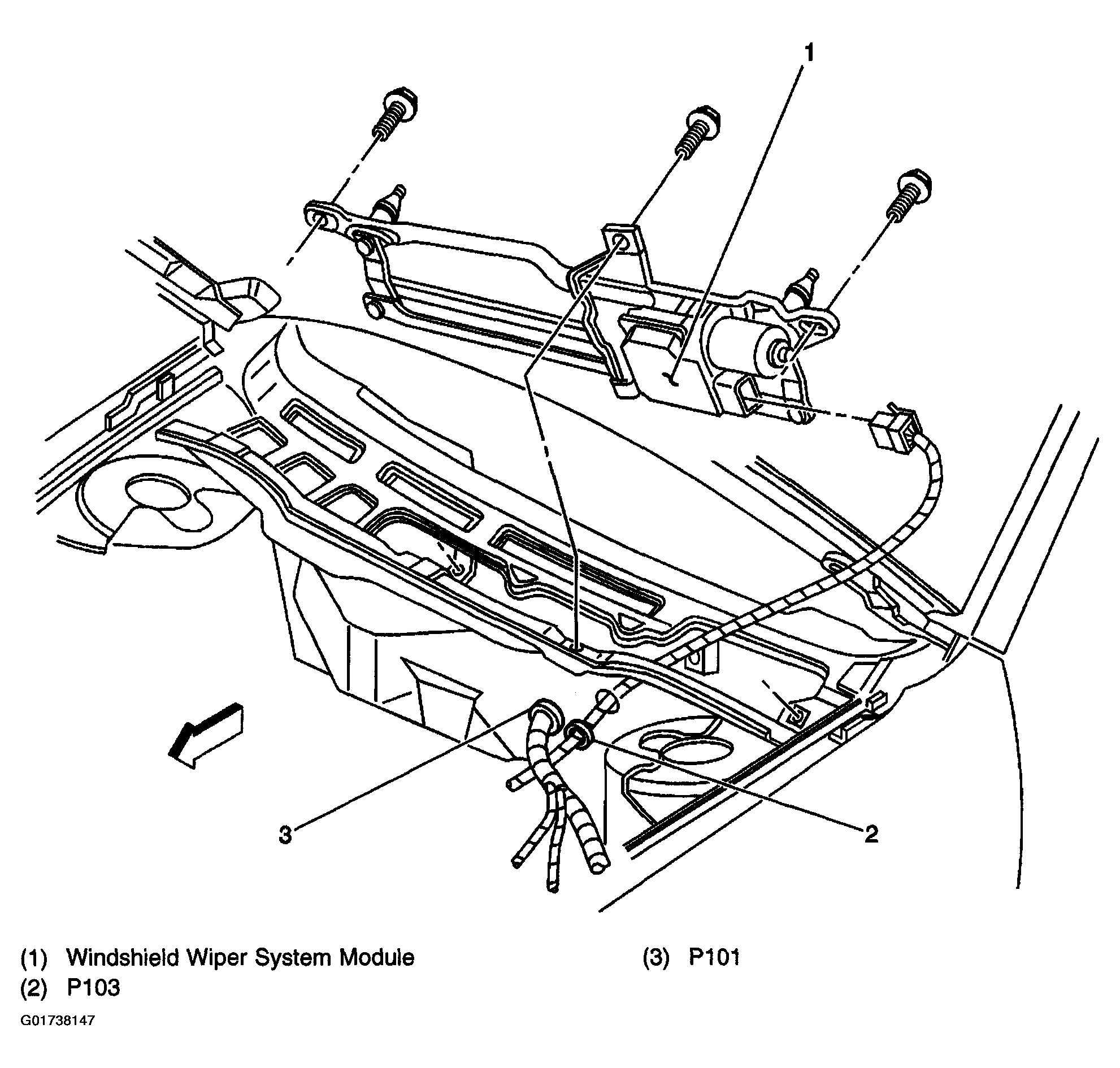

Fig 2: Locating Windshield Wiper Motor Assembly
G01738147Courtesy of GENERAL MOTORS CORP.

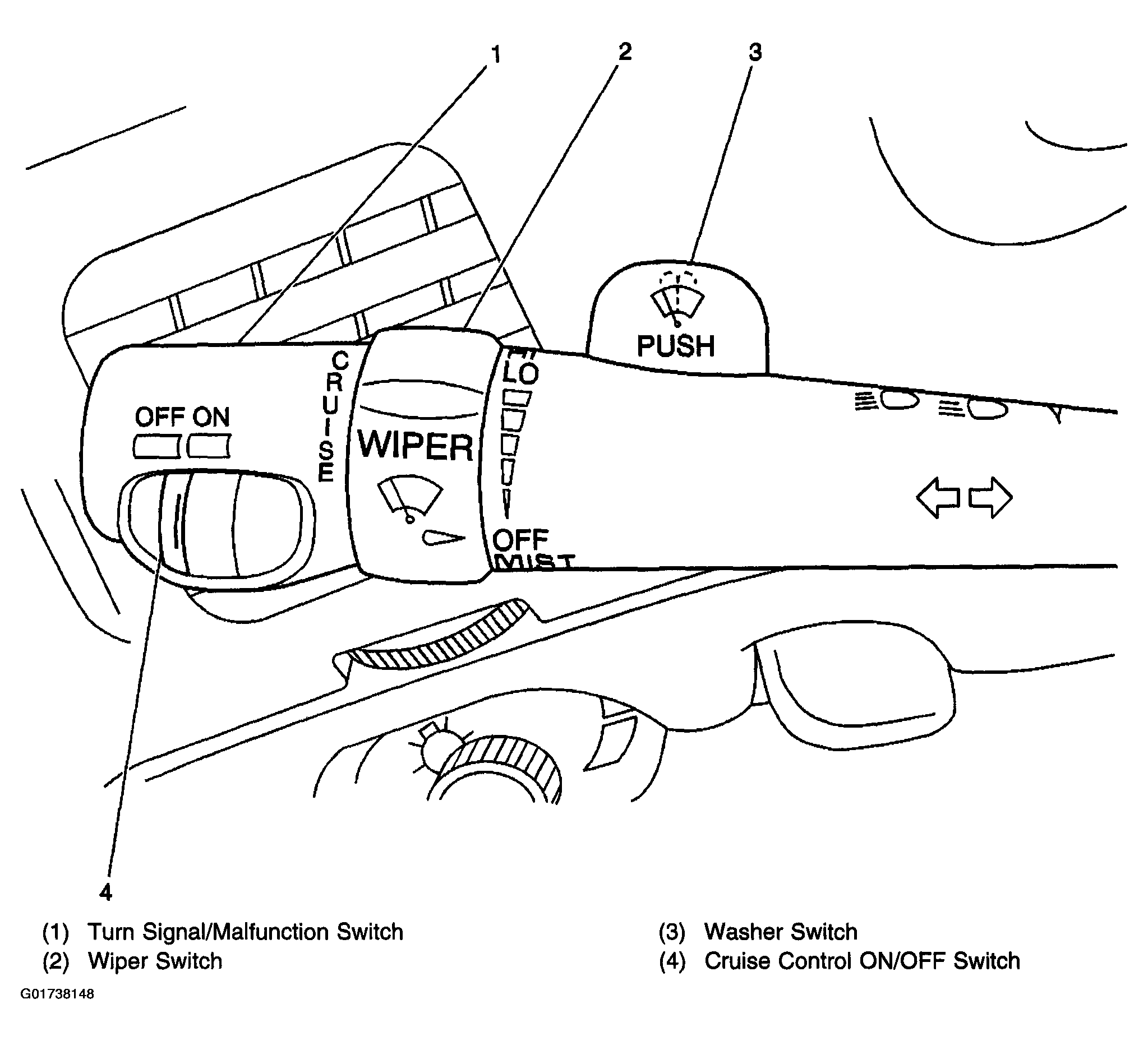

Fig 3: Turn Signal/Multifunction Switch (Impala)
G01738148Courtesy of GENERAL MOTORS CORP.

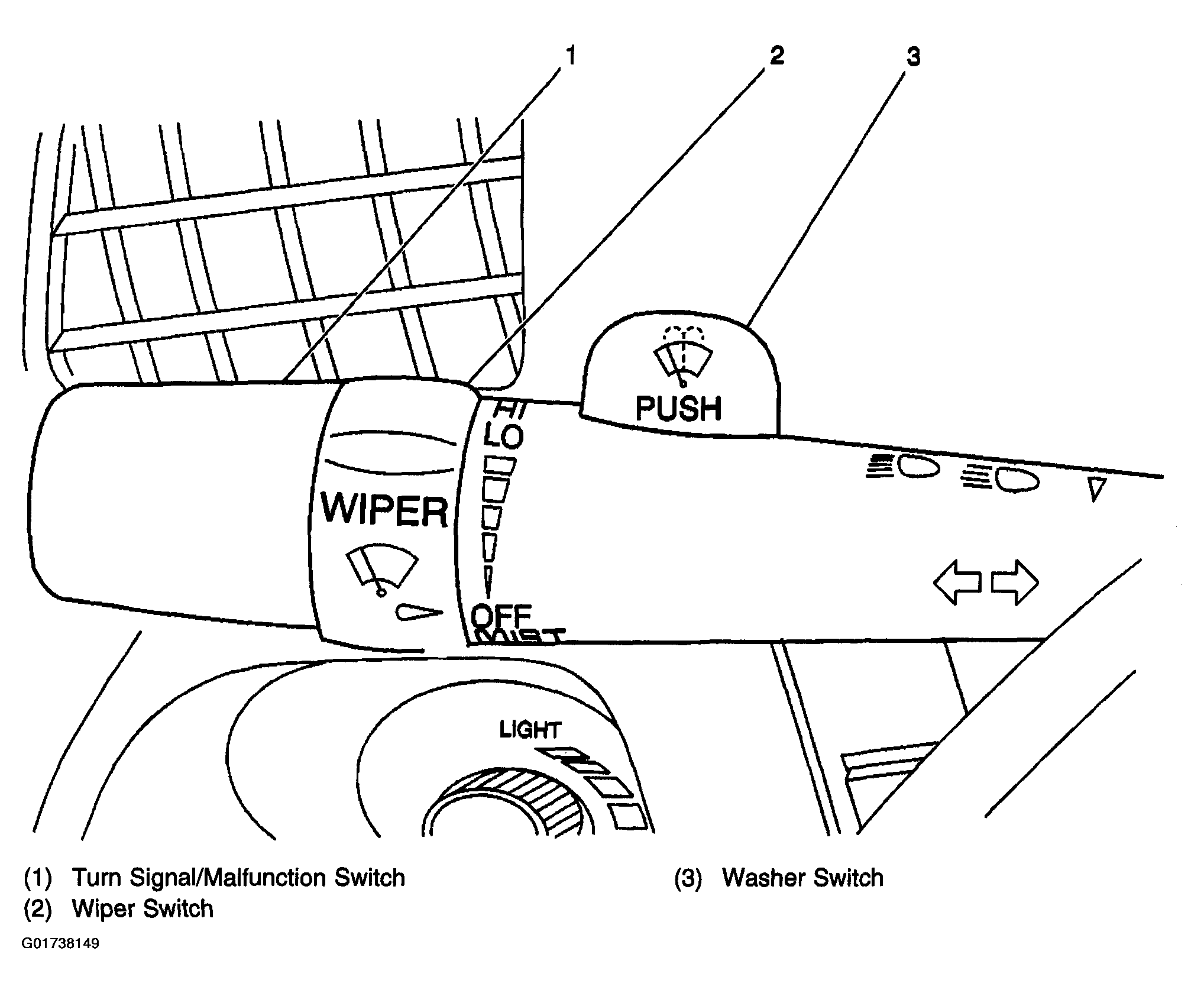

Fig 4: Turn Signal/Multifunction Switch (Monte Carlo)
G01738149Courtesy of GENERAL MOTORS CORP.
