Data Link Communications Component Views

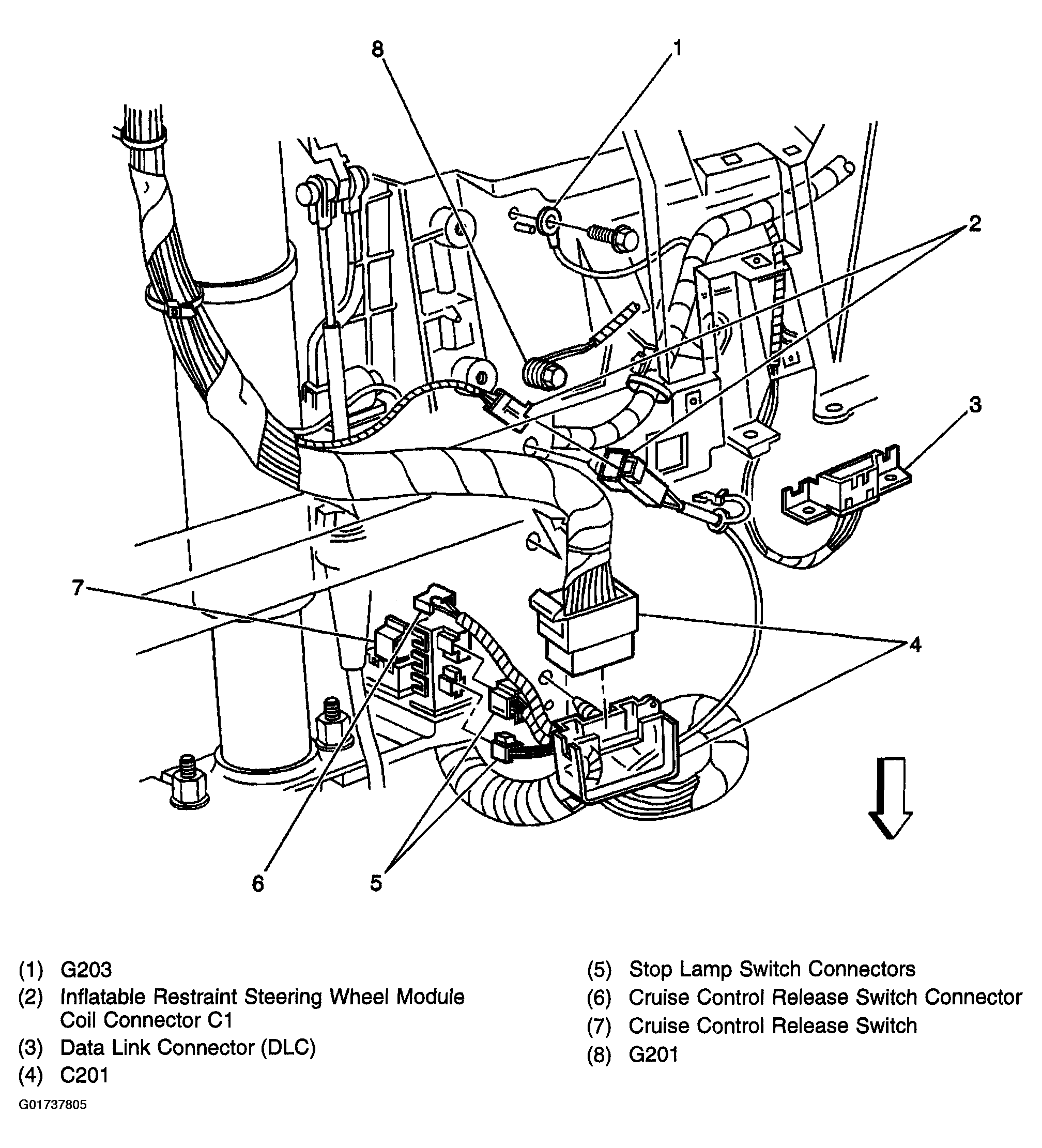

Fig 1: Locating DLC

G01737805

Courtesy of GENERAL MOTORS CORP.

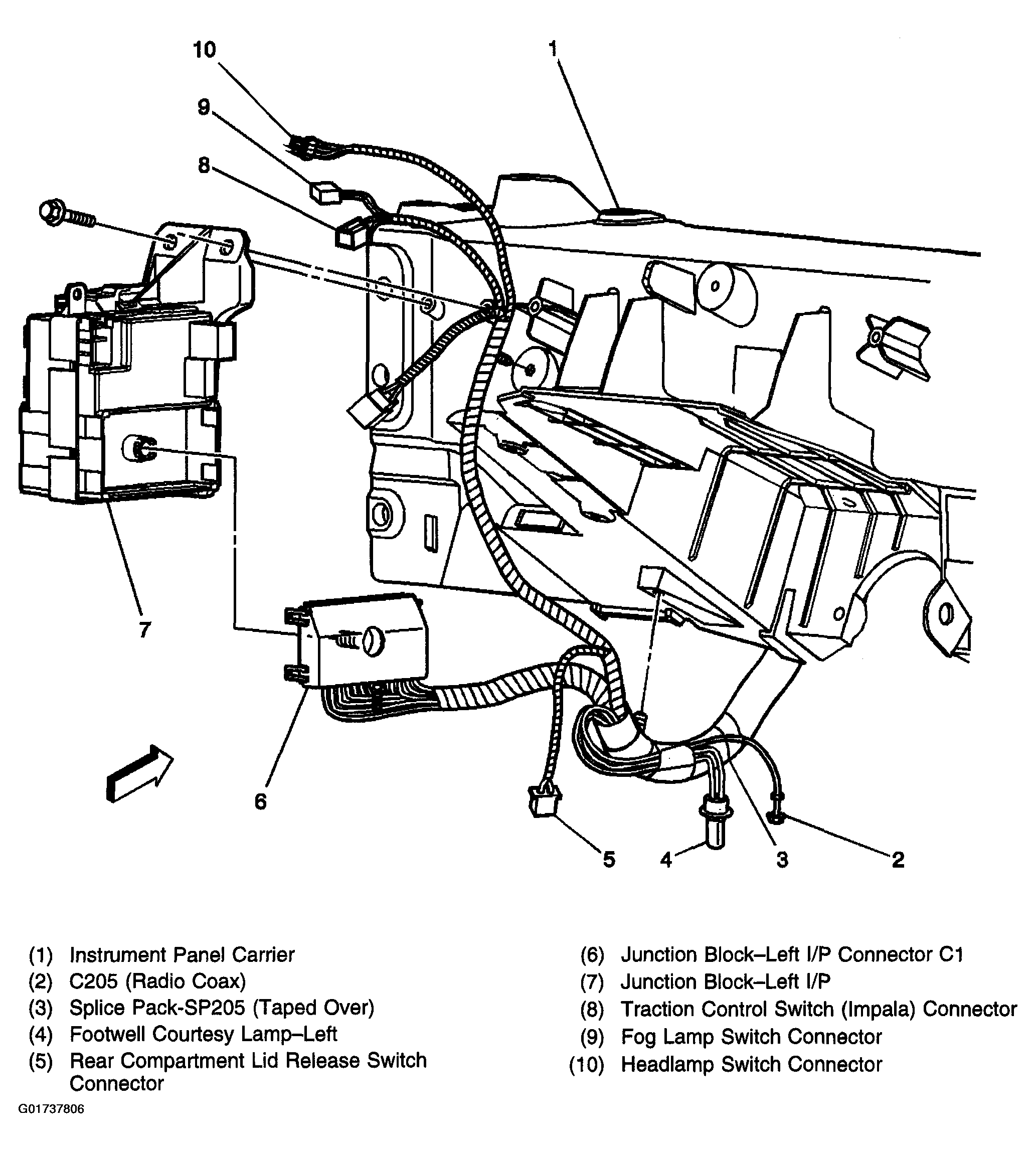

Fig 2: Locating Junction Block (Left Side Of Instrument Panel Support)

G01737806

Courtesy of GENERAL MOTORS CORP.
