Engine Overheating

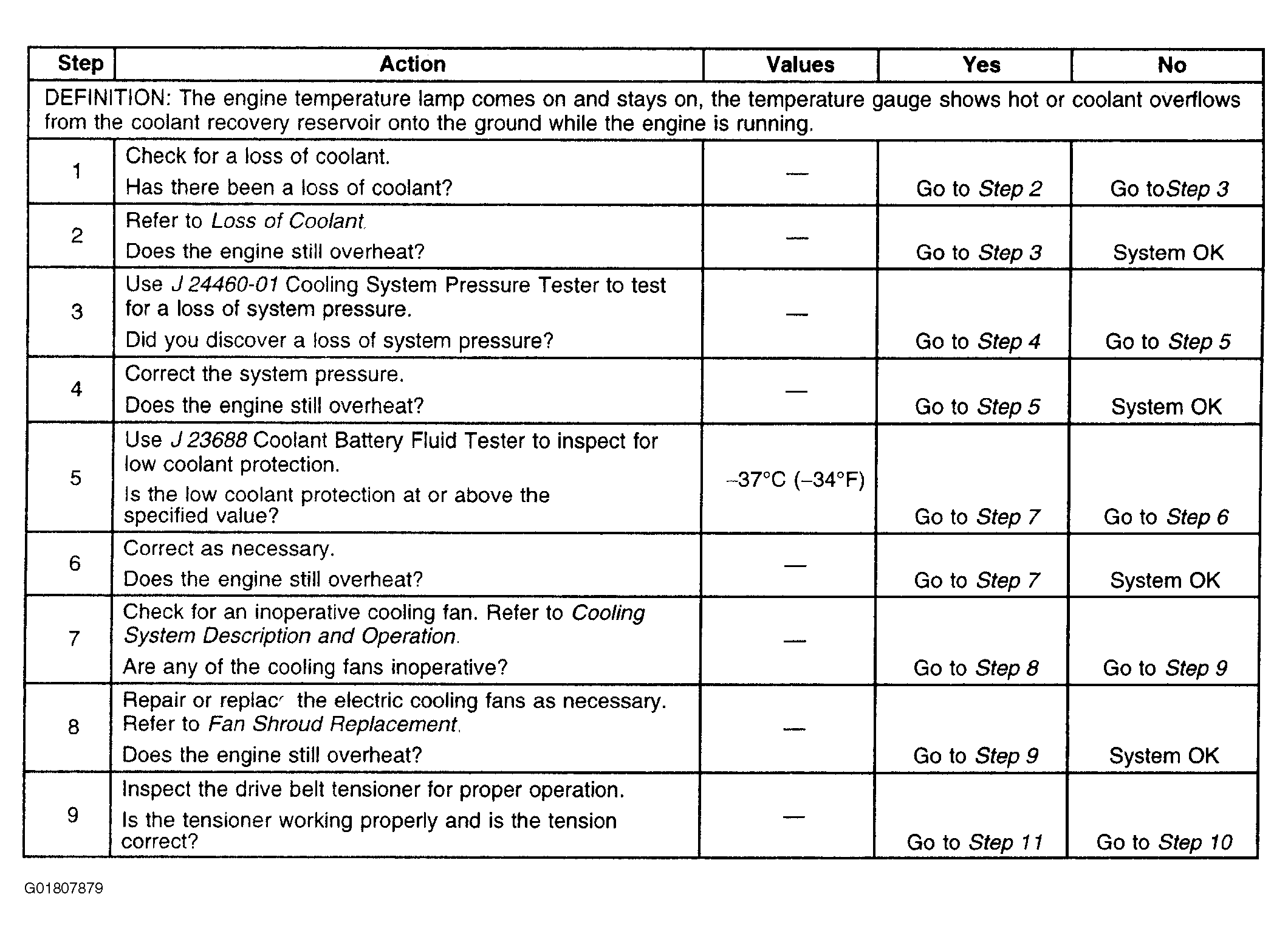

Fig 1: Engine Overheating Diagnosis (1 Of 2)

G01807879

Courtesy of GENERAL MOTORS CORP.

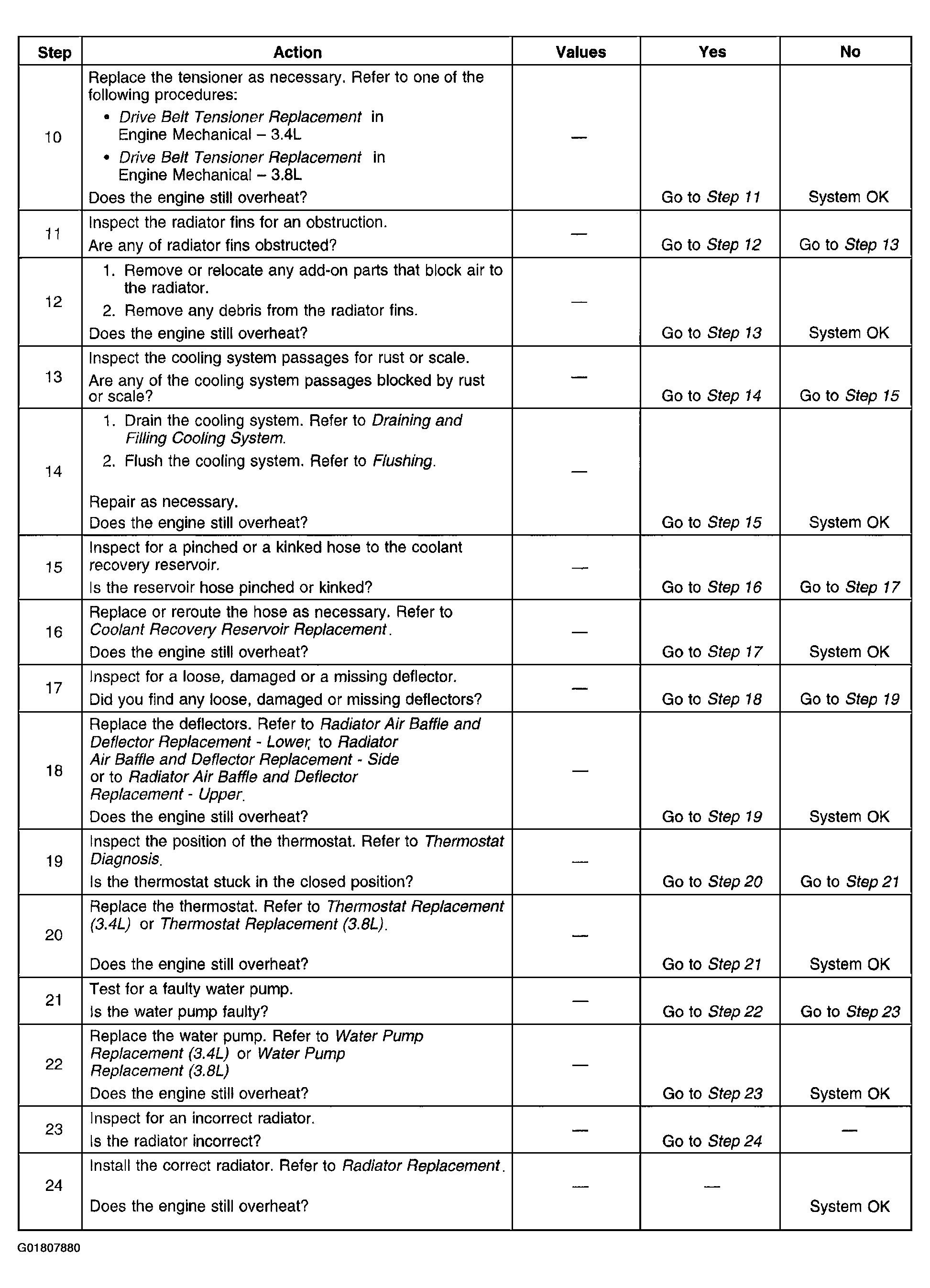

Fig 2: Engine Overheating Diagnosis (2 Of 2)

G01807880

Courtesy of GENERAL MOTORS CORP.
