STOPLAMP Switch: Installation

  1. Snap the stoplamp switch onto the pushrod to the power brake booster. Install the stoplamp switch with the pushrod on the brake pedal pin. See Fig 1 .
  2. Connect the electrical connector to the stoplamp switch. Connect the battery negative cable.

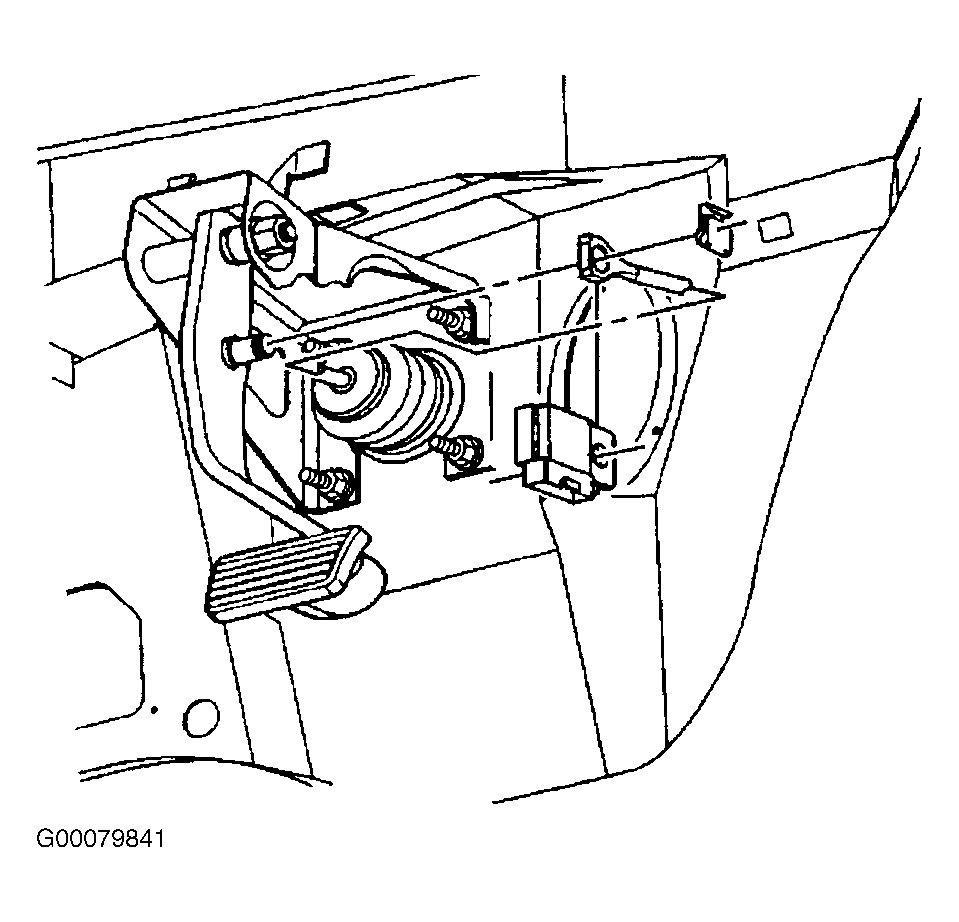

Fig 1: Removing & Installing Stoplamp Switch
G00079841Courtesy of GENERAL MOTORS CORP.
