Alternative Fuels Engine Control Module Connector End View C002

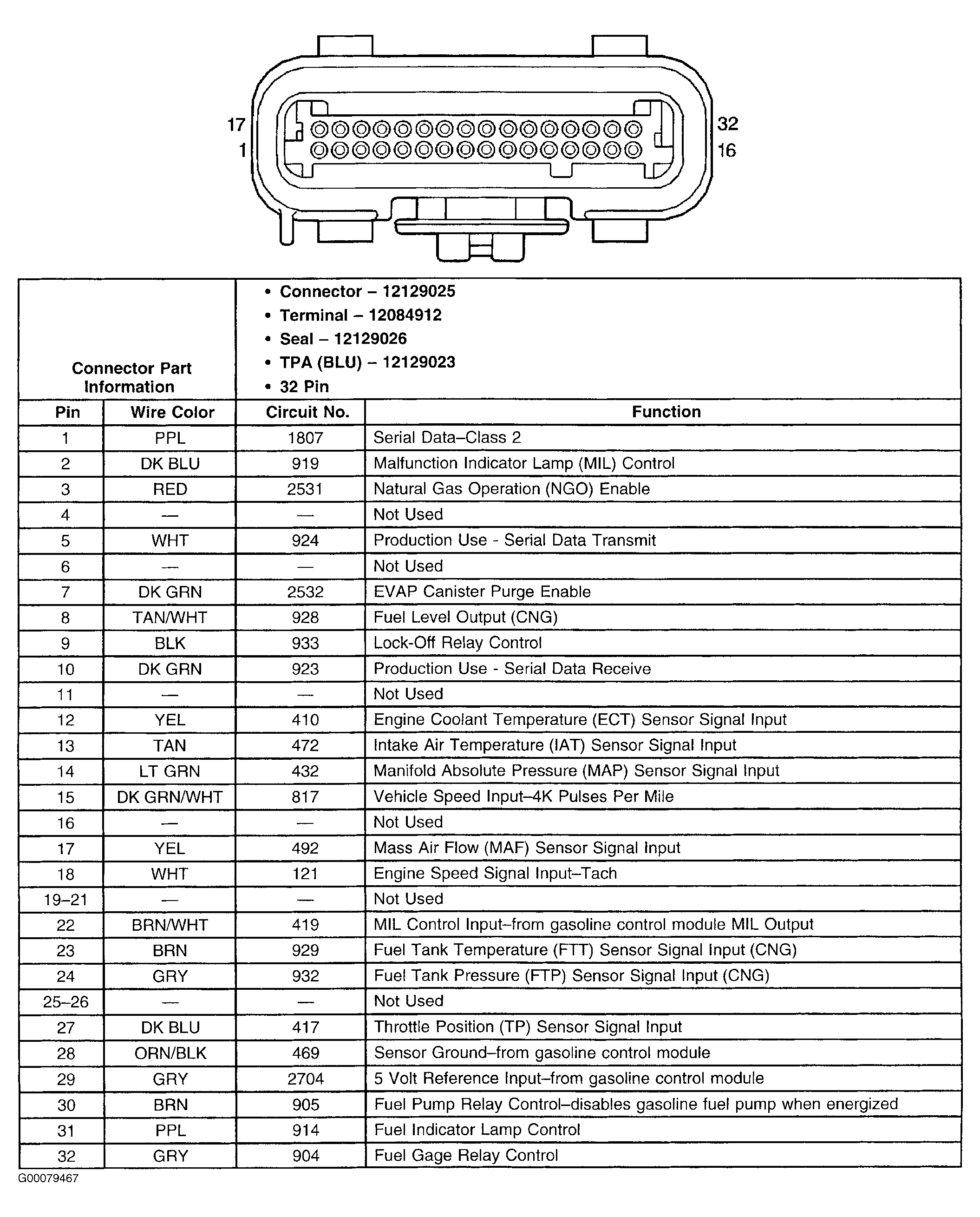

Fig 1: Alternative Fuels Engine Control Module Connector C002

G00079467

Courtesy of GENERAL MOTORS CORP.
