Alternative Fuels Engine Control Module Connector End View C001

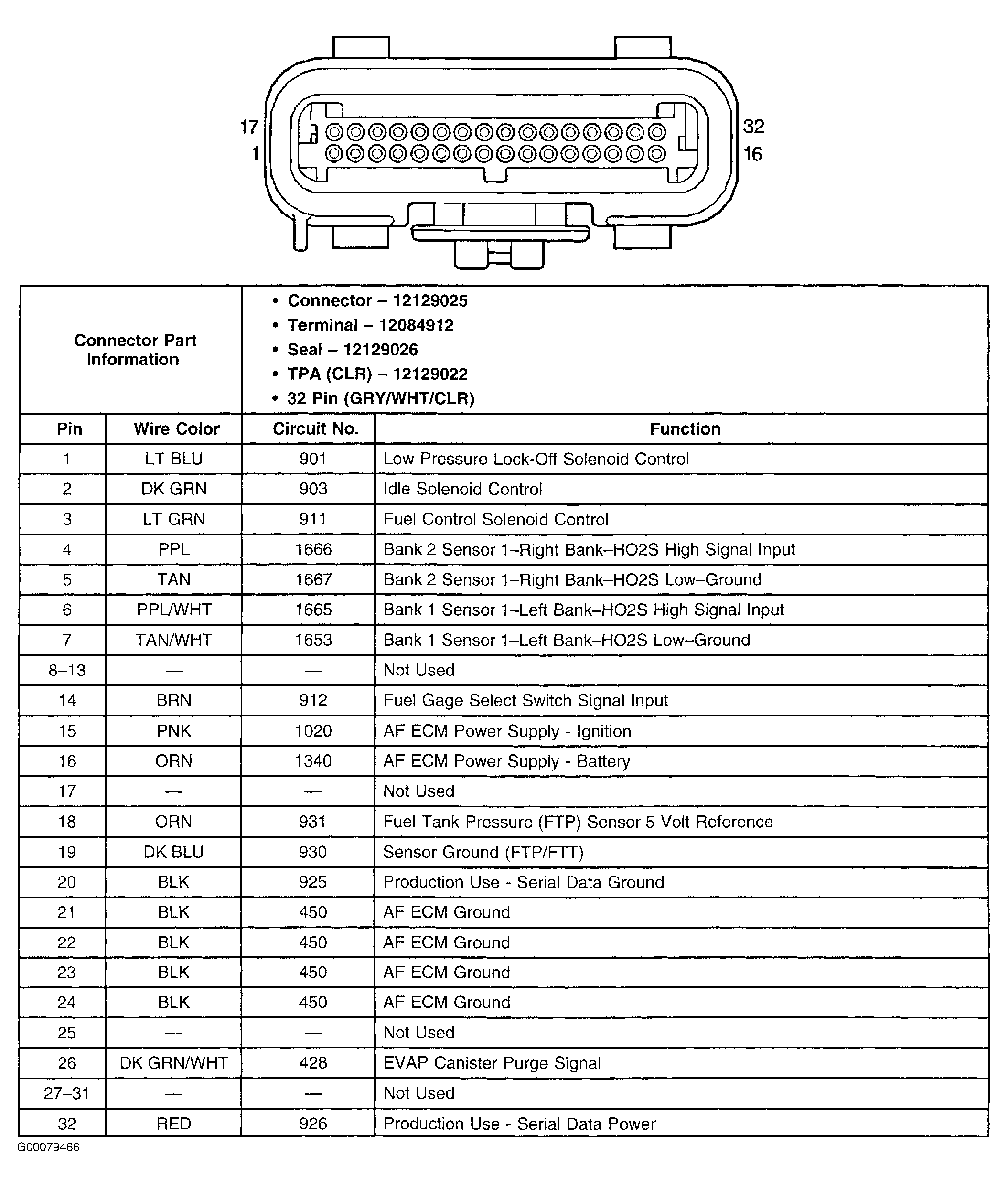

Fig 1: Alternative Fuels Engine Control Module Connector C001

G00079466

Courtesy of GENERAL MOTORS CORP.
