Park/Neutral Position Switch Connector End View, C2

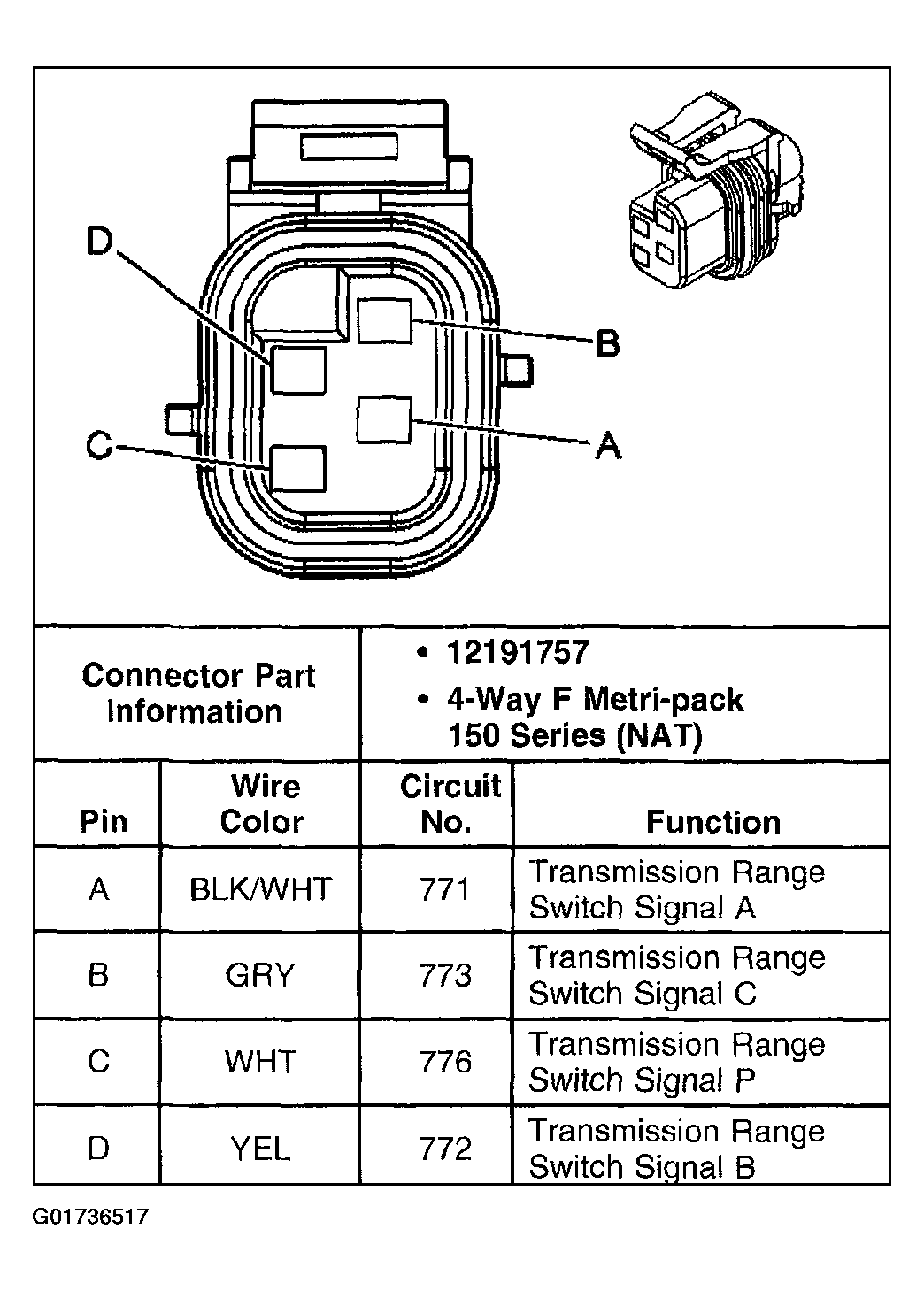

Fig 1: Park/Neutral Position Switch, C2

G01736517

Courtesy of GENERAL MOTORS CORP.
