Engine Coolant Temperature Gage Sensor Connector End View

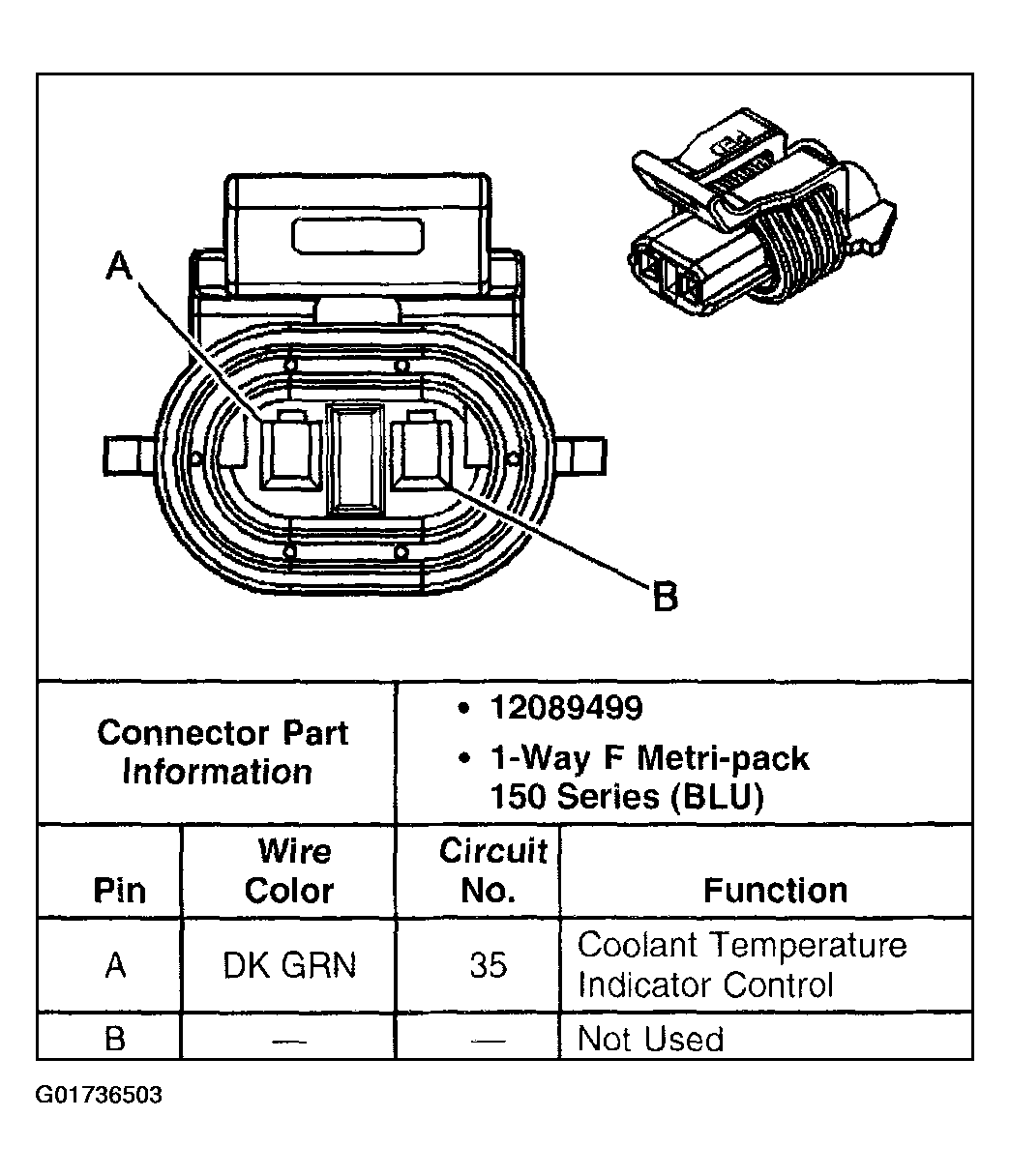

Fig 1: Engine Coolant Temperature Gage Sensor

G01736503

Courtesy of GENERAL MOTORS CORP.
