Installation Procedure

CAUTION: Refer to EXHAUST SYSTEM INSPECTION NOTICE.
  1. Install the left muffler.
  2. Slide the muffler blade into the hanger.

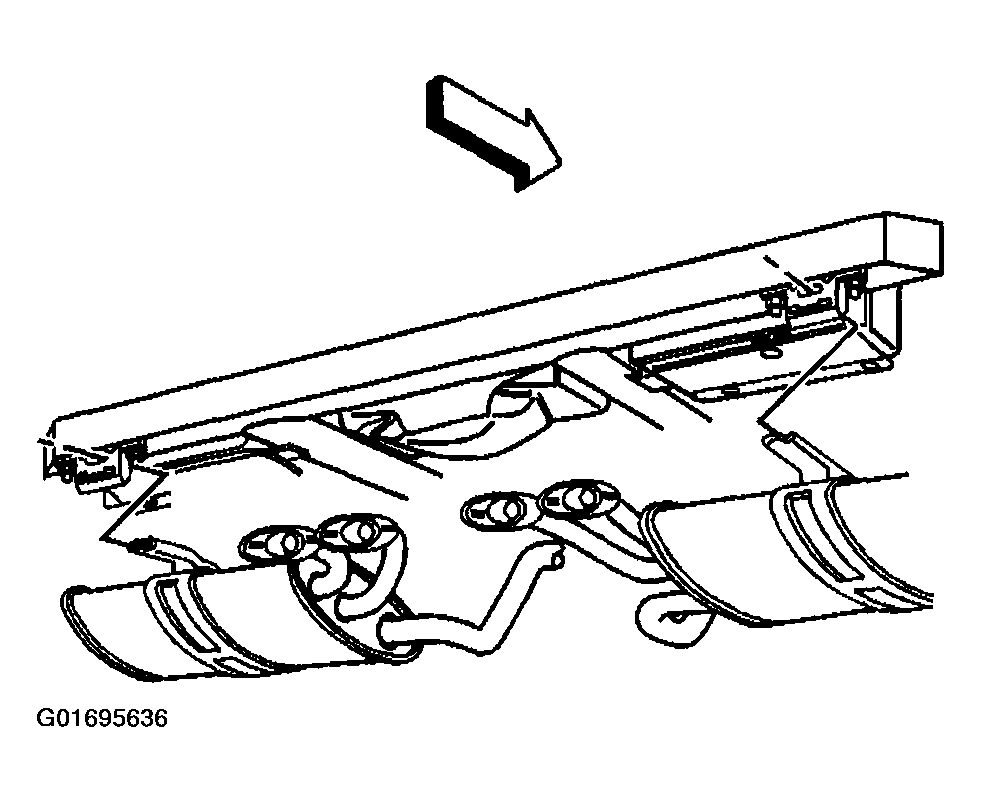

    Fig 1: Installing Muffler
    G01695636Courtesy of GENERAL MOTORS CORP.
  3. Install a NEW exhaust muffler gasket.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the left side exhaust muffler bolts.

    Tighten

    Tighten the exhaust muffler bolts to 50 N.m (37 lb ft).

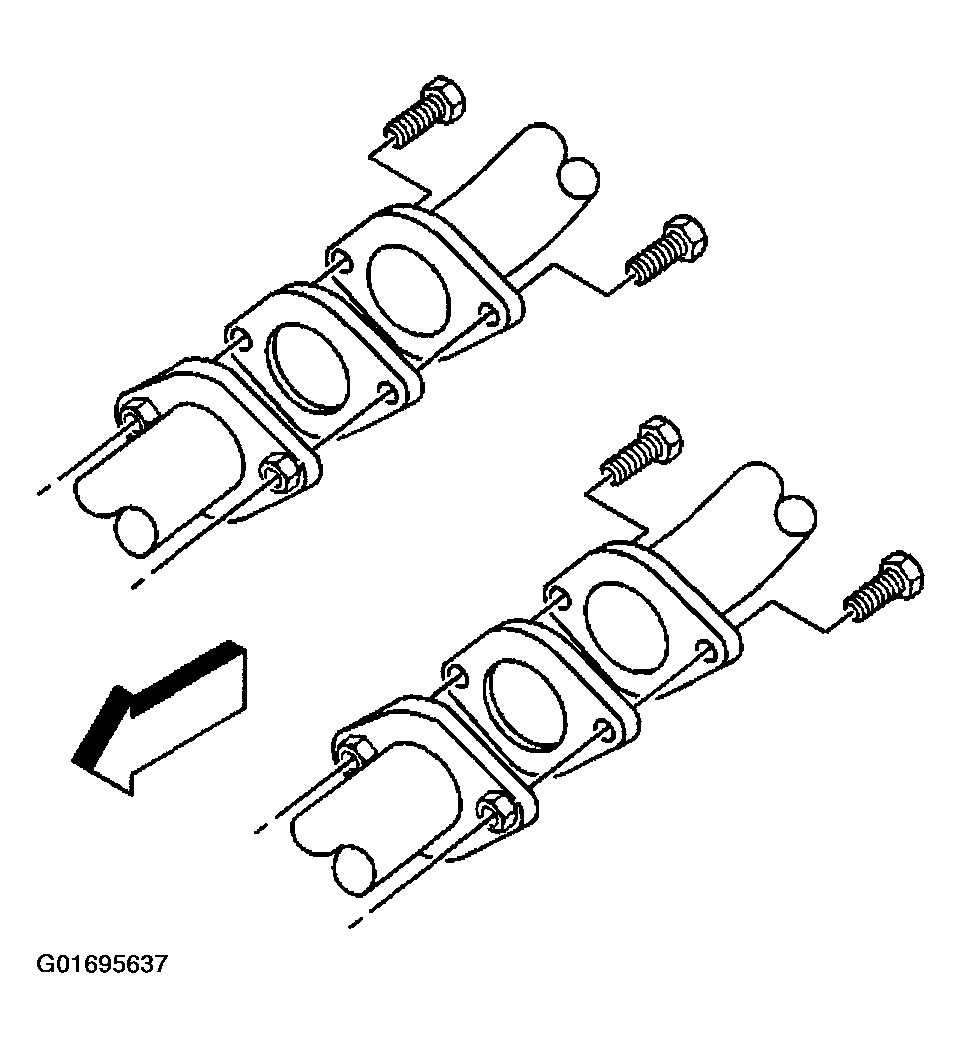

    Fig 2: Installing Exhaust Muffler Bolts
    G01695637Courtesy of GENERAL MOTORS CORP.
  5. Position the rear stabilizer shaft upwards.
  6. Install the rear stabilizer shaft insulators and brackets.
  7. Install the rear stabilizer shaft bracket bolts and nuts.

    Tighten

    • Tighten the rear stabilizer shaft bracket bolts to 65 N.m (49 lb ft).
    • Tighten the rear stabilizer shaft bracket nuts to 95 N.m (70 lb ft).

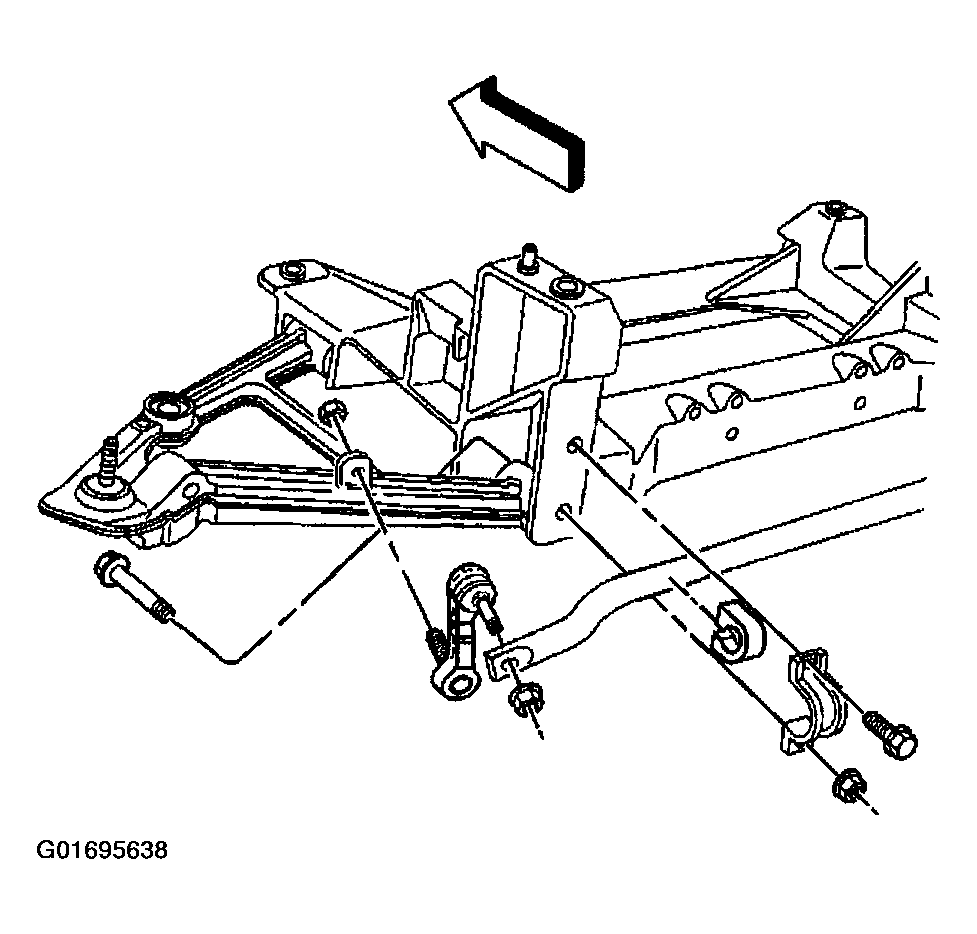

    Fig 3: Installing Rear Stabilizer Shaft Bracket Bolts
    G01695638Courtesy of GENERAL MOTORS CORP.
