Removal Procedure

  1. Remove the battery. Refer to Battery Replacement
  2. Remove the battery tray bolts.
  3. Remove the battery tray.

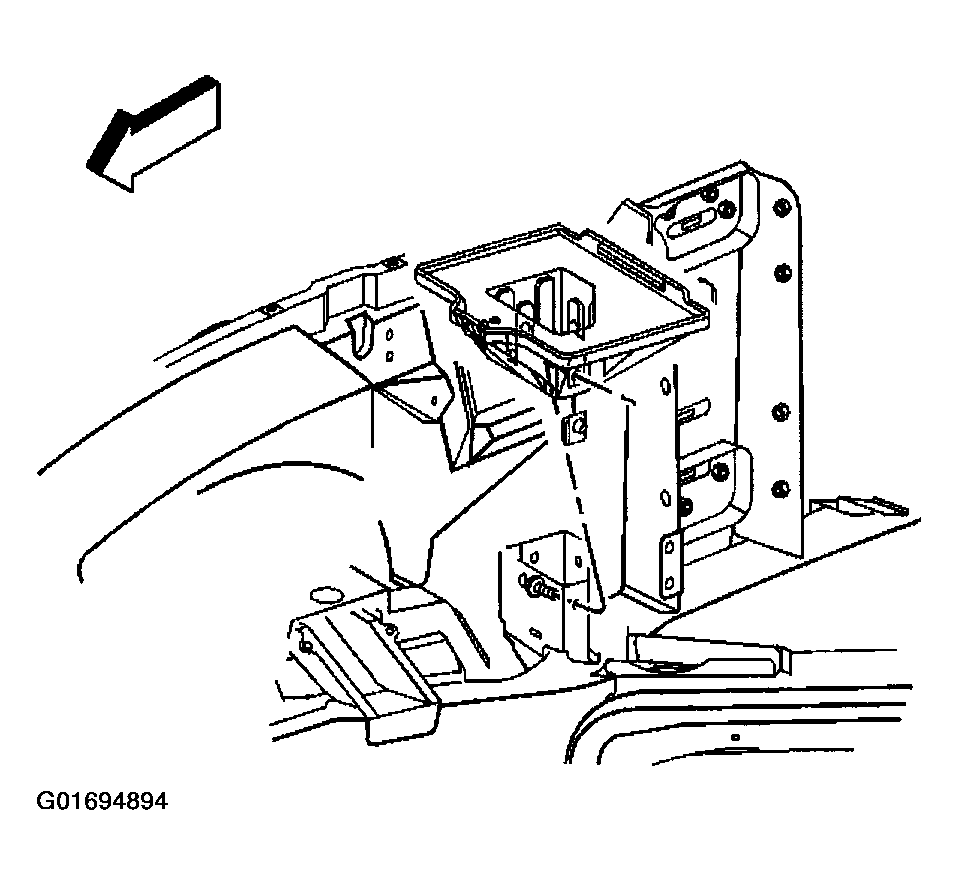

    Fig 1: Removing Battery Tray Bolts
    G01694894Courtesy of GENERAL MOTORS CORP.
