Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement.
  2. Open the stud cover on the fuse/relay center.
  3. Remove the positive battery cable nut from the fuse/relay center stud.
  4. Remove the positive battery cable lead (2) from the fuse/relay center stud.

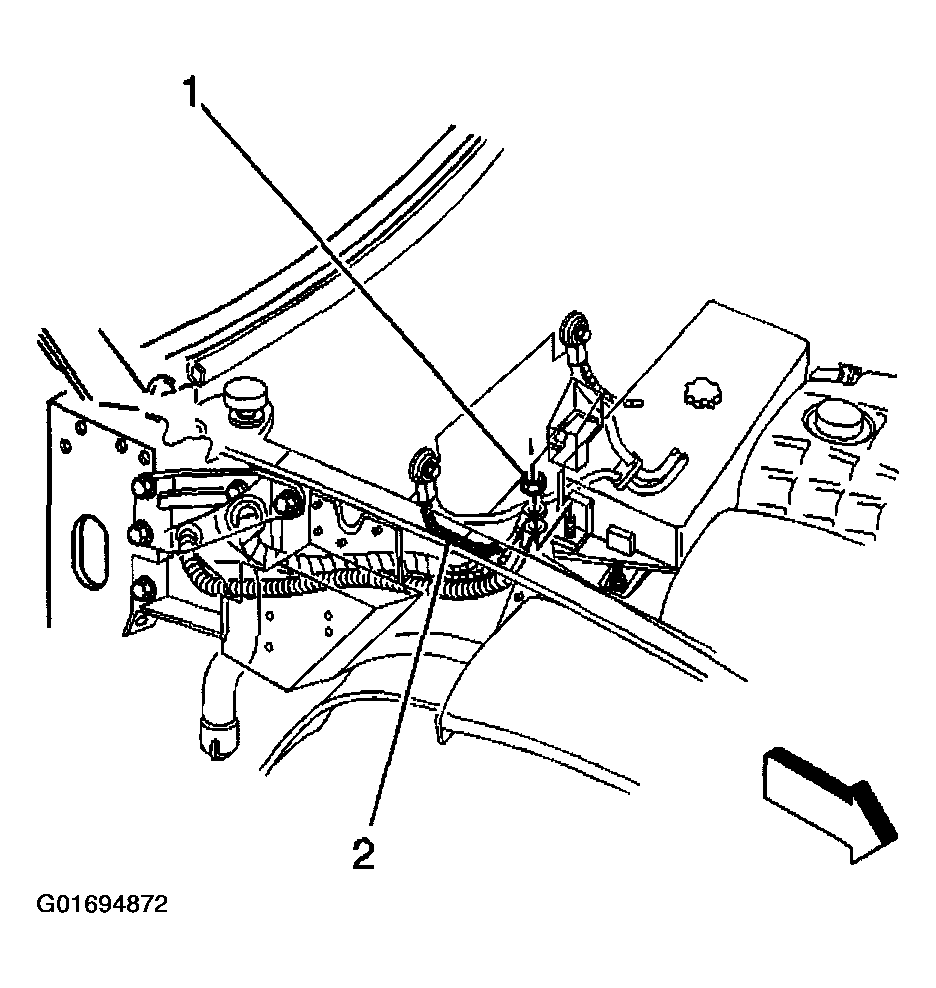

    Fig 1: Removing Positive Battery Cable Lead
    G01694872Courtesy of GENERAL MOTORS CORP.
  5. Remove the heat shield retainer at the upper plenum.

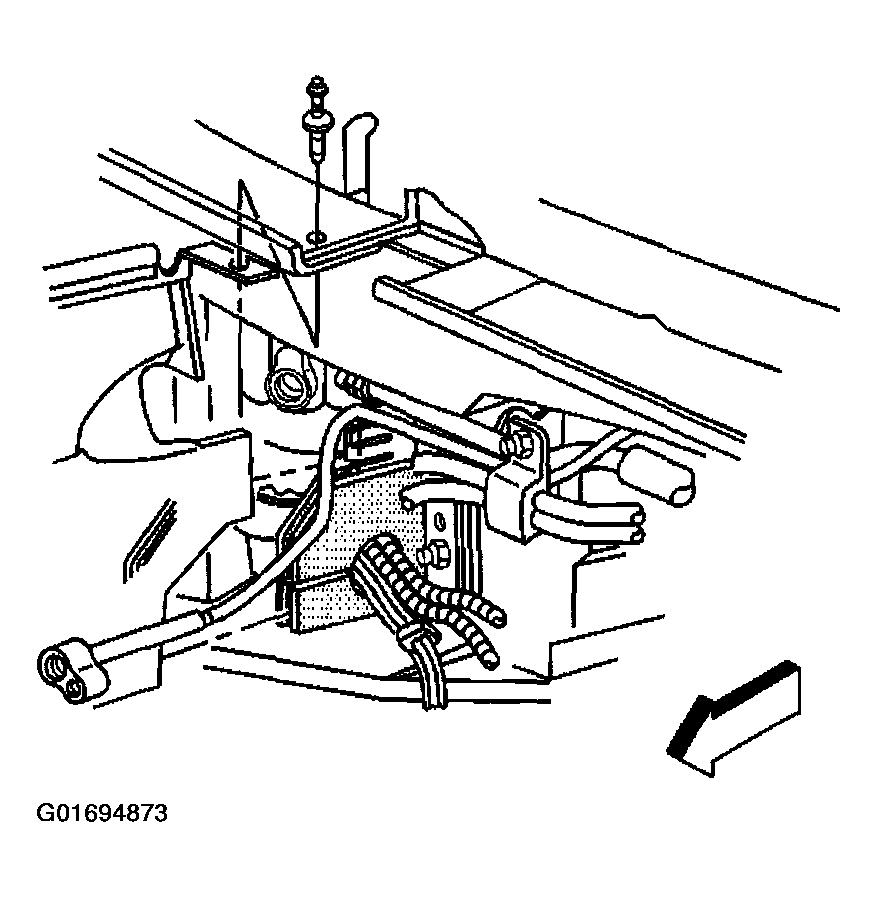

    Fig 2: Removing Battery Heat Shield Retainer
    G01694873Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery heat shield retainer and the battery heat shield.
  7. Remove the right rear spark plug wire.

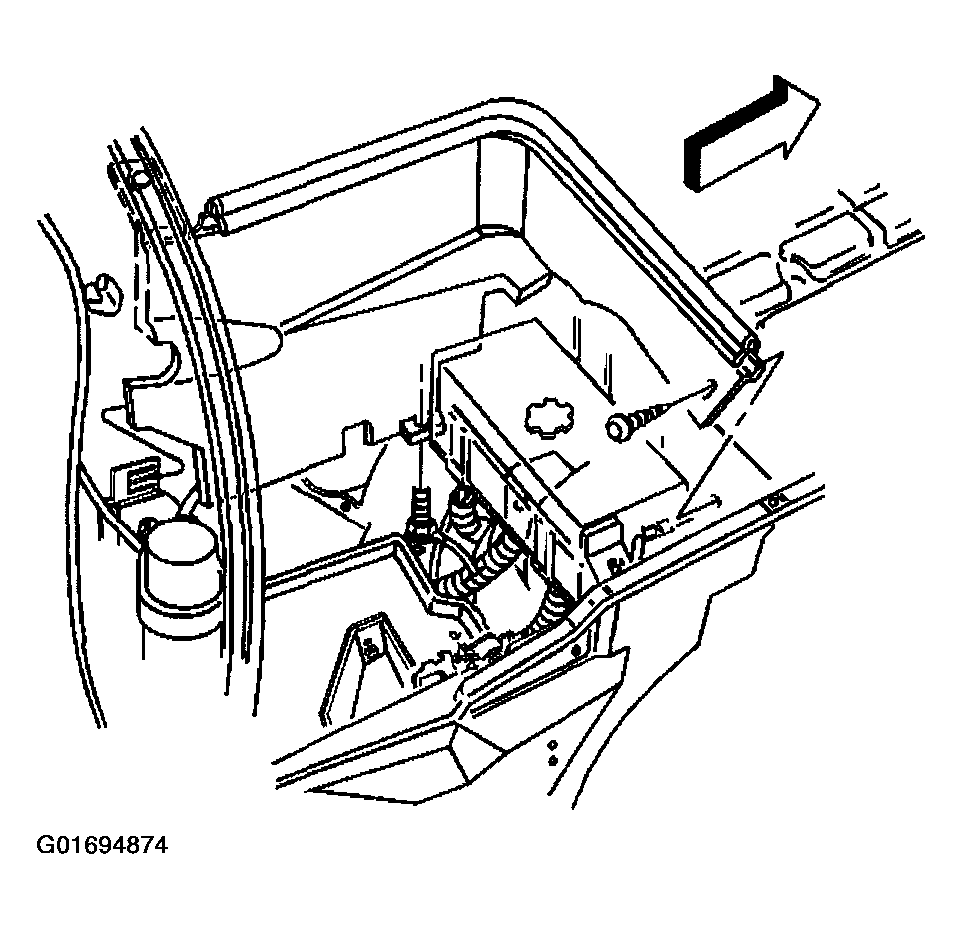

    Fig 3: Removing Battery Heat Shield
    G01694874Courtesy of GENERAL MOTORS CORP.
  8. Remove the battery cable clips.

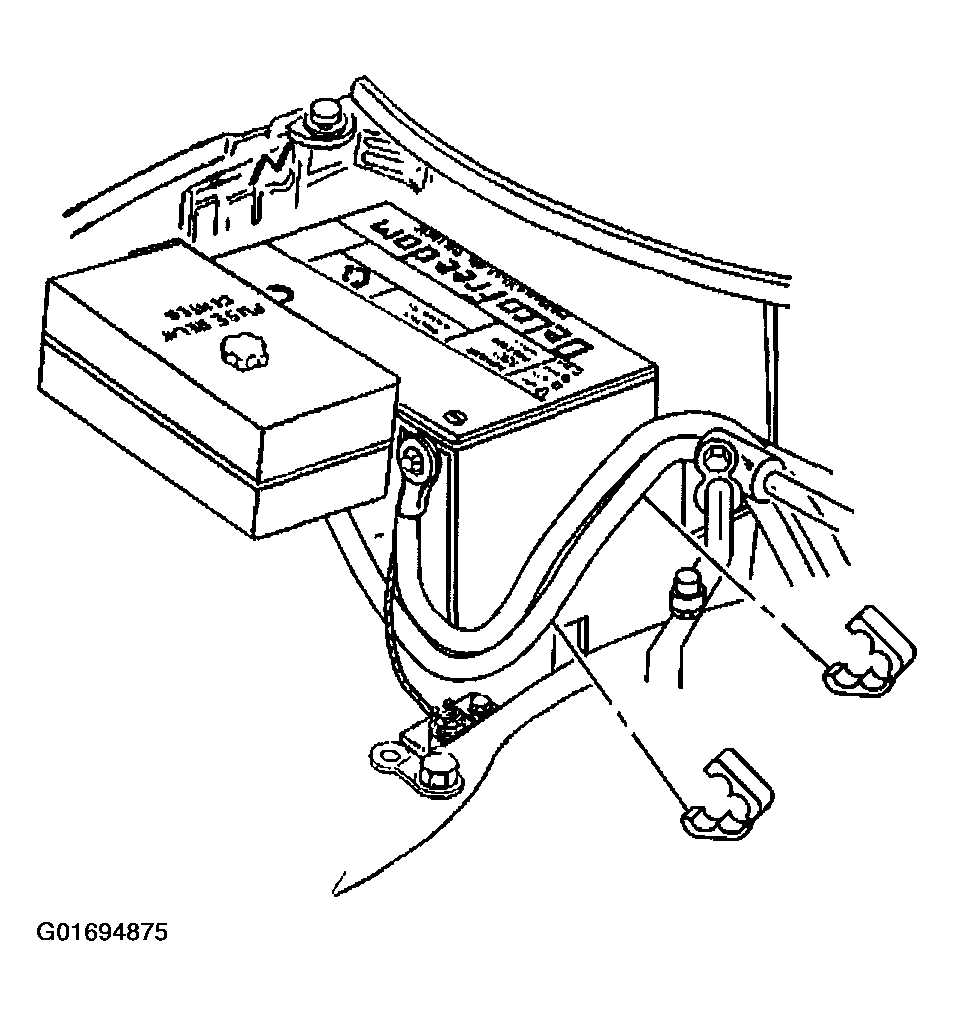

    Fig 4: Removing Battery Cable Clips
    G01694875Courtesy of GENERAL MOTORS CORP.
  9. Remove the battery cables (1) from the engine wiring harness insulator.
  10. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

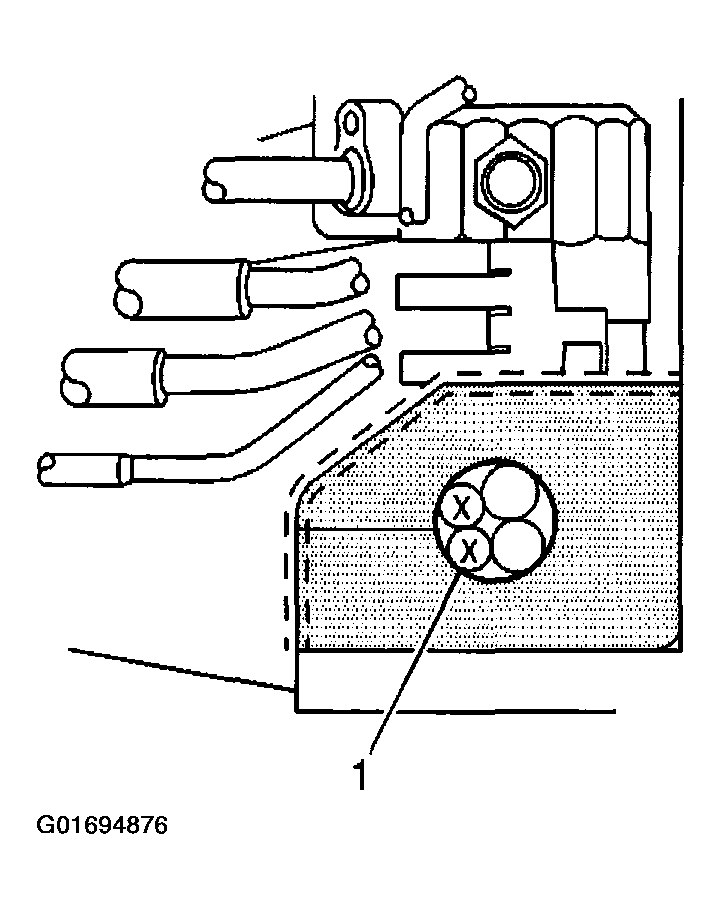

    Fig 5: Identifying Engine Wiring Harness Battery Cables
    G01694876Courtesy of GENERAL MOTORS CORP.
  11. Remove the positive battery cable terminal nut and terminals (3, 4) from the starter solenoid.
  12. Lower the vehicle.
  13. Remove the positive battery cable.

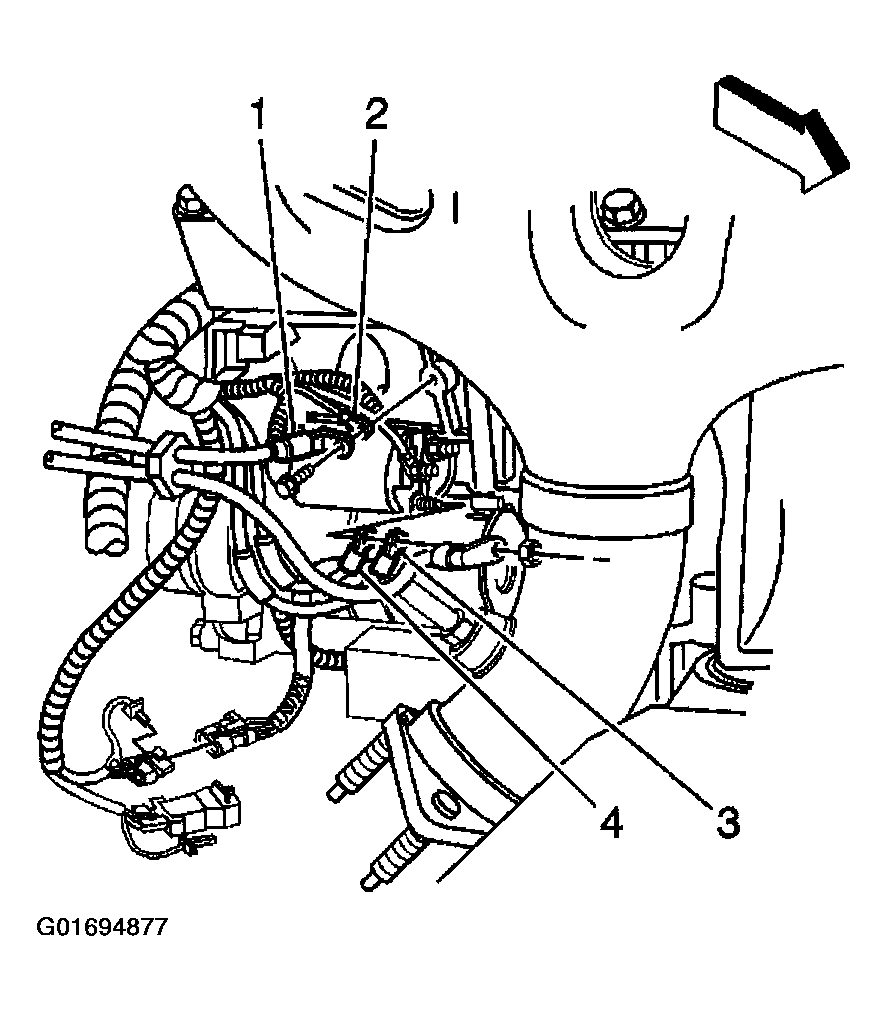

    Fig 6: Removing Positive Battery Cable Terminal
    G01694877Courtesy of GENERAL MOTORS CORP.
