Removal Procedure

  1. Remove the battery tray. Refer to Battery Tray Replacement.
  2. Remove the heat shield retainer at the upper plenum.

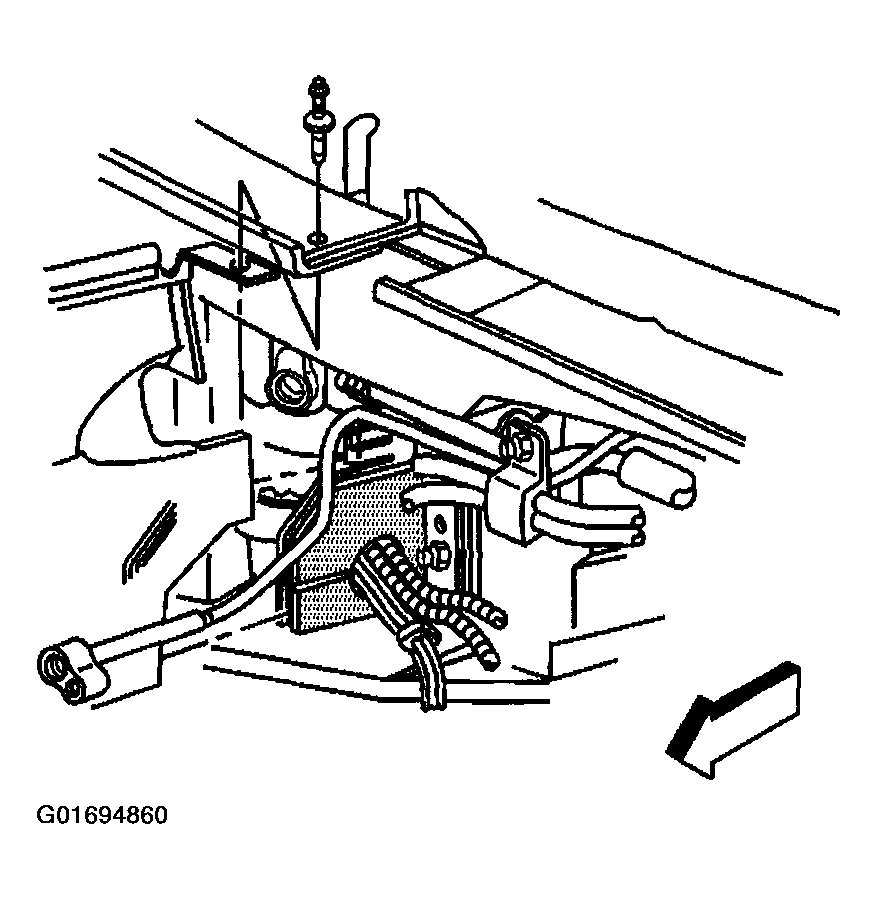

    Fig 1: Identifying Battery Heat Shield Retainer
    G01694860Courtesy of GENERAL MOTORS CORP.
  3. Remove the heat shield retainer at the wheelhouse panel.
  4. Remove the battery heat shield.
  5. Remove the right rear spark plug wire.

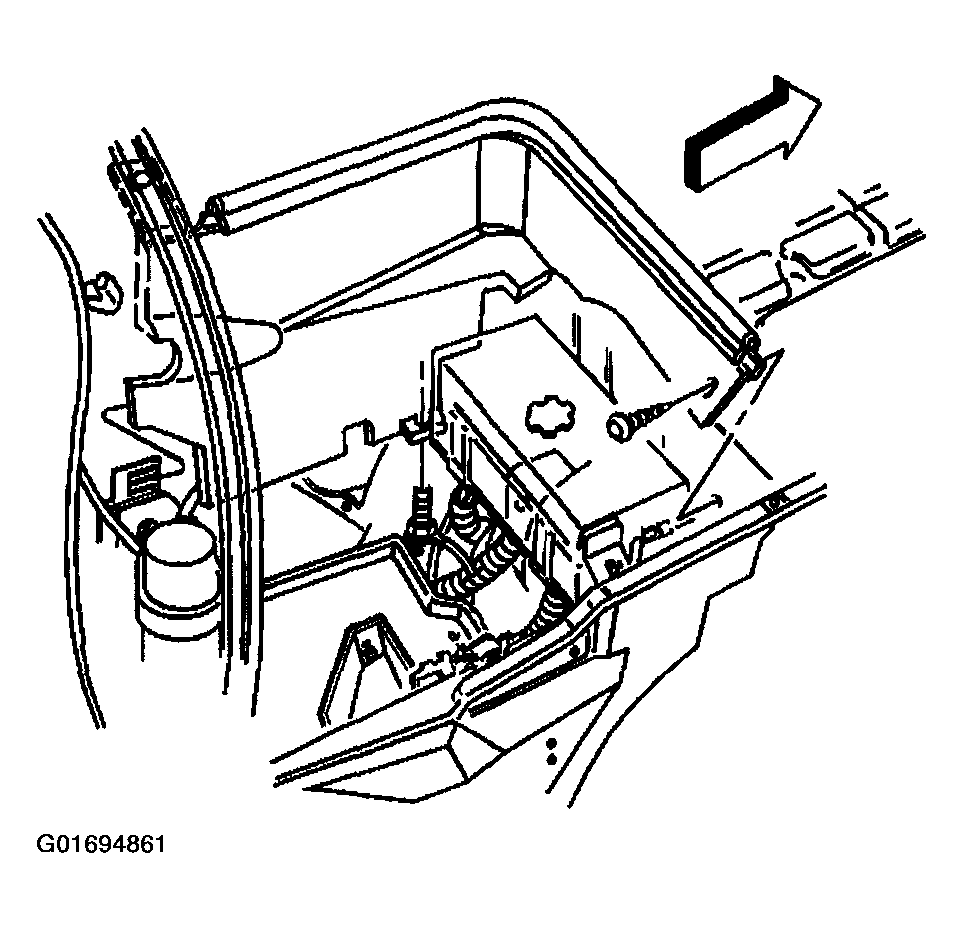

    Fig 2: Removing Battery Heat Shield Screws
    G01694861Courtesy of GENERAL MOTORS CORP.
  6. Remove the battery cable clips.

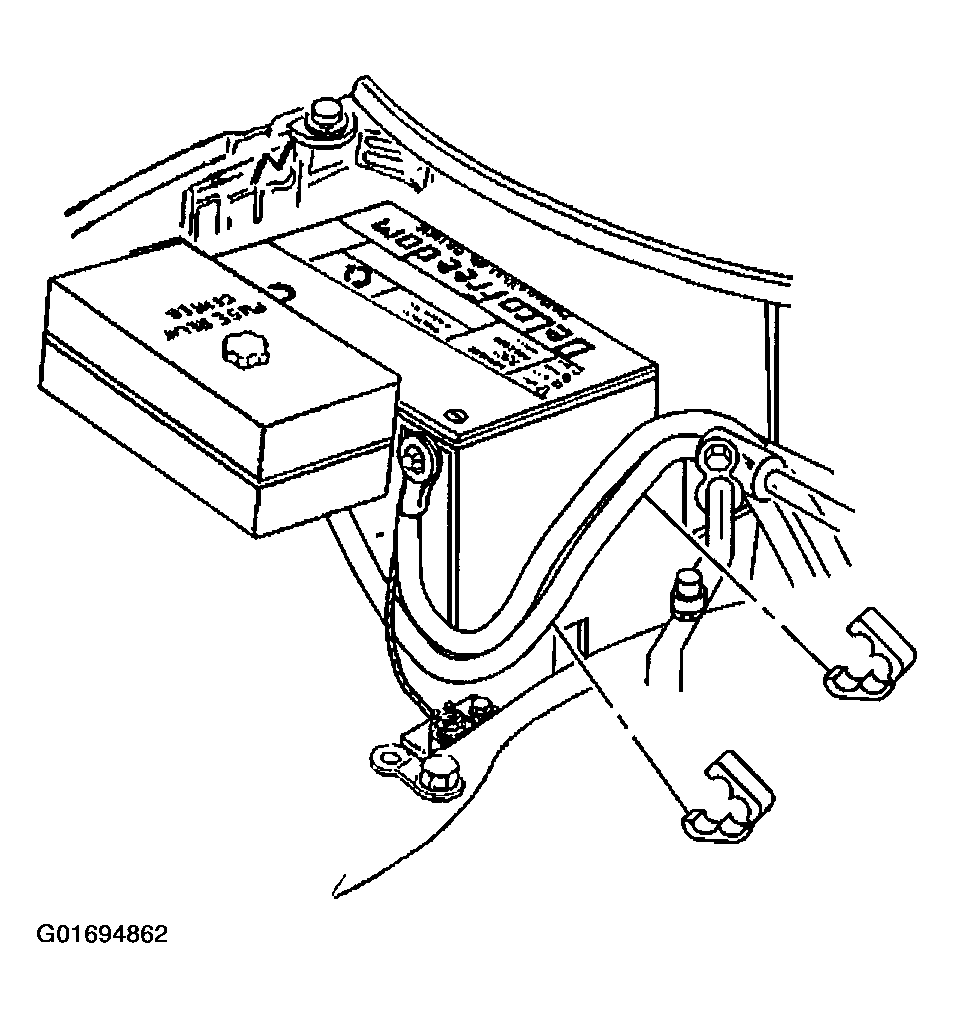

    Fig 3: Removing Battery Cable Clips
    G01694862Courtesy of GENERAL MOTORS CORP.
  7. Remove the negative battery cable ground nut.
  8. Remove the negative battery cable ground lead (1).

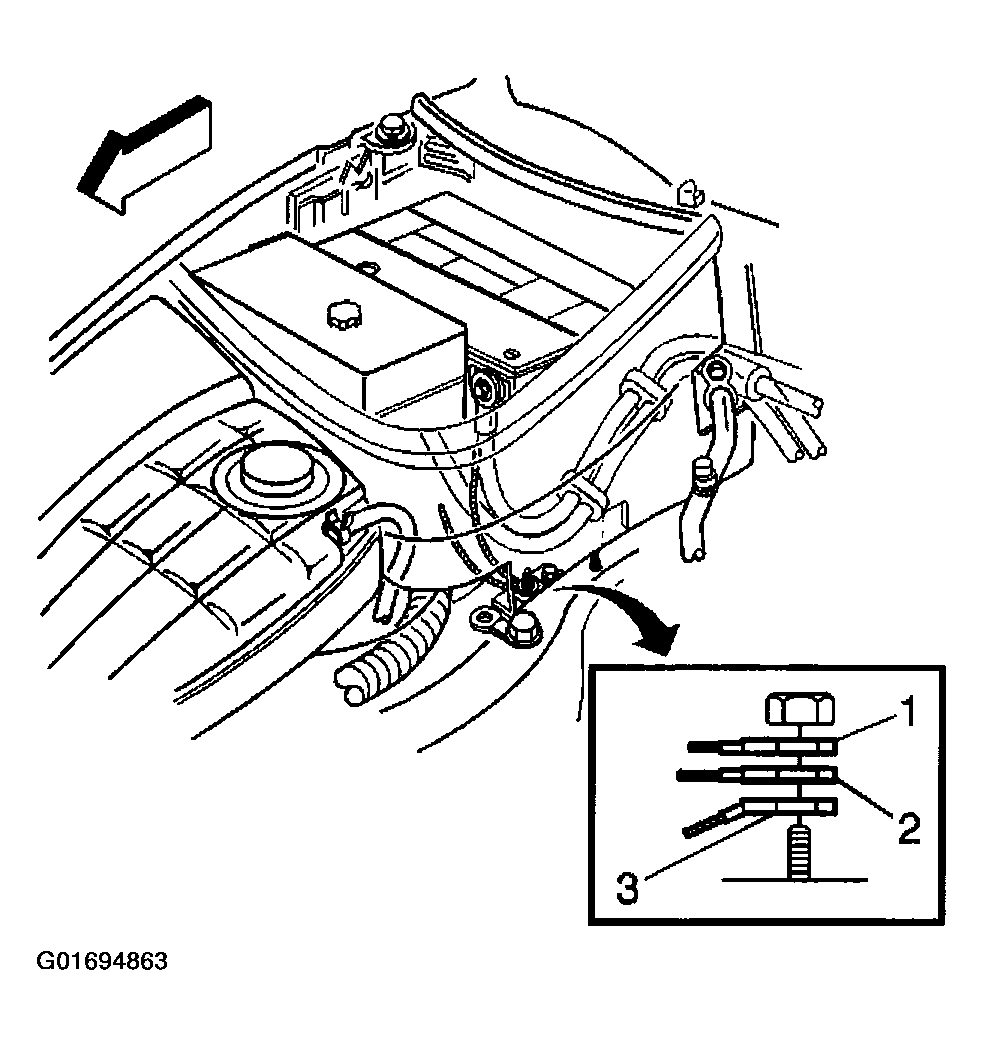

    Fig 4: Removing Negative Battery Cable Ground Lead
    G01694863Courtesy of GENERAL MOTORS CORP.
  9. Remove the battery cables (1) from the engine wiring harness insulator.
  10. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

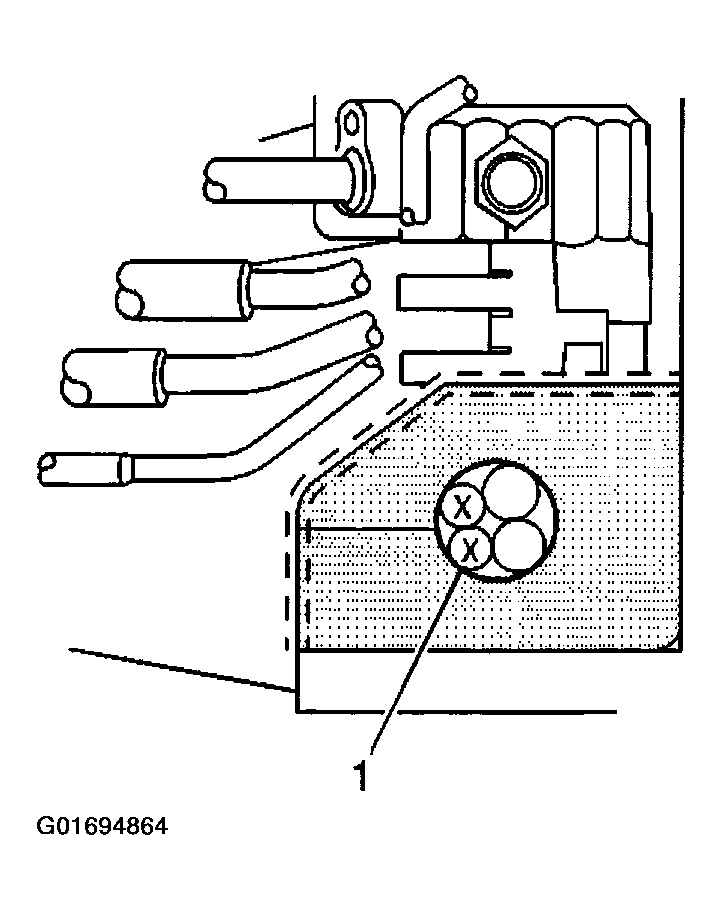

    Fig 5: Identifying Engine Wiring Harness Battery Cables
    G01694864Courtesy of GENERAL MOTORS CORP.
  11. Remove the negative battery cable terminal bolt and terminal (1).
  12. Lower the vehicle.
  13. Remove the negative battery cable.

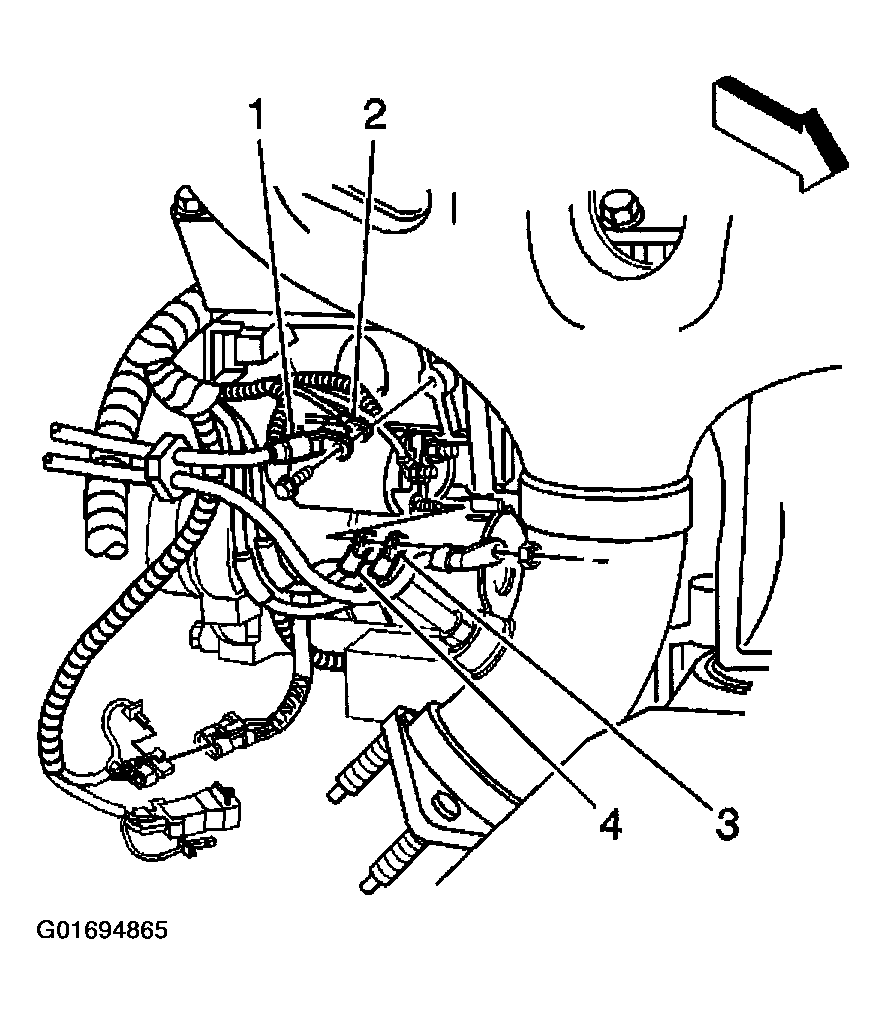

    Fig 6: Removing Negative Battery Cable Terminal
    G01694865Courtesy of GENERAL MOTORS CORP.
