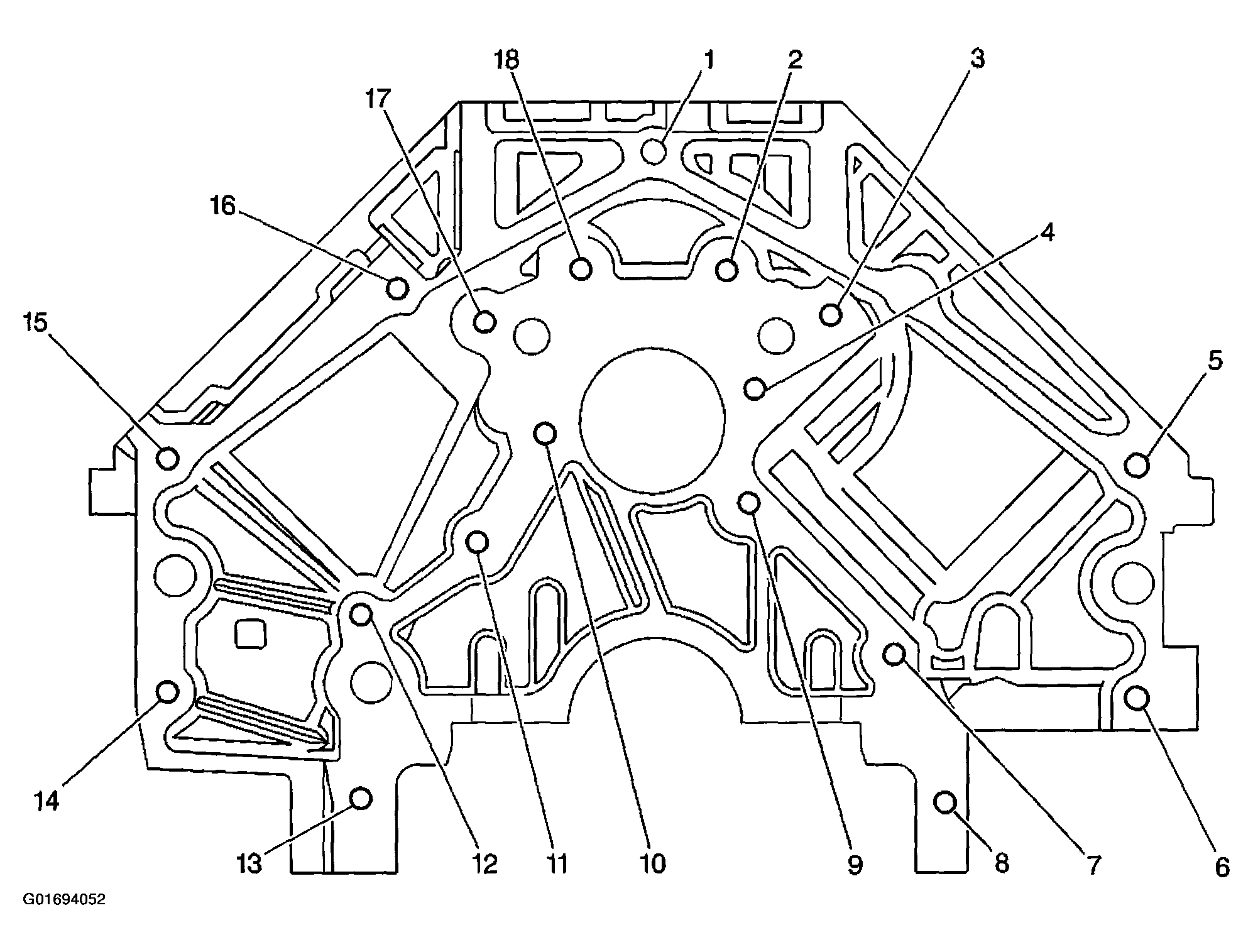

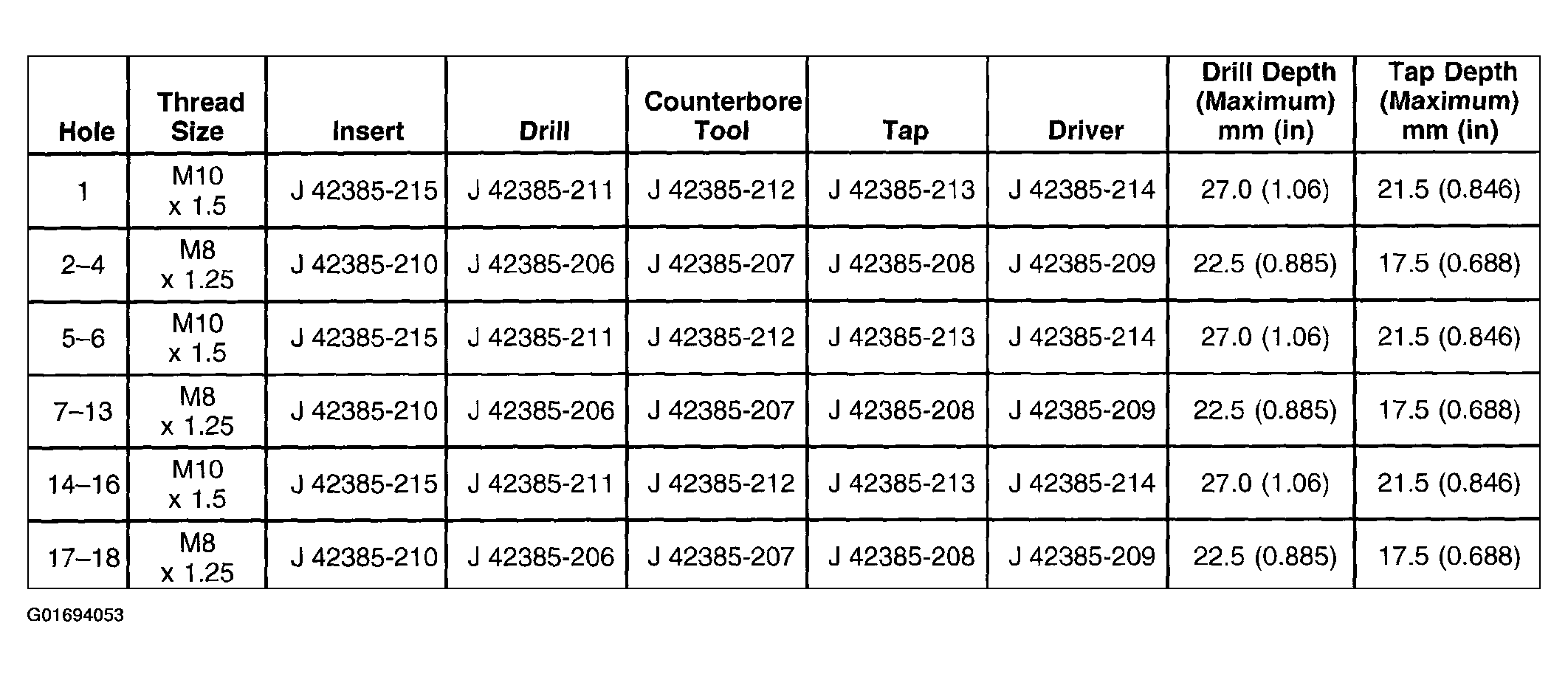

Home >> Chevrolet >> 2002 >> Corvette Z06 >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Mechanical >> Engine Mechanical - 5.7L (Unit Repair) >> Specifications >> Thread Repair Specifications >> Engine Block - Rear View
