Removal Procedure

  1. Turn the ignition switch to the OFF position.
  2. Remove the IP accessory trim plate. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE & KNEE BOLSTER .
  3. Disconnect the yaw rate sensor connector.
  4. Loosen the two yaw rate sensor nuts (1).
  5. Remove the yaw rate sensor (2).

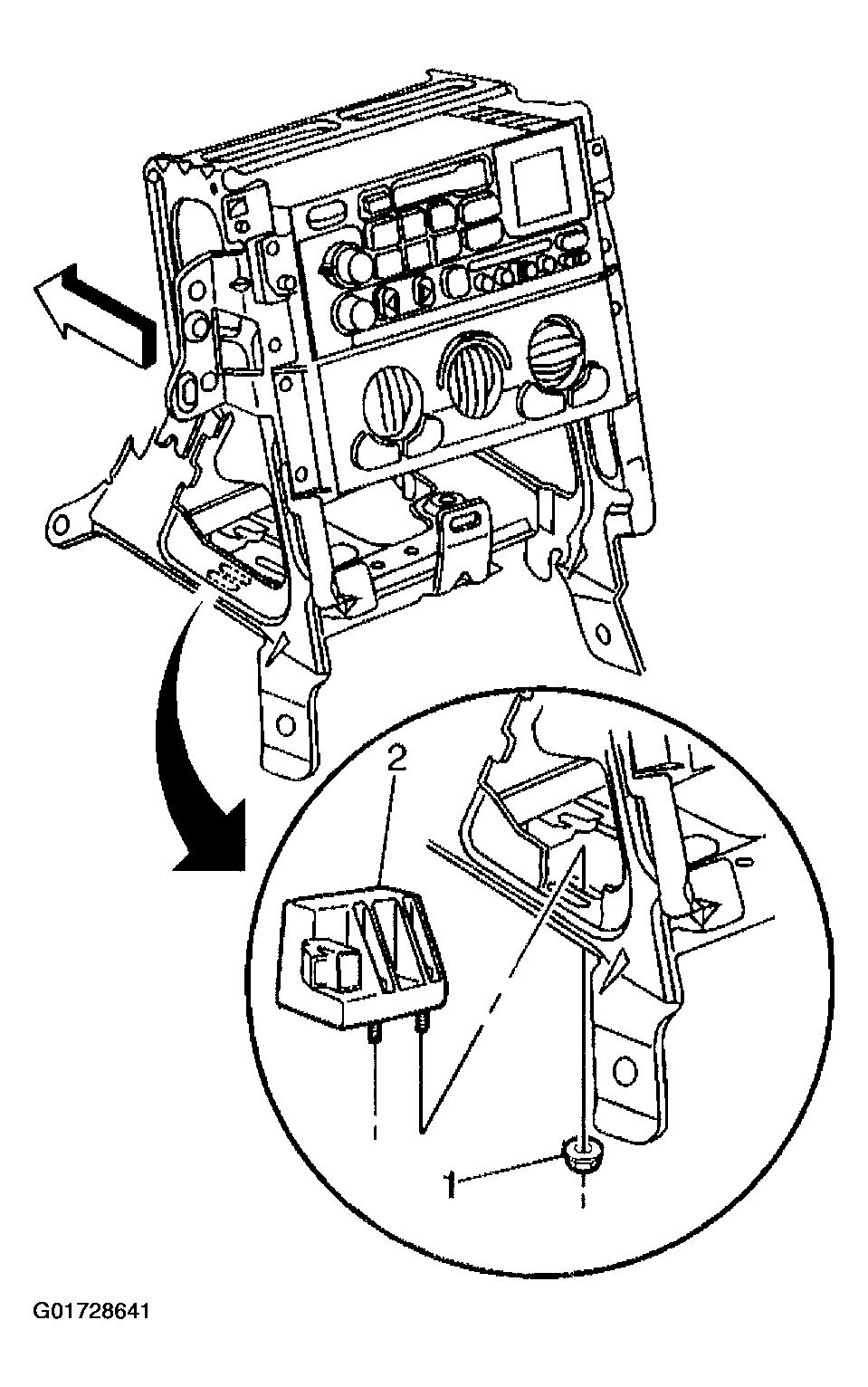

    Fig 1: Removing Yaw Rate Sensor Nuts
    G01728641Courtesy of GENERAL MOTORS CORP.
