Theft Deterrent System Component Views

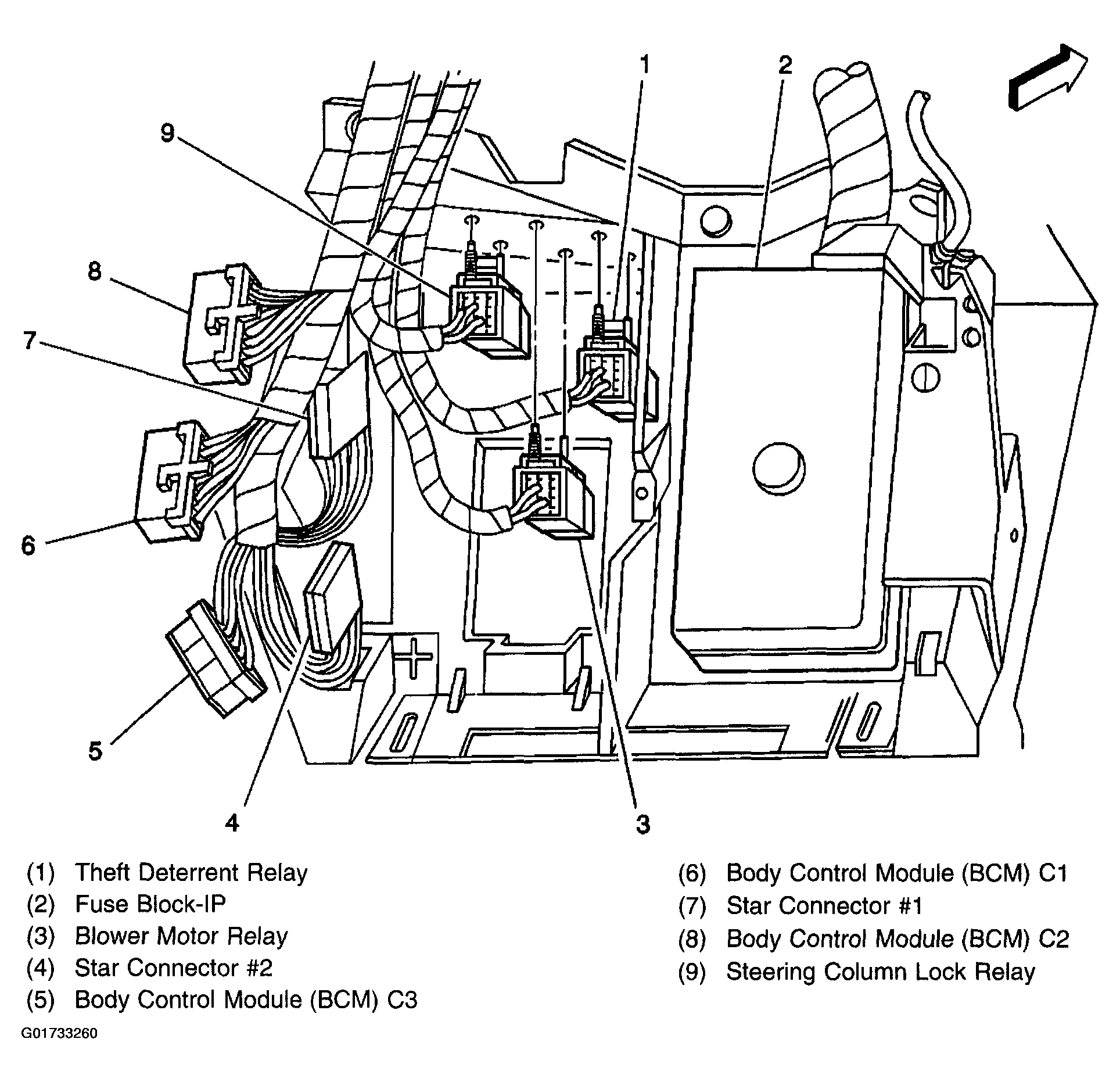

Fig 1: View Under RH Side Of Dash

G01733260

Courtesy of GENERAL MOTORS CORP.
