Rear Toe Adjustment

  1. Loosen the rear suspension adjustment link lock nut (1).
  2. Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications . .
    CAUTION: Refer to FASTENER NOTICE .
  3. Tighten the rear suspension adjustment link lock nut.

    Tighten

    Tighten the rear suspension adjustment link lock nut to 60 N.m (44 lb ft).

  4. Check the toe setting after tightening.
  5. Adjust the toe setting if necessary.

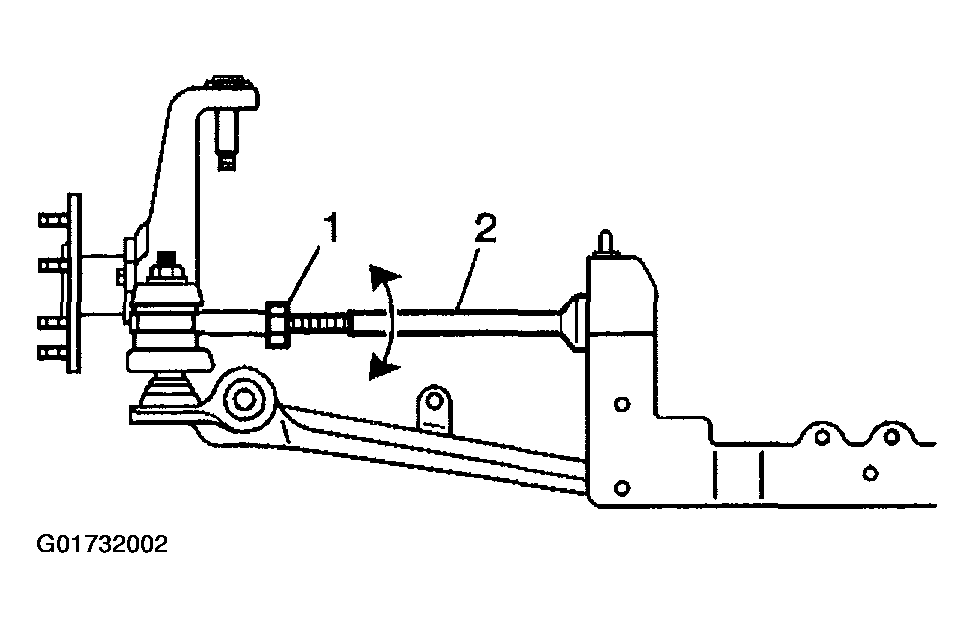

    Fig 1: Loosening Rear Suspension Adjustment Link Lock Nut
    G01732002Courtesy of GENERAL MOTORS CORP.
