Front Toe Adjustment

  1. Loosen the jam nut on the tie rod (2).
  2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications .
    CAUTION: Refer to FASTENER NOTICE .
  3. Tighten the jam nut on the tie rod.

    Tighten

    Tighten the front tie rod jam to 68 N.m (50 lb ft).

  4. Check the toe setting after tightening.
  5. Adjust the toe setting if necessary.

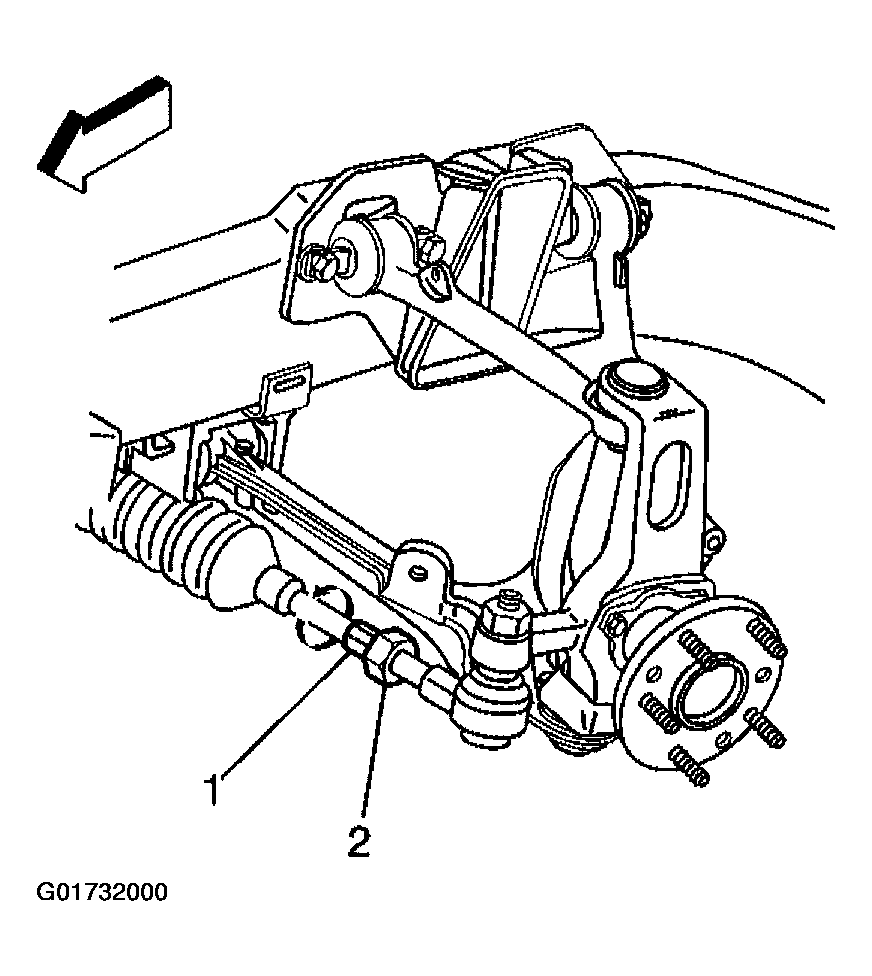

    Fig 1: Loosening Tie Rod Jam Nut
    G01732000Courtesy of GENERAL MOTORS CORP.
