Electronic Column Lock Module - Disassemble - Off Vehicle (Telescoping Column)

WARNING: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the upper tilt head components. Refer to Steering Column Tilt Head Housing - Disassemble - Off Vehicle (Telescoping)  or Steering Column Tilt Head Housing - Disassemble - Off Vehicle (Non- Telescoping) .
  3. Pop the wire harness assembly (1) from the wire harness strap (2).
  4. Disconnect the connector, if necessary

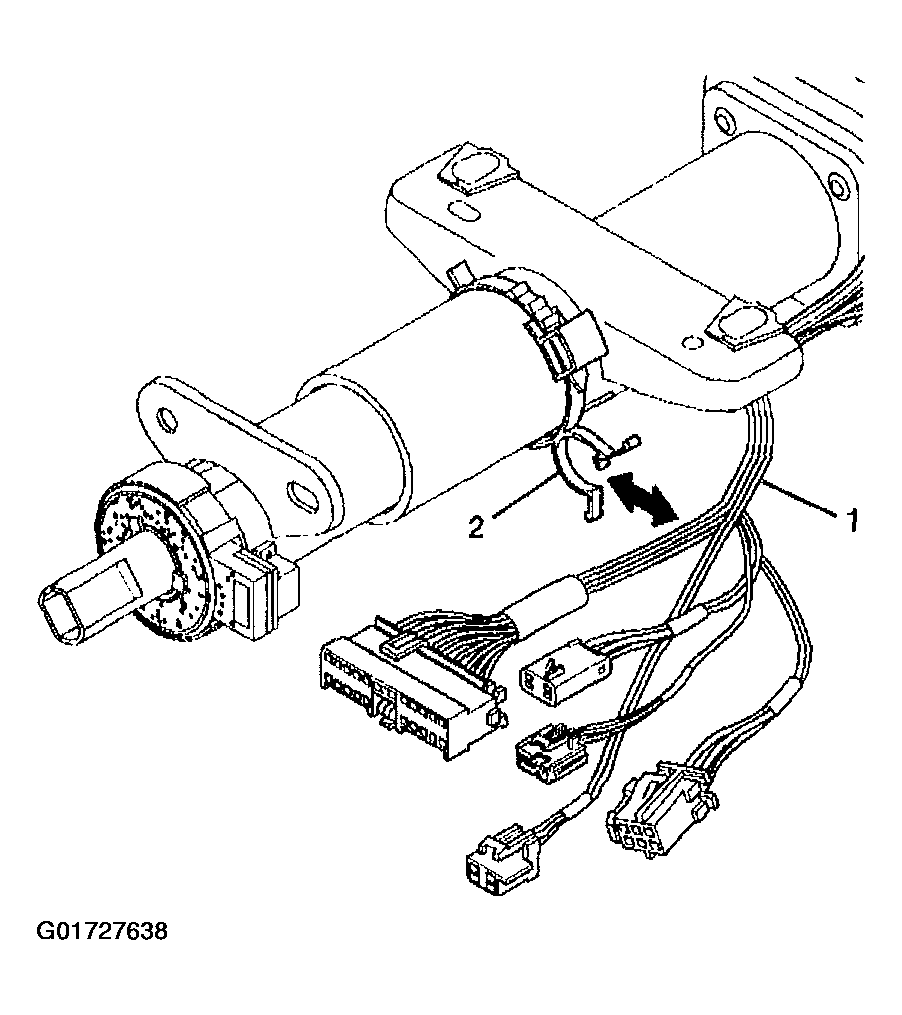

    Fig 1: Disconnecting Steering Column Wiring Harness
    G01727638Courtesy of GENERAL MOTORS CORP.
  5. Remove the wire harness straps (2) from the steering column tilt head assembly.

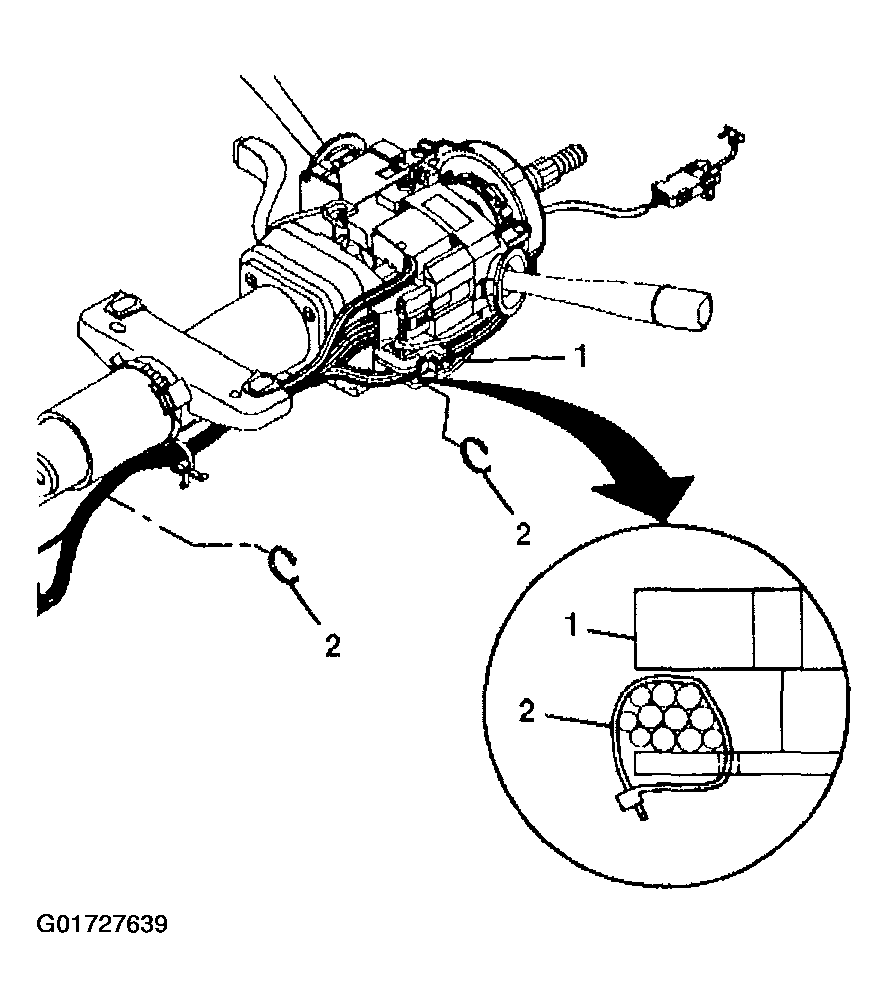

    Fig 2: Removing Steering Column Wiring Harness Straps
    G01727639Courtesy of GENERAL MOTORS CORP.
  6. Depress the top and bottom clips on the windshield wiper and washer switch assembly.
  7. Slide the windshield wiper and washer switch assembly away from the electric column lock to disengage.

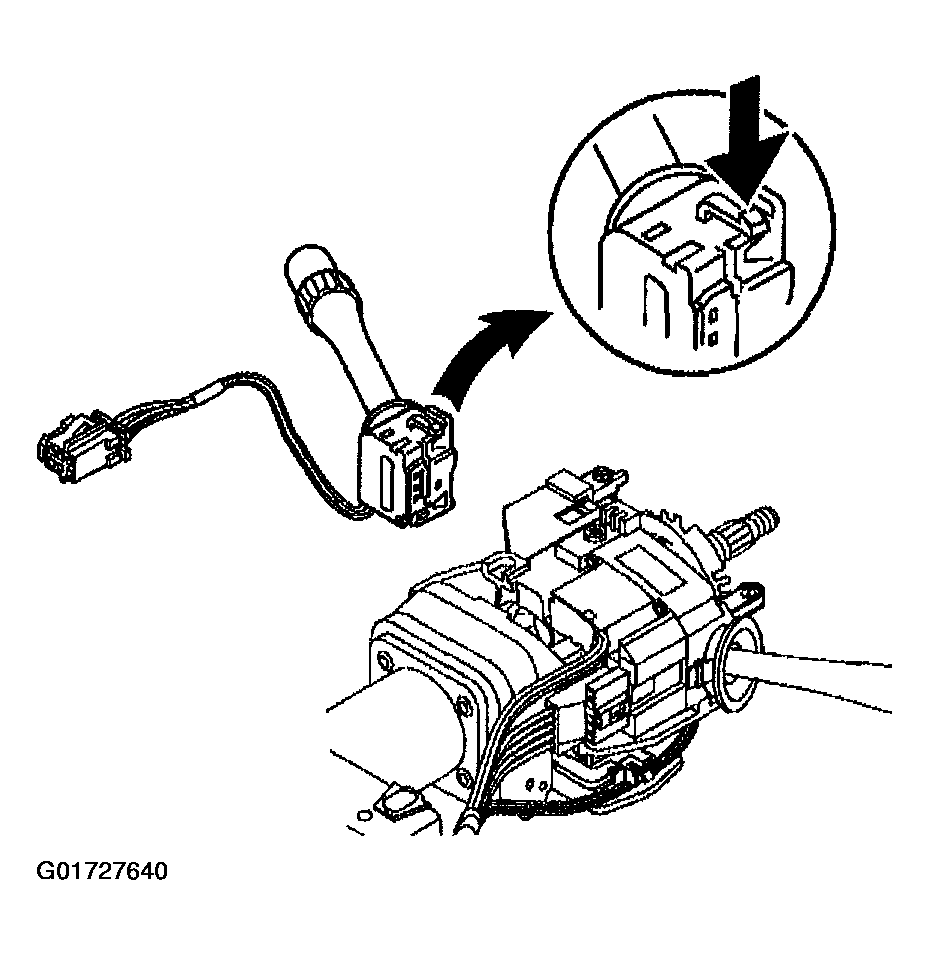

    Fig 3: Locating Windshield Wiper & Washer Switch Assembly Clips
    G01727640Courtesy of GENERAL MOTORS CORP.
  8. Remove the 3 pan head tapping screws (1).
  9. Remove the electric column lock (2) from the steering column tilt head assembly.

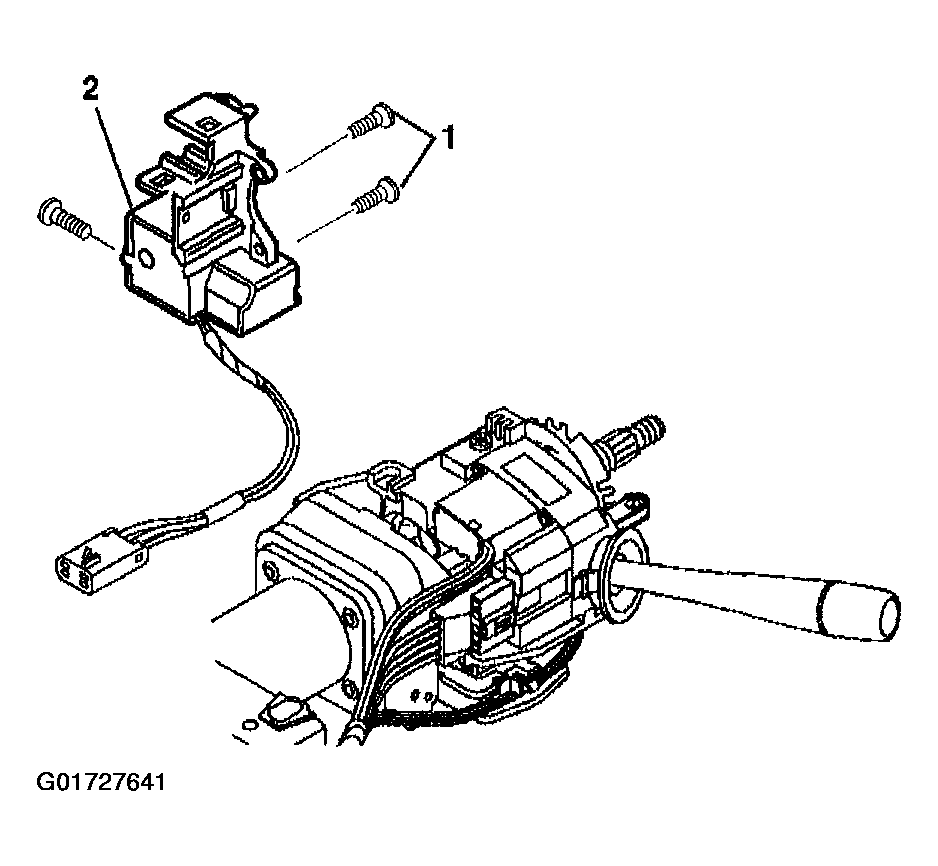

    Fig 4: Removing Electric Column Lock Module Screws
    G01727641Courtesy of GENERAL MOTORS CORP.
