Steering Column Disassembled View (Manual)

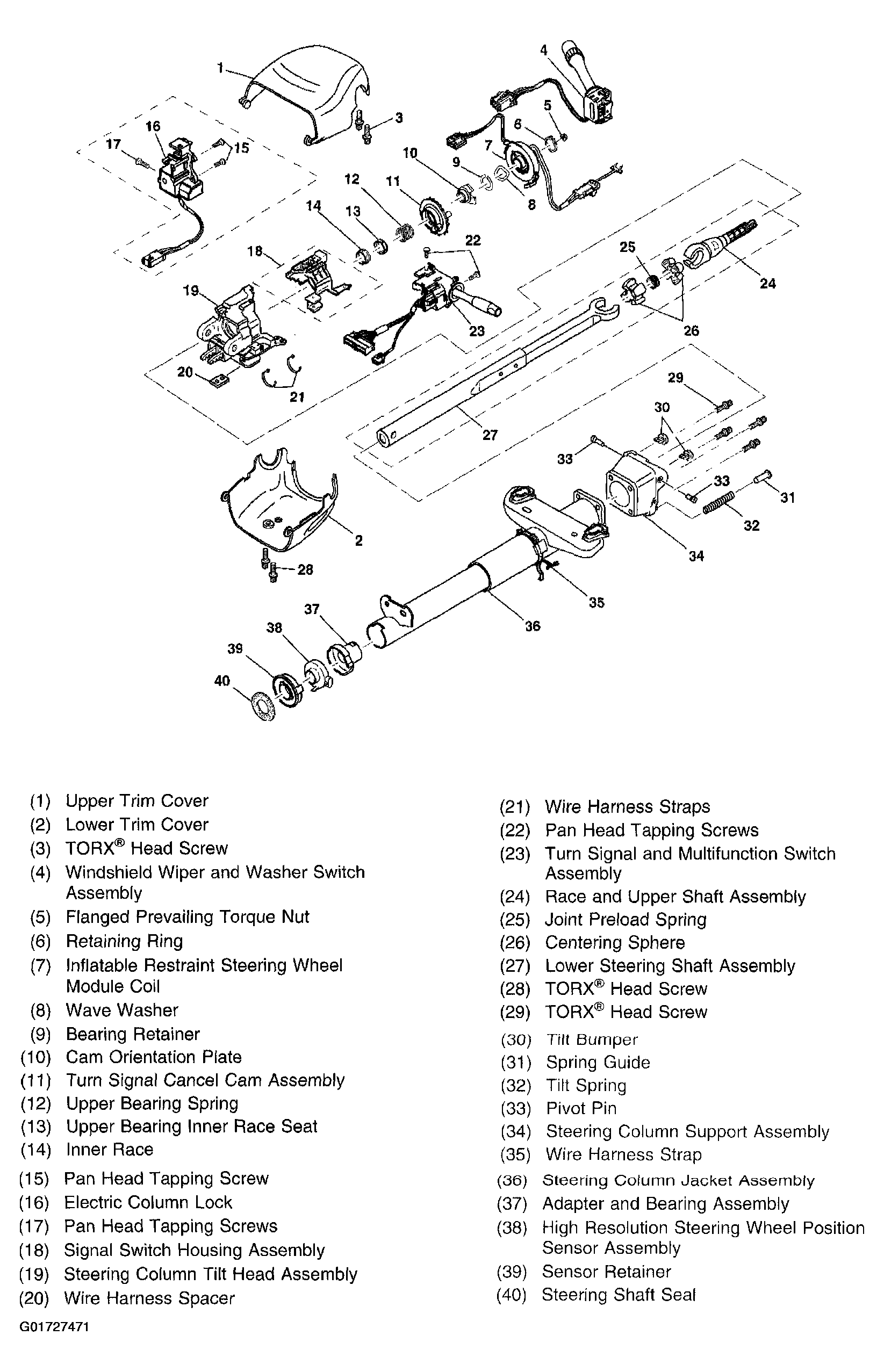

Fig 1: Tilt Steering Column

G01727471

Courtesy of GENERAL MOTORS CORP.
