Removal Procedure

CAUTION: Refer to EXHAUST SYSTEM INSPECTION NOTICE.
WARNING: Refer to PROTECTIVE GOGGLES & GLOVE CAUTION .
  1. Remove the rear stabilizer shaft bracket bolts and nuts.
  2. Remove the rear stabilizer shaft brackets and insulators.
  3. Position the stabilizer shaft downwards.

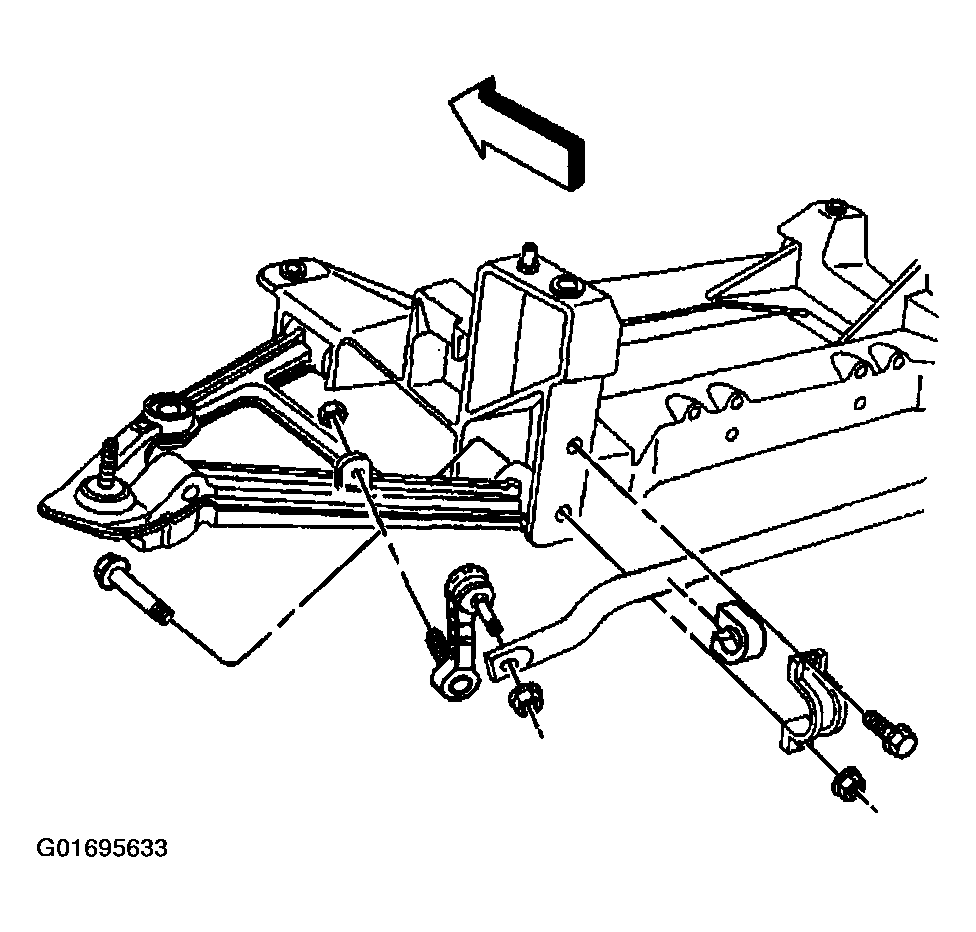

    Fig 1: Removing Rear Stabilizer Shaft Bracket Bolts
    G01695633Courtesy of GENERAL MOTORS CORP.
  4. Remove the left exhaust muffler bolts.
  5. Remove the exhaust muffler gasket.

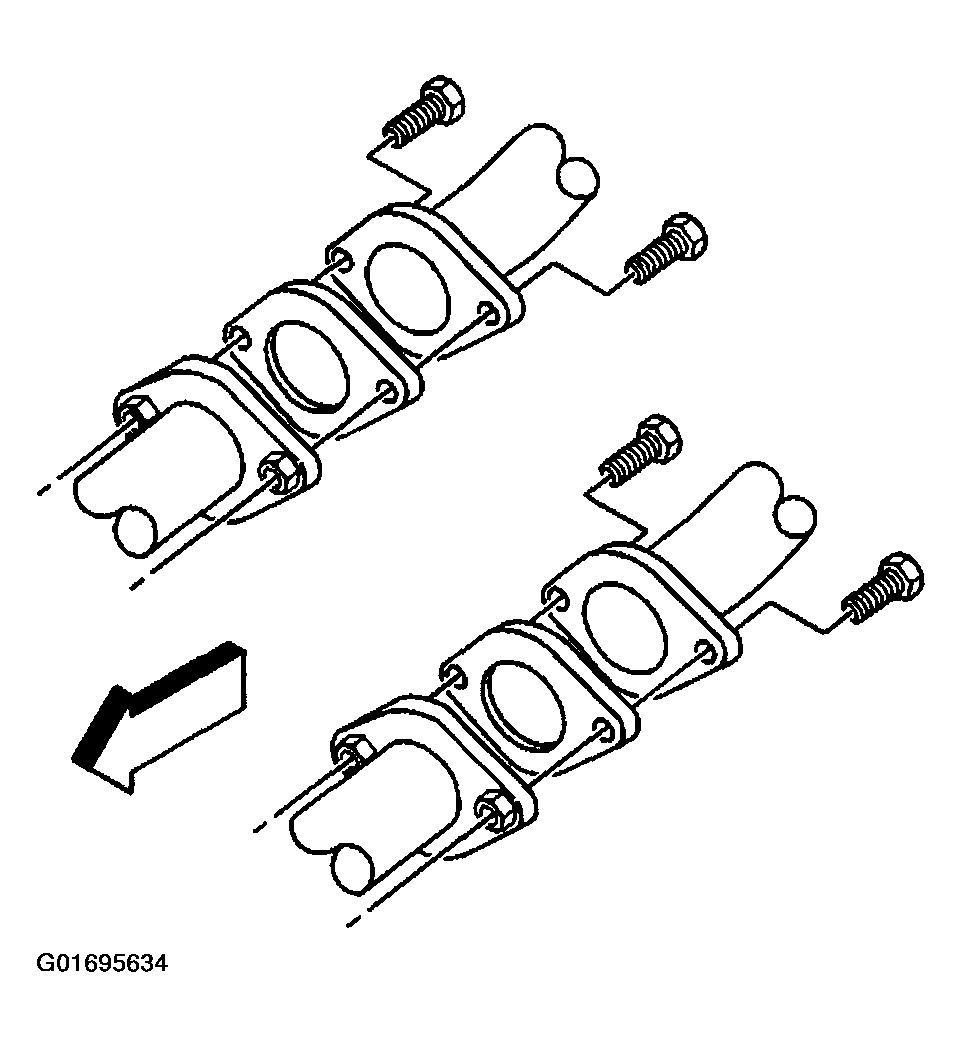

    Fig 2: Removing Left Exhaust Muffler Bolts
    G01695634Courtesy of GENERAL MOTORS CORP.
  6. Slide the muffler blade out from the hanger.
  7. Remove the left muffler.

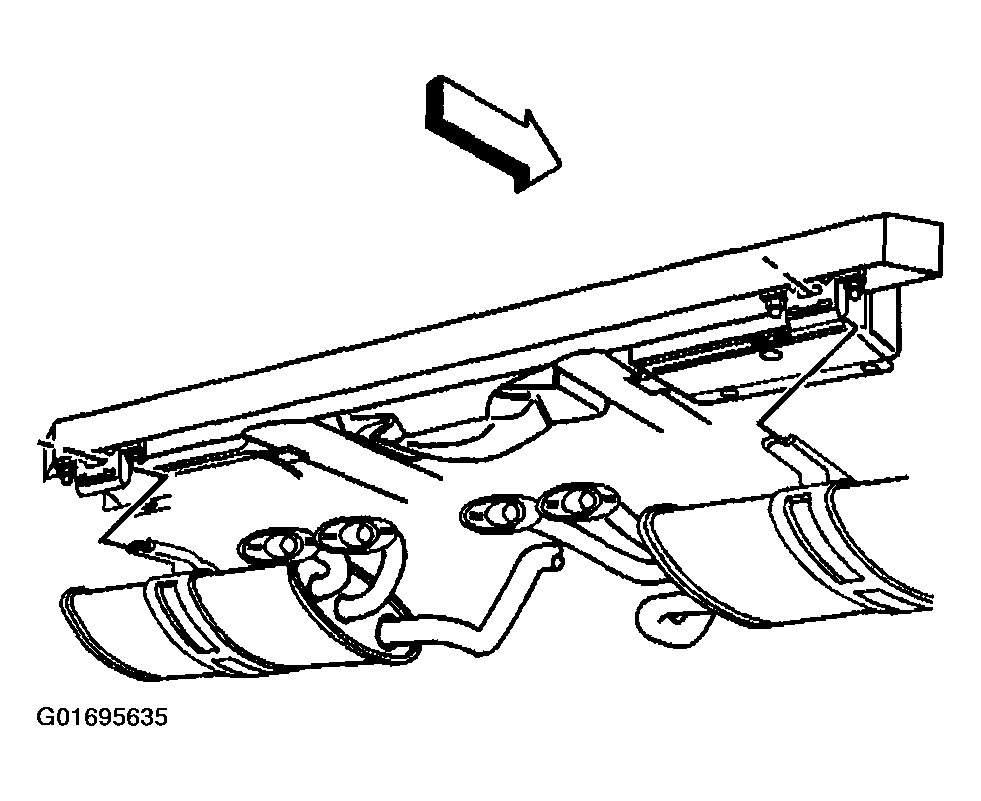

    Fig 3: Removing Muffler
    G01695635Courtesy of GENERAL MOTORS CORP.
