Installation Procedure

  1. Install the flat washer, the bushing, and the gripper washer to the clock spring pin.
  2. Install the clock spring with pin to the arm.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the clock spring nut.

    Tighten

    Tighten the nut to 4 N.m (35 lb in).

  4. Grasp the end of the clock spring with vice grips or pliers.
  5. Wind the clock spring and insert the end of the spring into the roof link pin.
  6. Reposition the folding top to the original position.

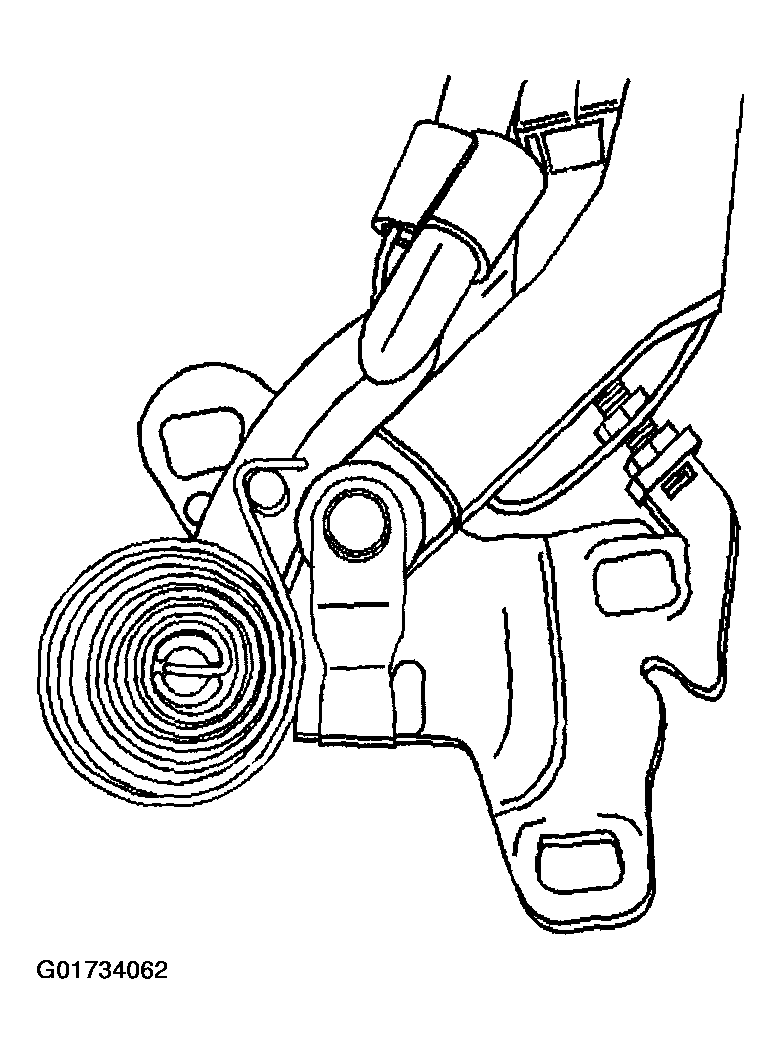

    Fig 1: Identifying Clock Spring
    G01734062Courtesy of GENERAL MOTORS CORP.
