Removal Procedure

  1. Remove the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR .
  2. Remove the cover from the I/P electrical center.
  3. Remove the RDO/CD MiniFuse® #5 from the I/P electrical center.
  4. Open the rear lift window panel.
  5. Remove the center rear storage compartment cover.
  6. Reposition the carpet in the center rear storage compartment to expose the base of the remote compact disc (CD) changer.
  7. Disconnect the electrical/audio connector from the remote compact disc (CD) changer.

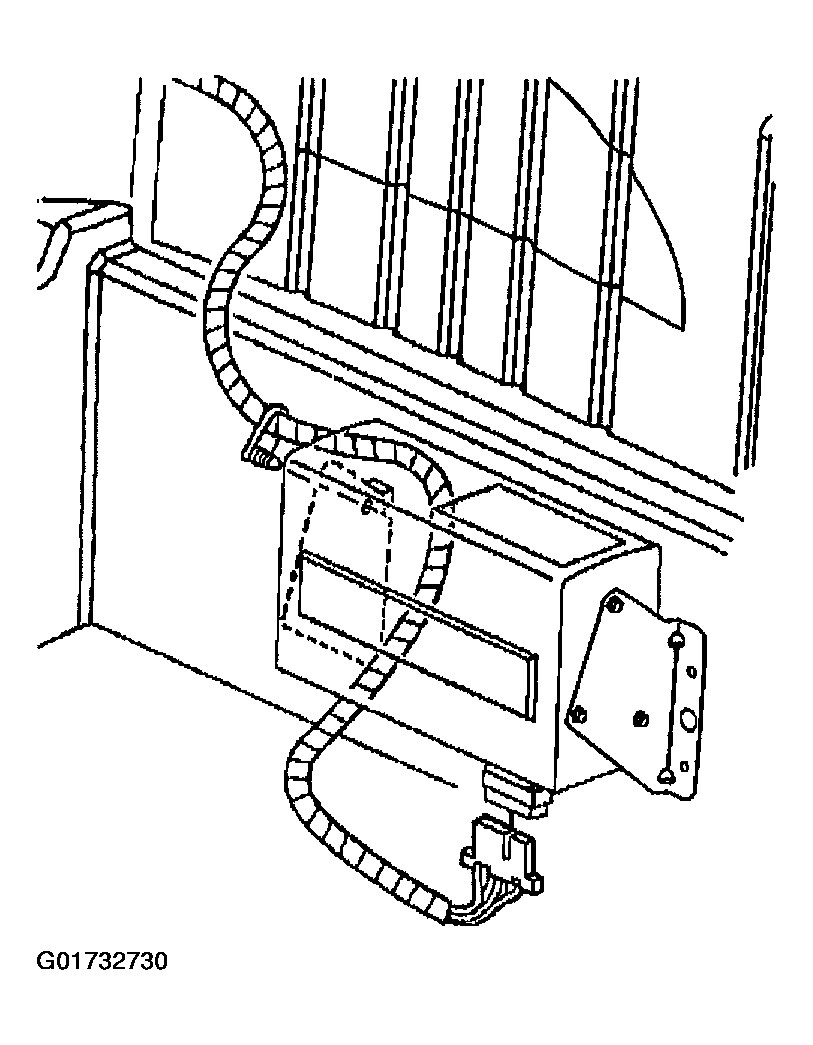

    Fig 1: Disconnecting Remote CD Changer Connector
    G01732730Courtesy of GENERAL MOTORS CORP.
  8. Remove the nuts mounting the remote CD changer to the center rear storage compartment rear wall.
  9. Remove the remote CD changer from the vehicle.

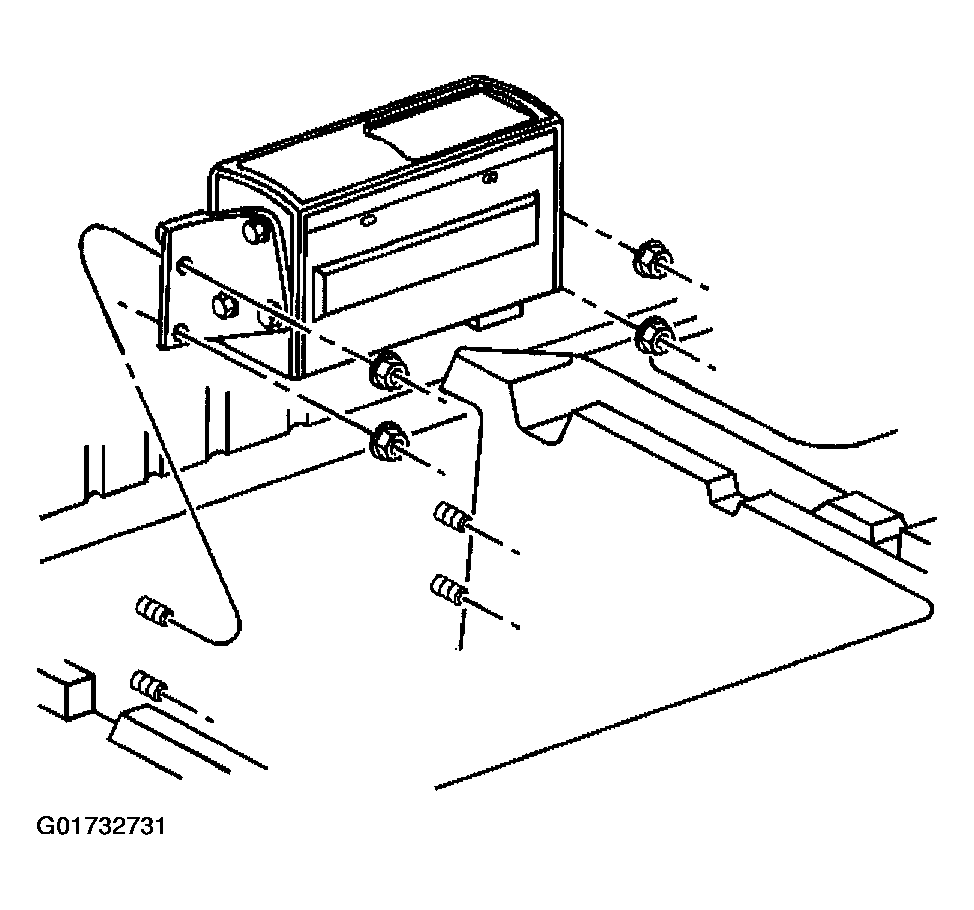

    Fig 2: Removing Remote CD Changer Mounting Nuts
    G01732731Courtesy of GENERAL MOTORS CORP.
  10. Remove the remote CD changer mounting bracket bolts.
  11. Remove the mounting brackets from the remote CD changer.

    Important:  Reinstall the transportation pin when shipping or transporting the remote CD changer.

  12. If shipping or transporting the remote CD changer, reinstall the transportation pin by inserting into the original position and fixing in place with clear tape.

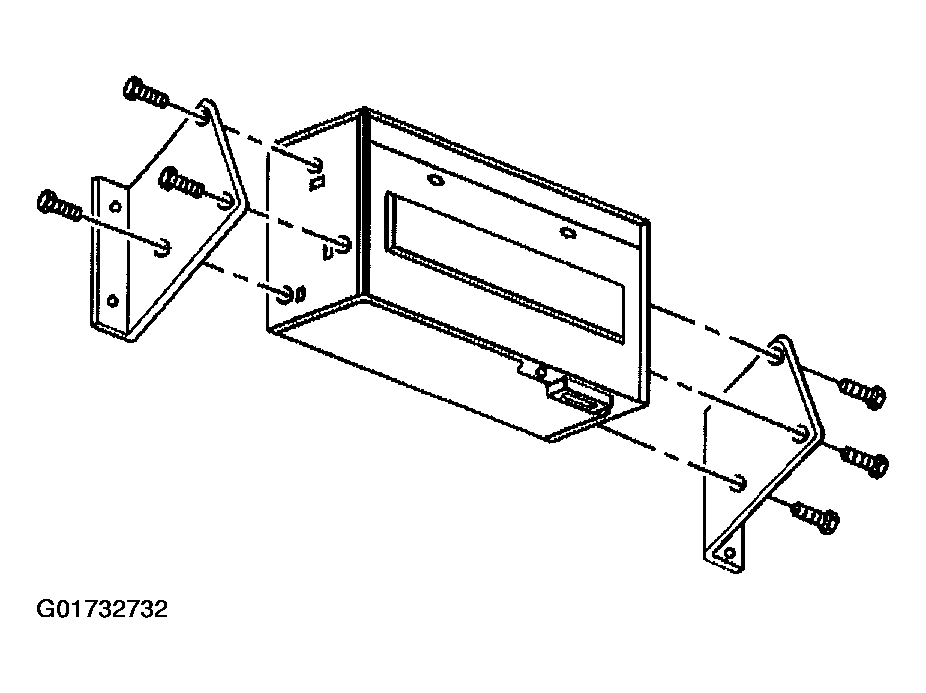

    Fig 3: Removing Remote CD Changer Mounting Bracket Bolts
    G01732732Courtesy of GENERAL MOTORS CORP.
