Installation Procedure

  1. Install the upper control arm into the frame brackets.
  2. Install the bolts, cams and washers to the control arm. Partially tighten the nuts in order to align the vehicle.
  3. Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  4. Remove the safety stands.
  5. Lower the vehicle.
  6. Align the vehicle. Refer to Front Caster and Camber Adjustment  or Front Toe Adjustment  .

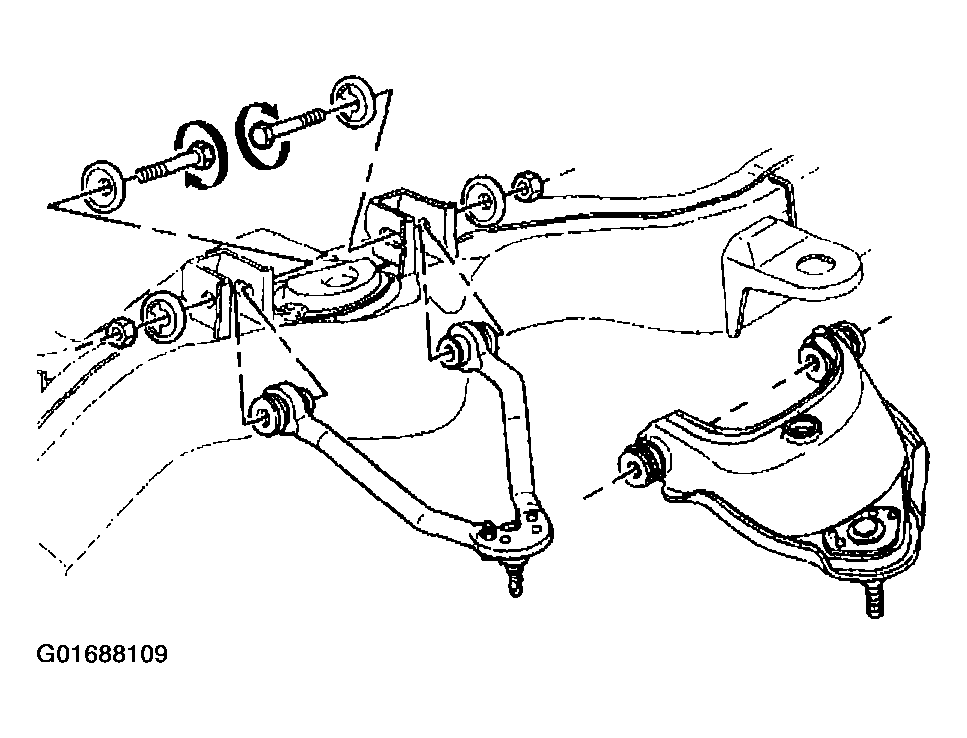

    Fig 1: Installing Bolts, Cams & Washers To Control Arm
    G01688109Courtesy of GENERAL MOTORS CORP.
