Engine Block Plug Installation

Tools Required

J 41712  Oil Pressure Sending Unit Socket

1. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the coolant hole plug.
   NOTE: Refer to FASTENER NOTICE .
2. Install the engine coolant hole plug into the block.

   Tighten

   Tighten the engine coolant hole plug to 60 N.m (40 lb ft).

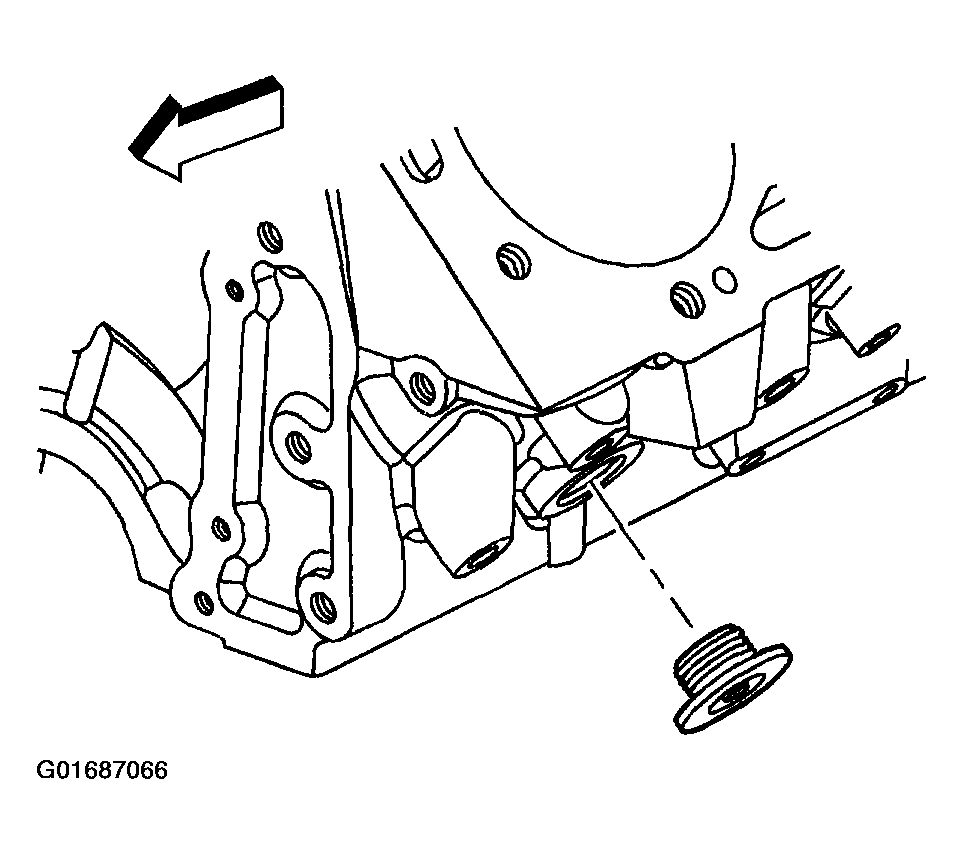

   Fig 1: Install Engine Coolant Hole Plug

   Courtesy of GENERAL MOTORS CORP.
3. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the engine block heater, if applicable.
4. Install the engine block heater into the block.

   Tighten

   Tighten the engine block heater to 50 N.m (37 lb ft).

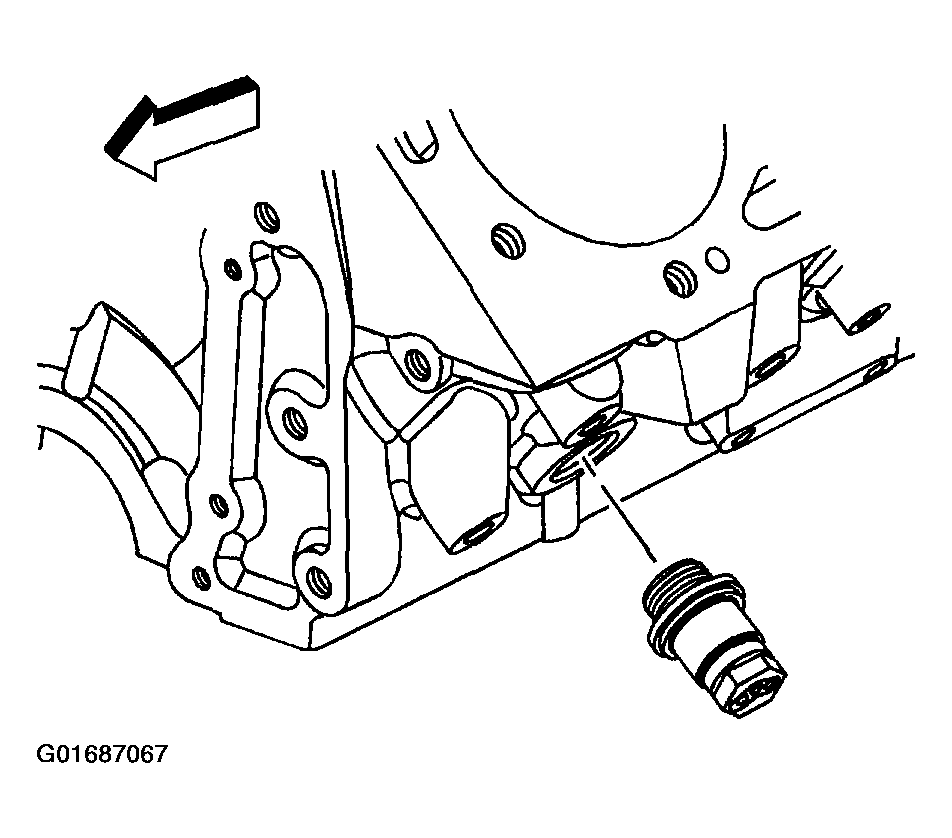

   Fig 2: Install Engine Block Heater

   Courtesy of GENERAL MOTORS CORP.
5. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the oil gallery plugs.
6. Install the engine block top oil gallery plugs.

   Tighten

   Tighten the top oil gallery plugs to 20 N.m (15 lb ft).

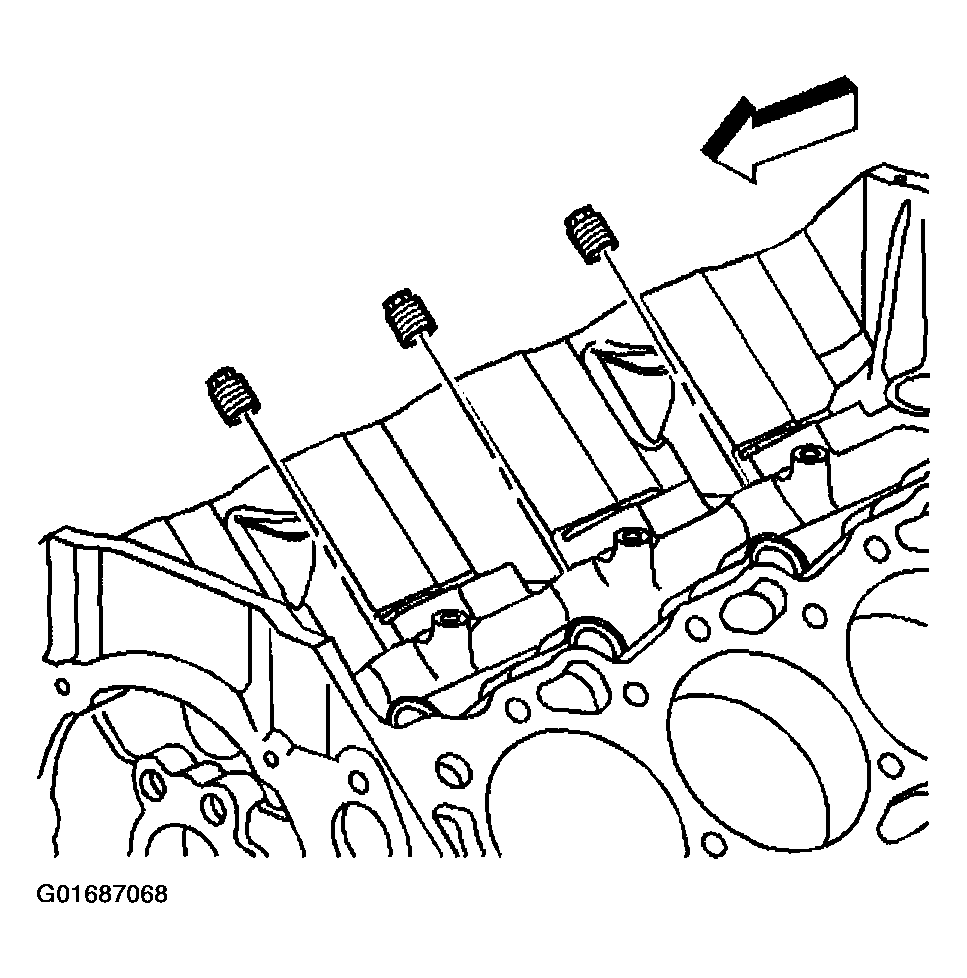

   Fig 3: Install Engine Block Top Oil Gallery Plugs

   Courtesy of GENERAL MOTORS CORP.
7. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the oil gallery plug.
8. Install the engine block left side oil gallery plug.

   Tighten

   Tighten the left oil gallery plug to 30 N.m (22 lb ft).

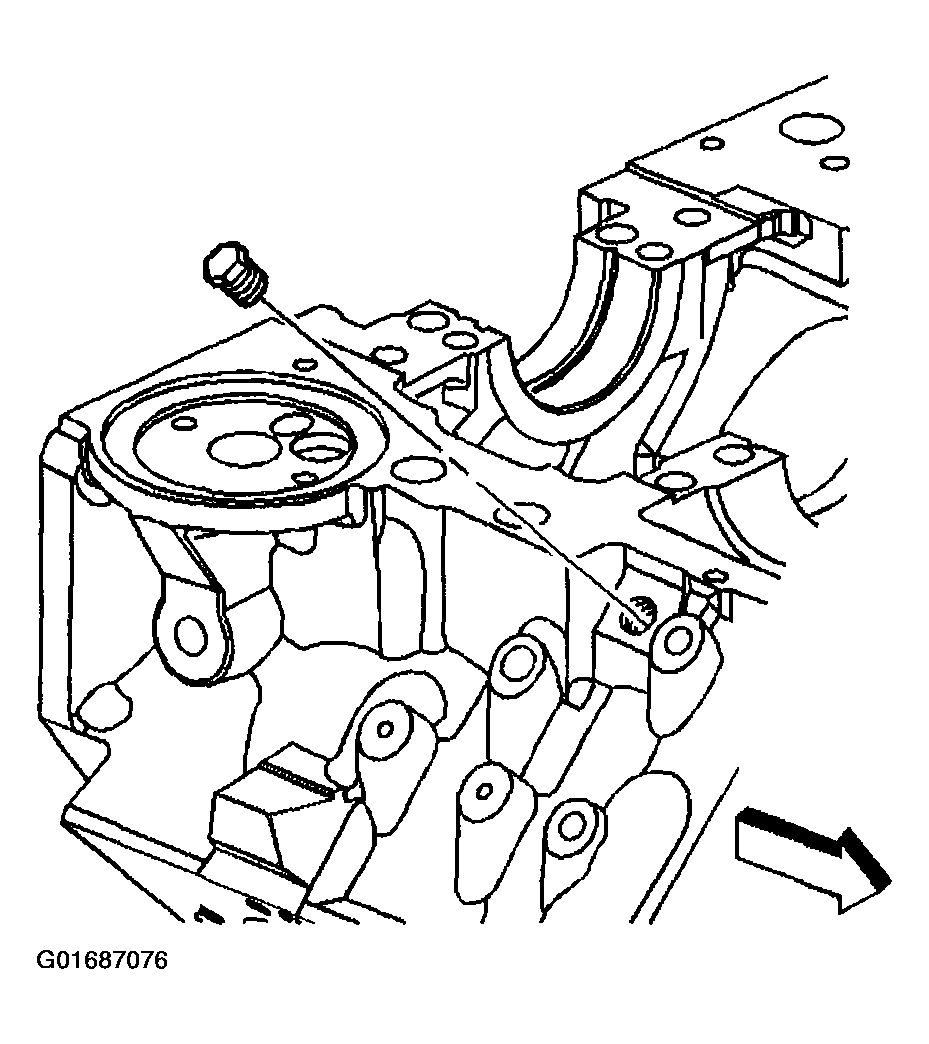

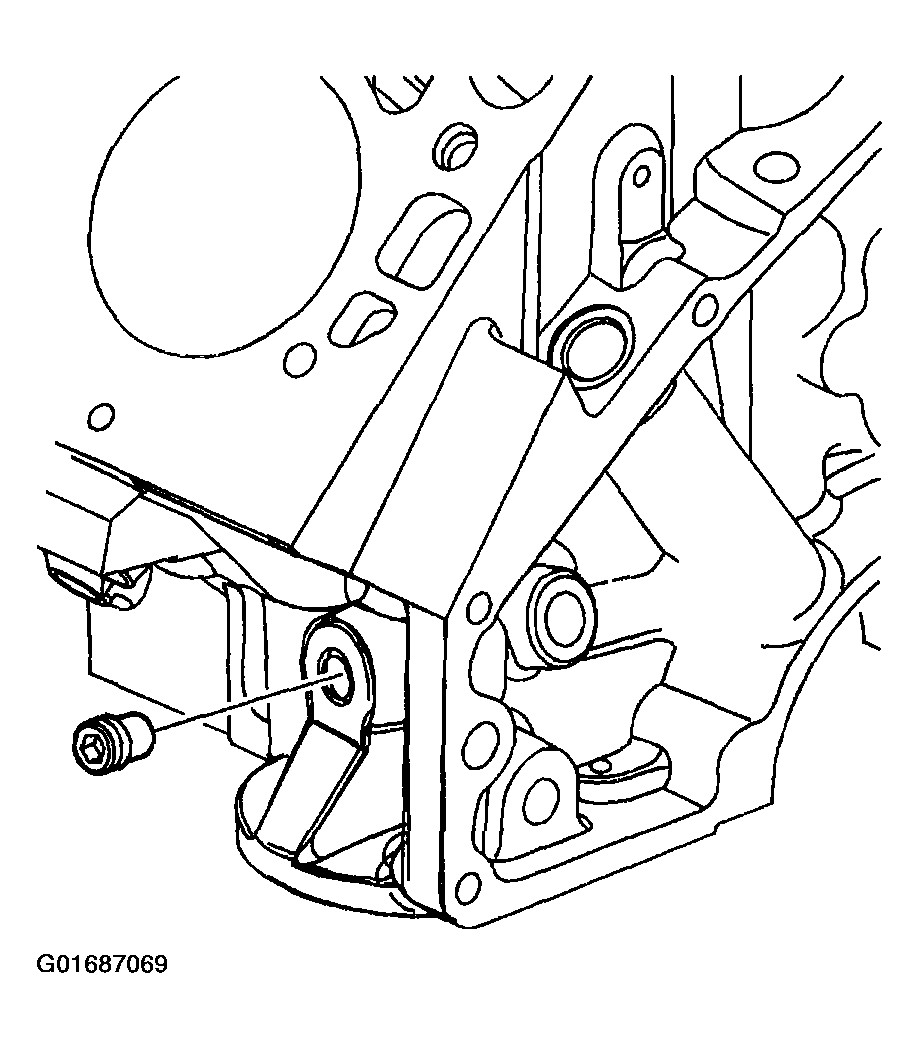

   Fig 4: Install Engine Block Left Side Oil Gallery Plug

   Courtesy of GENERAL MOTORS CORP.
9. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the oil gallery plugs.
10. Install the front oil gallery plugs.

    Tighten

    Tighten the front oil gallery plugs to 30 N.m (22 lb ft).

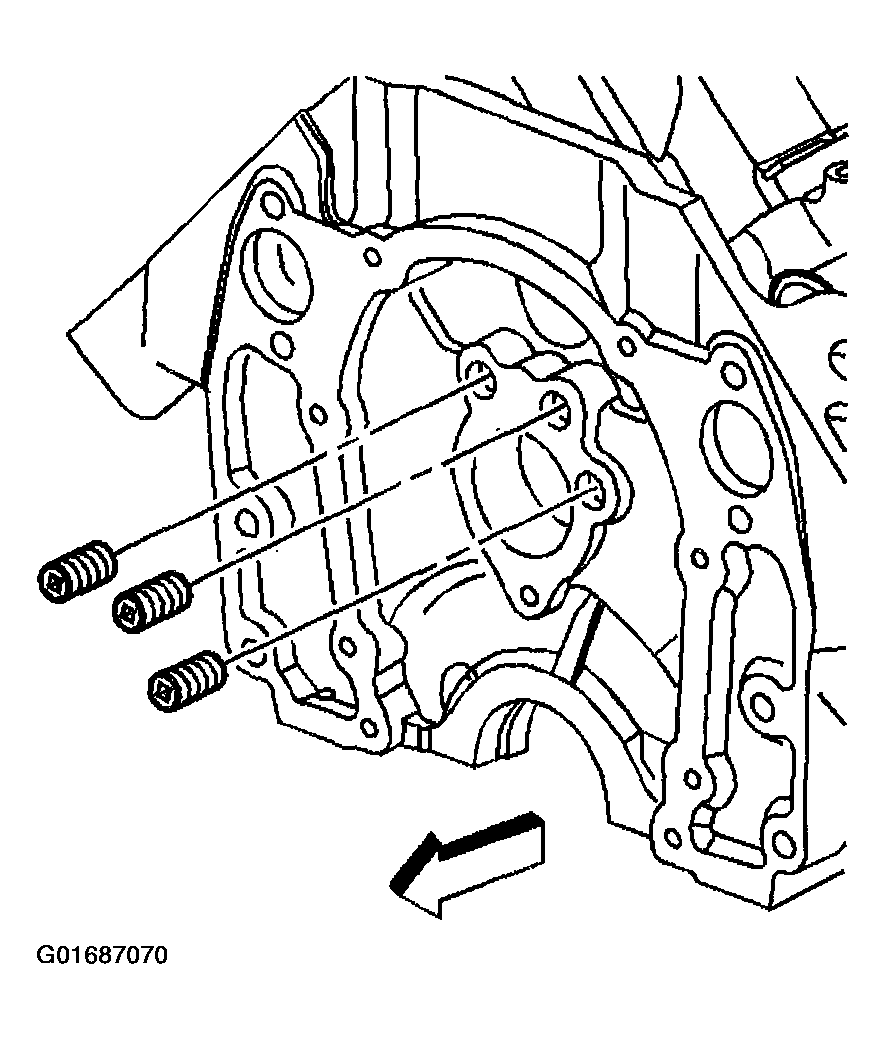

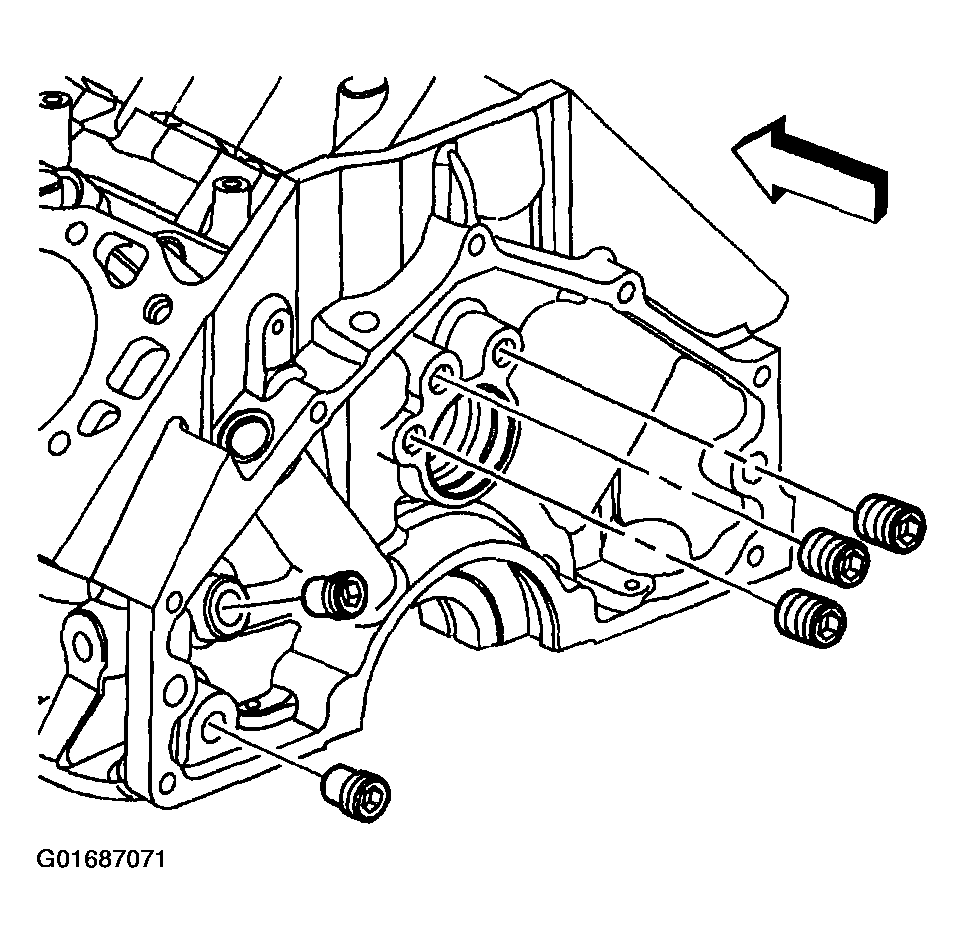

    Fig 5: Install Front Oil Gallery Plugs

    Courtesy of GENERAL MOTORS CORP.
11. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the oil gallery plugs.
12. Install the rear oil gallery plugs.

    Tighten

    Tighten the rear oil gallery plugs to 30 N.m (22 lb ft).

    Fig 6: Install Rear Oil Gallery Plugs

    Courtesy of GENERAL MOTORS CORP.
13. Apply thread adhesive GM P/N United States 12345493, GM P/N Canada 10953488, or equivalent to the threads of the engine block oil cooler hose fittings.
14. Install the engine block oil cooler hose fittings.

    Tighten

    Tighten the engine block oil cooler hose fittings to 23 N.m (17 lb ft).

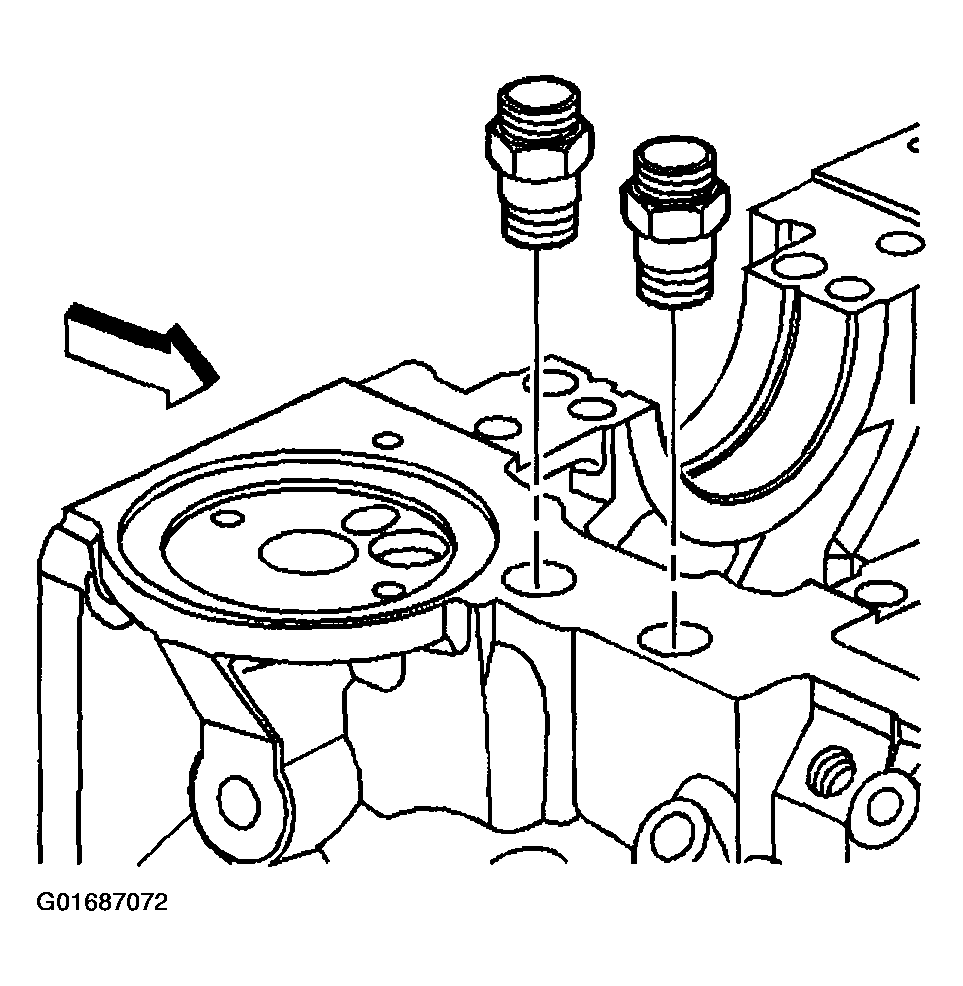

    Fig 7: Install Engine Block Oil Cooler Hose Fittings

    Courtesy of GENERAL MOTORS CORP.

    Important:  Do not overtighten the knock sensor.

15. Install the left knock sensor to the engine block.

    Tighten

    Tighten the left knock sensor to 20 N.m (15 lb ft).

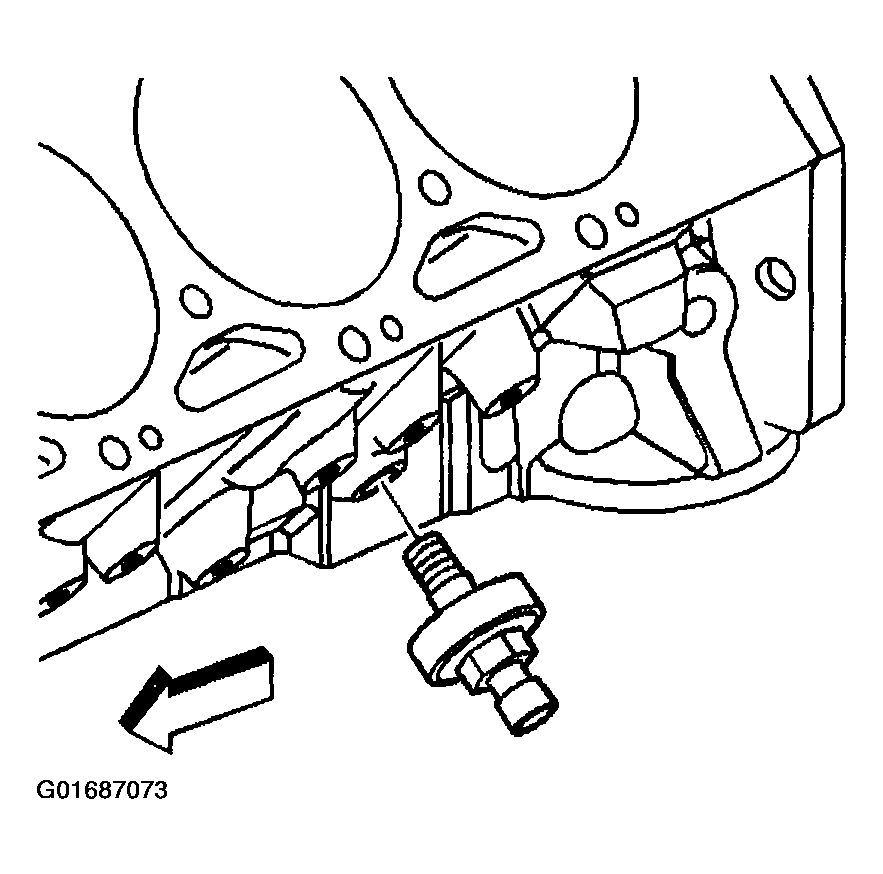

    Fig 8: Install Left Knock Sensor

    Courtesy of GENERAL MOTORS CORP.
16. Install the left side knock sensor shield.
17. Install the left side knock sensor shield bolts.

    Tighten

    Tighten the left side knock sensor shield bolts to 12 N.m (106 lb in).

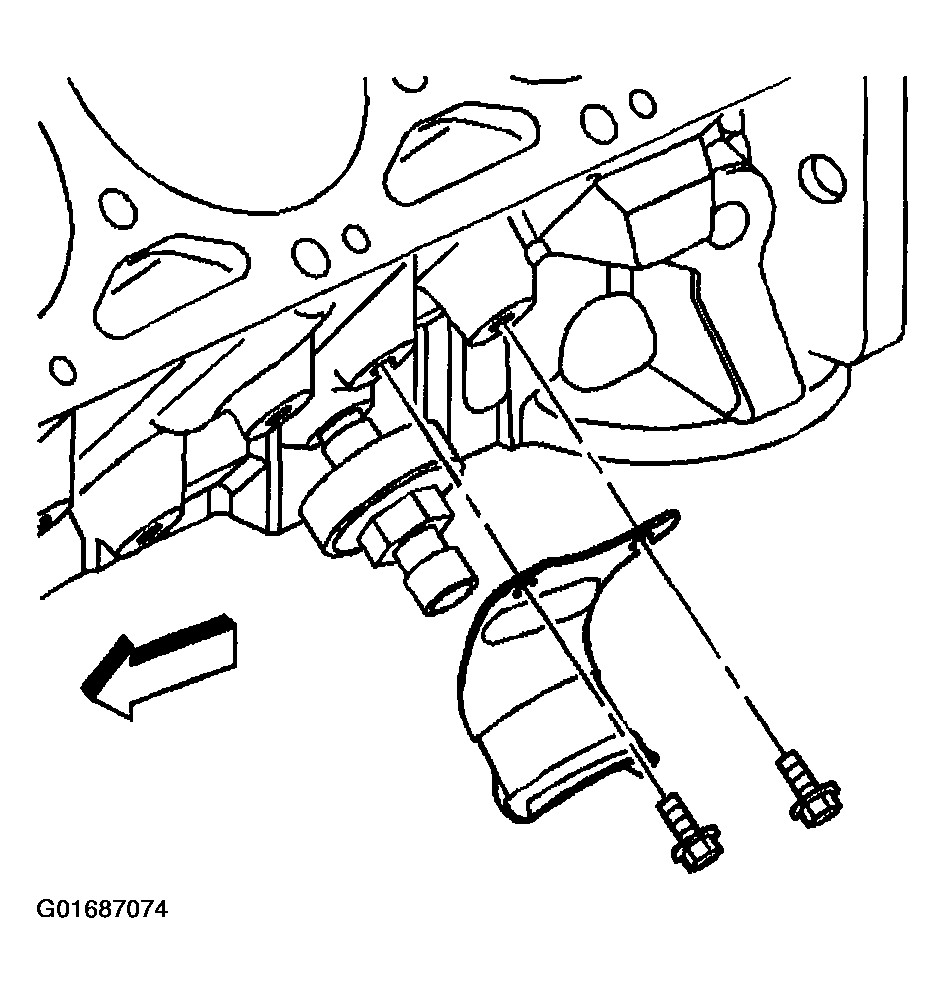

    Fig 9: Install Left Side Knock Sensor Shield & Bolts

    Courtesy of GENERAL MOTORS CORP.

    Important:  Do not overtighten the knock sensor.

18. Install the right knock sensor to the engine block.

    Tighten

    Tighten the right side knock sensor to 20 N.m (15 lb ft).

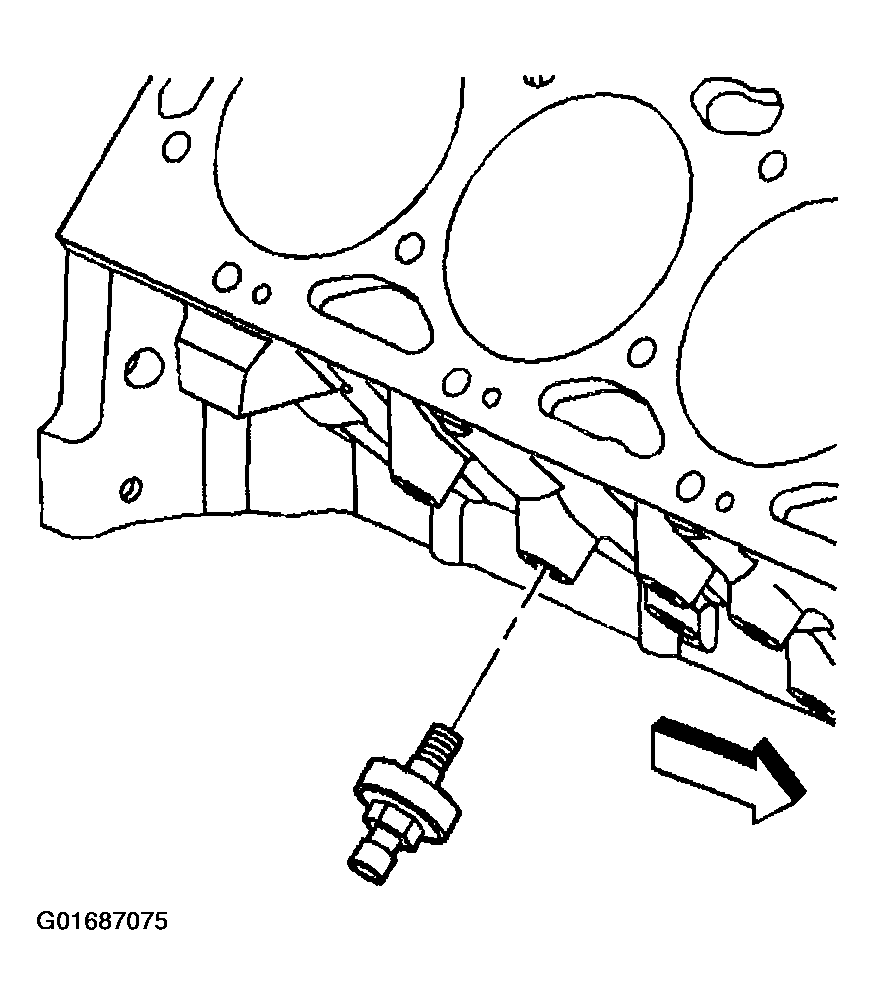

    Fig 10: Install Right Knock Sensor

    Courtesy of GENERAL MOTORS CORP.
19. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the engine block coolant drain hole plugs.
20. Install the engine block coolant drain hole plugs.

    Tighten

    Tighten the coolant drain hole plugs to 30 N.m (22 lb ft).

    Fig 11: Install Engine Block Coolant Drain Hole Plugs

    Courtesy of GENERAL MOTORS CORP.
21. Apply sealer GM P/N United States 12377901, GM P/N Canada 10953504, to the outside diameter of the new camshaft rear bearing hole plug.

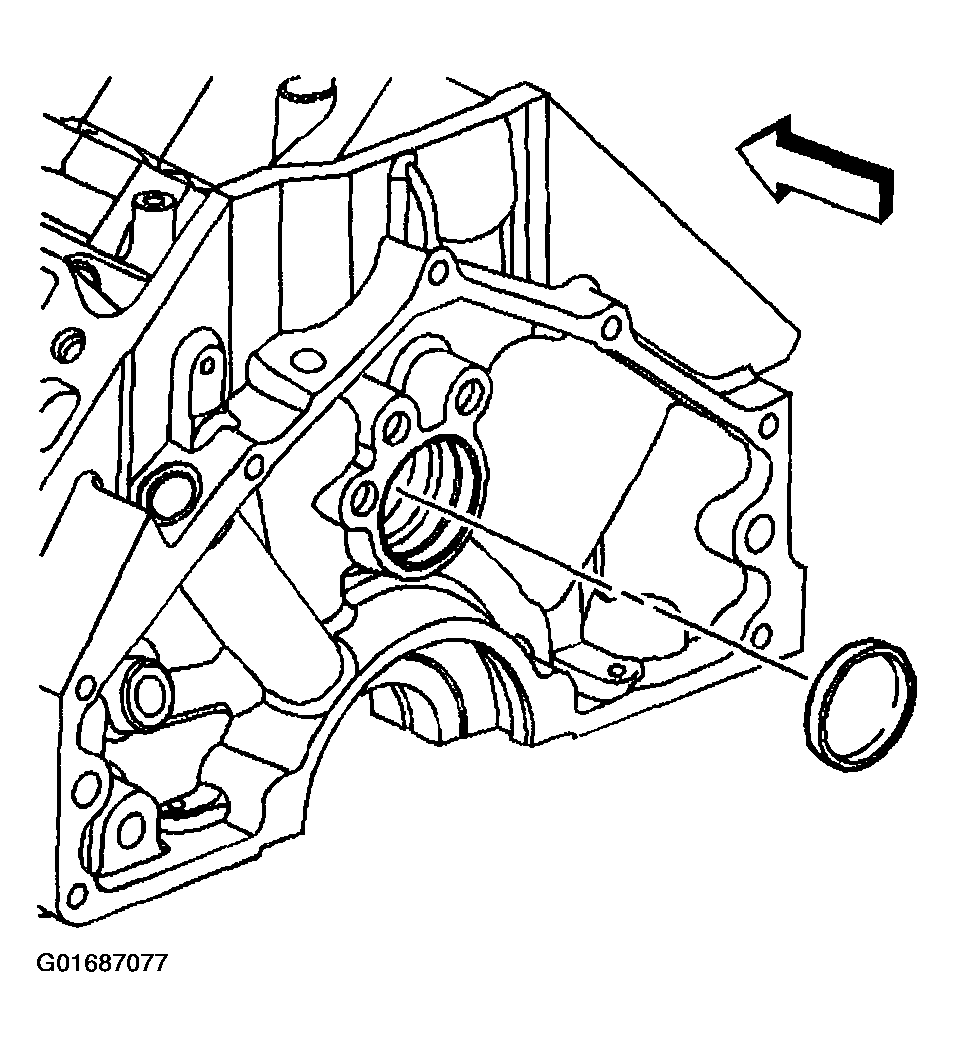

    Fig 12: Apply Sealant To Outside Diameter Of New Camshaft Rear Bearing Hole Plug

    Courtesy of GENERAL MOTORS CORP.
22. Install the NEW camshaft rear bearing hole plug to the proper depth of (A) 7.600-6.200 mm (0.299-0.244 in).

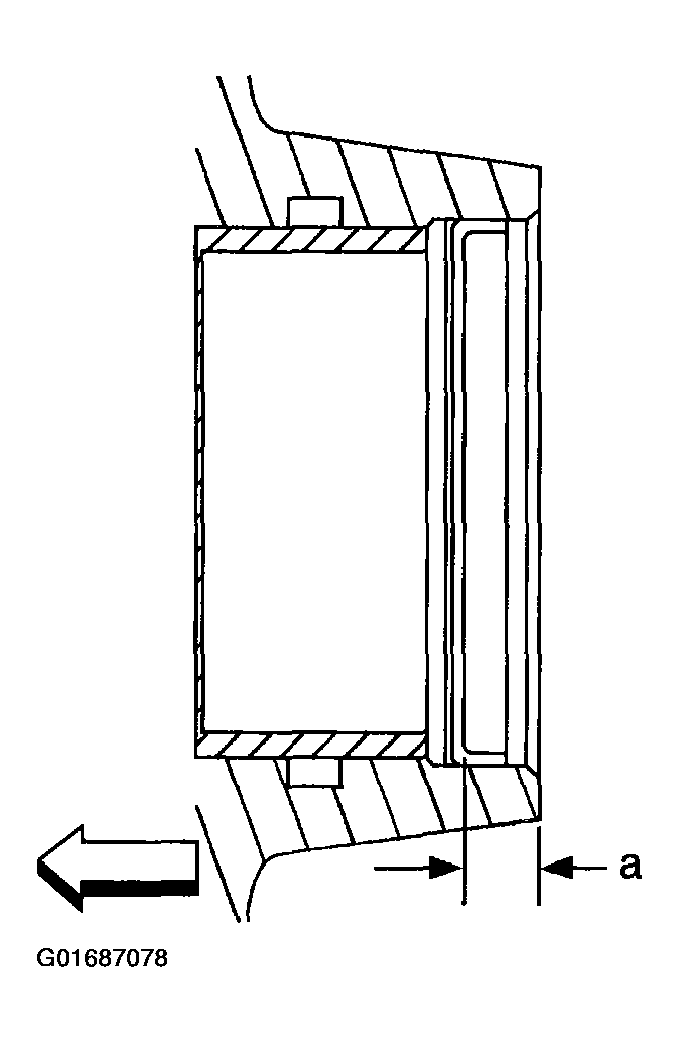

    Fig 13: Proper Depth For New Camshaft Rear Bearing Hole Plug

    Courtesy of GENERAL MOTORS CORP.
23. Apply sealant GM P/N United States 12346004, GM P/N Canada 10953480, or equivalent to the threads of the oil pressure sensor.
24. Install the oil pressure sensor.

    Tighten

    Using the J 41712  , tighten the oil pressure sensor to 30 N.m (22 lb ft).

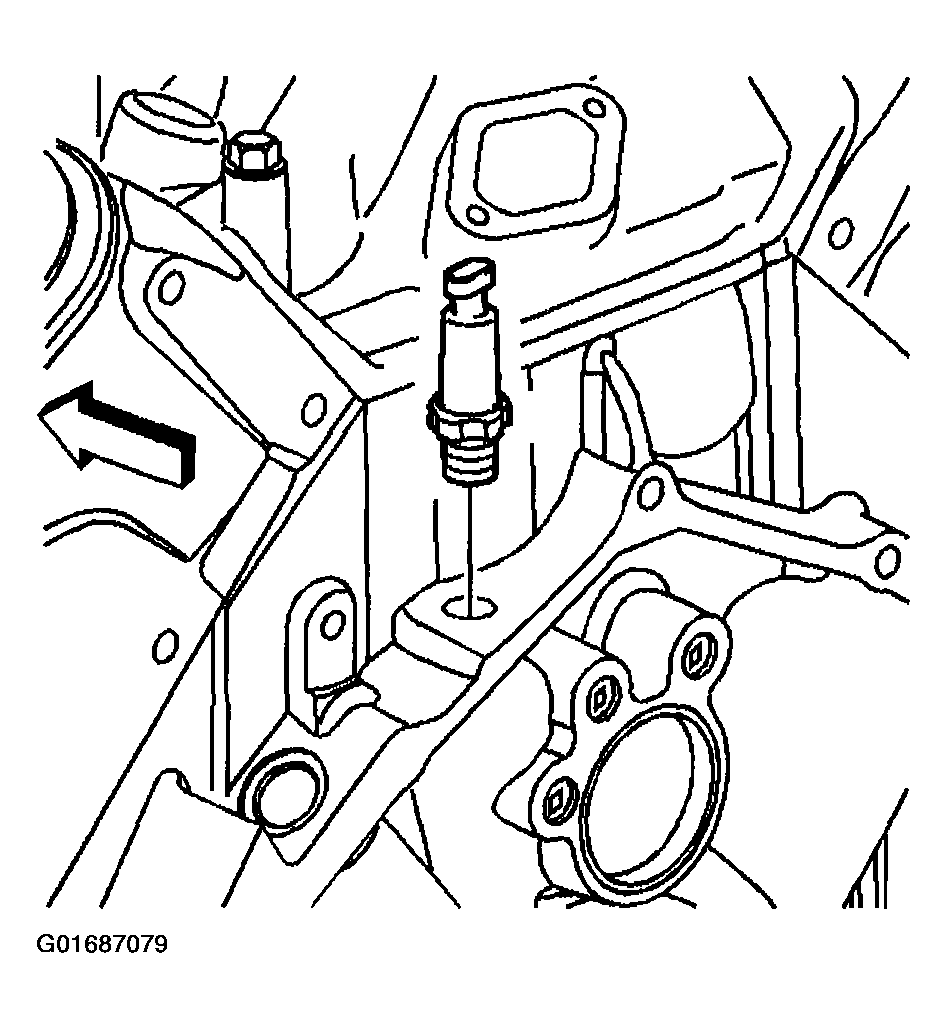

    Fig 14: Install Oil Pressure Sensor

    Courtesy of GENERAL MOTORS CORP.
