Disassembled Views

WARNING: This page is about a different variant/trim than selected.

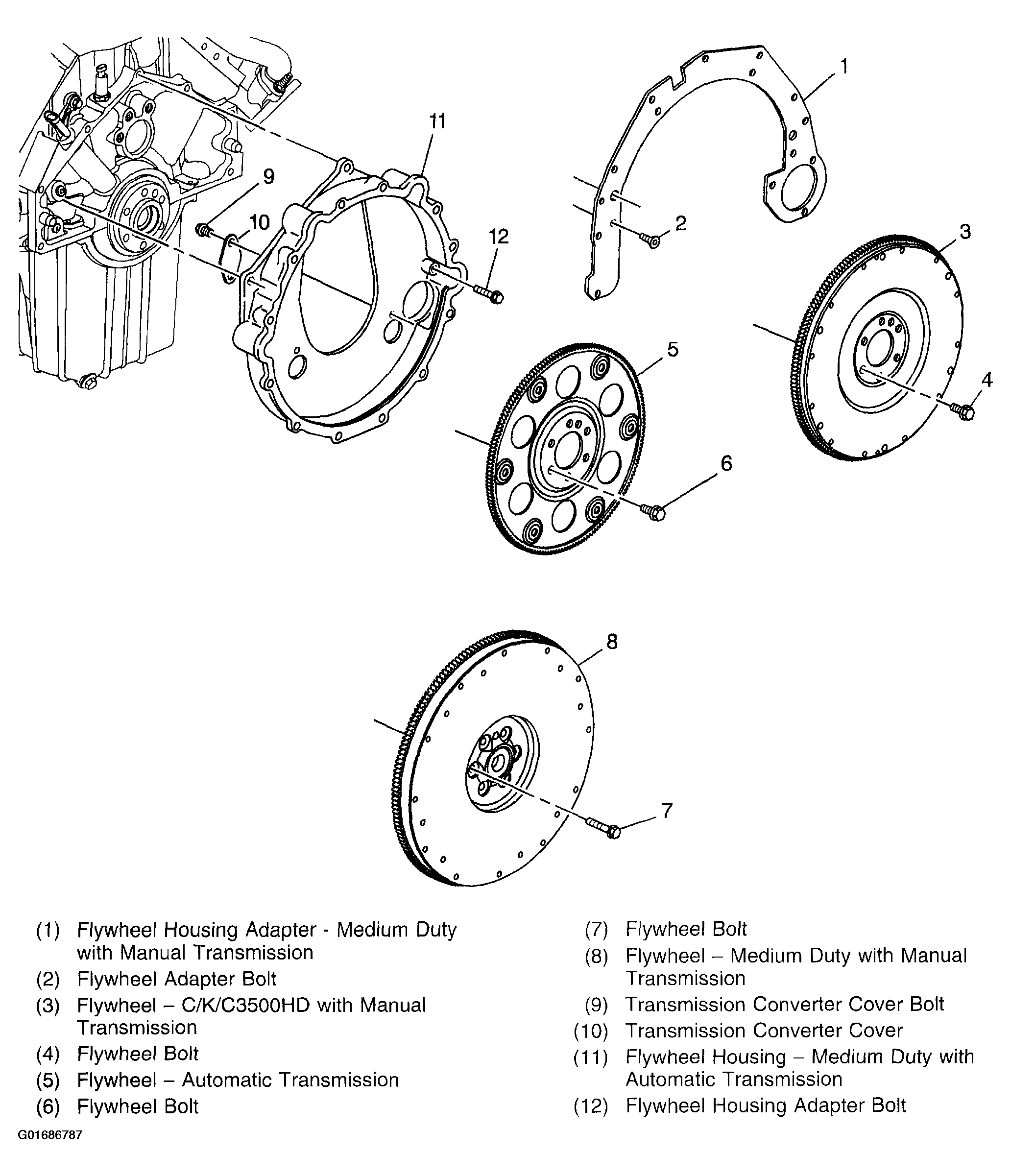

Fig 1: Engine Flywheel And Flywheel Housing Components

Courtesy of GENERAL MOTORS CORP.

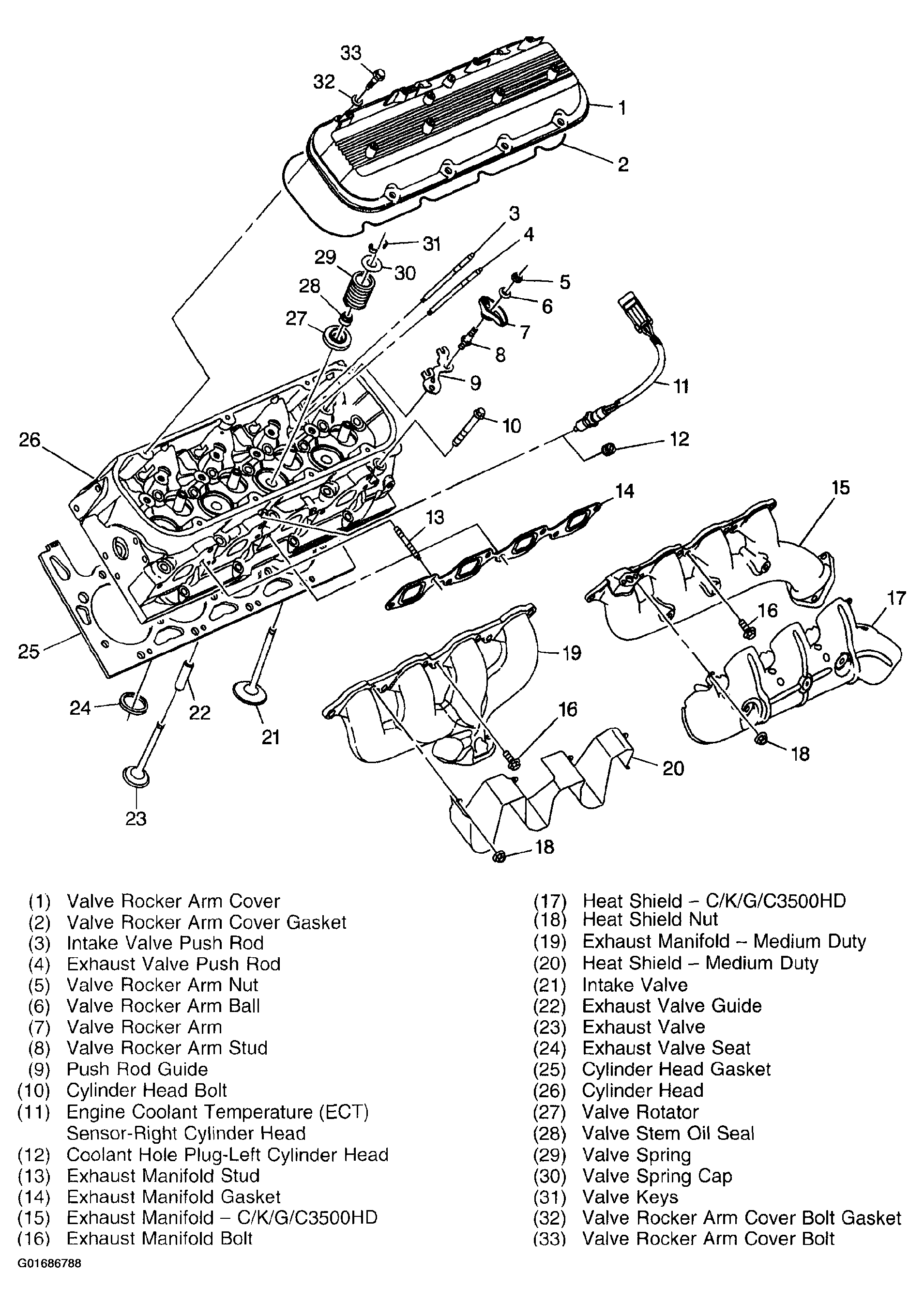

Fig 2: Cylinder Head And Components

Courtesy of GENERAL MOTORS CORP.

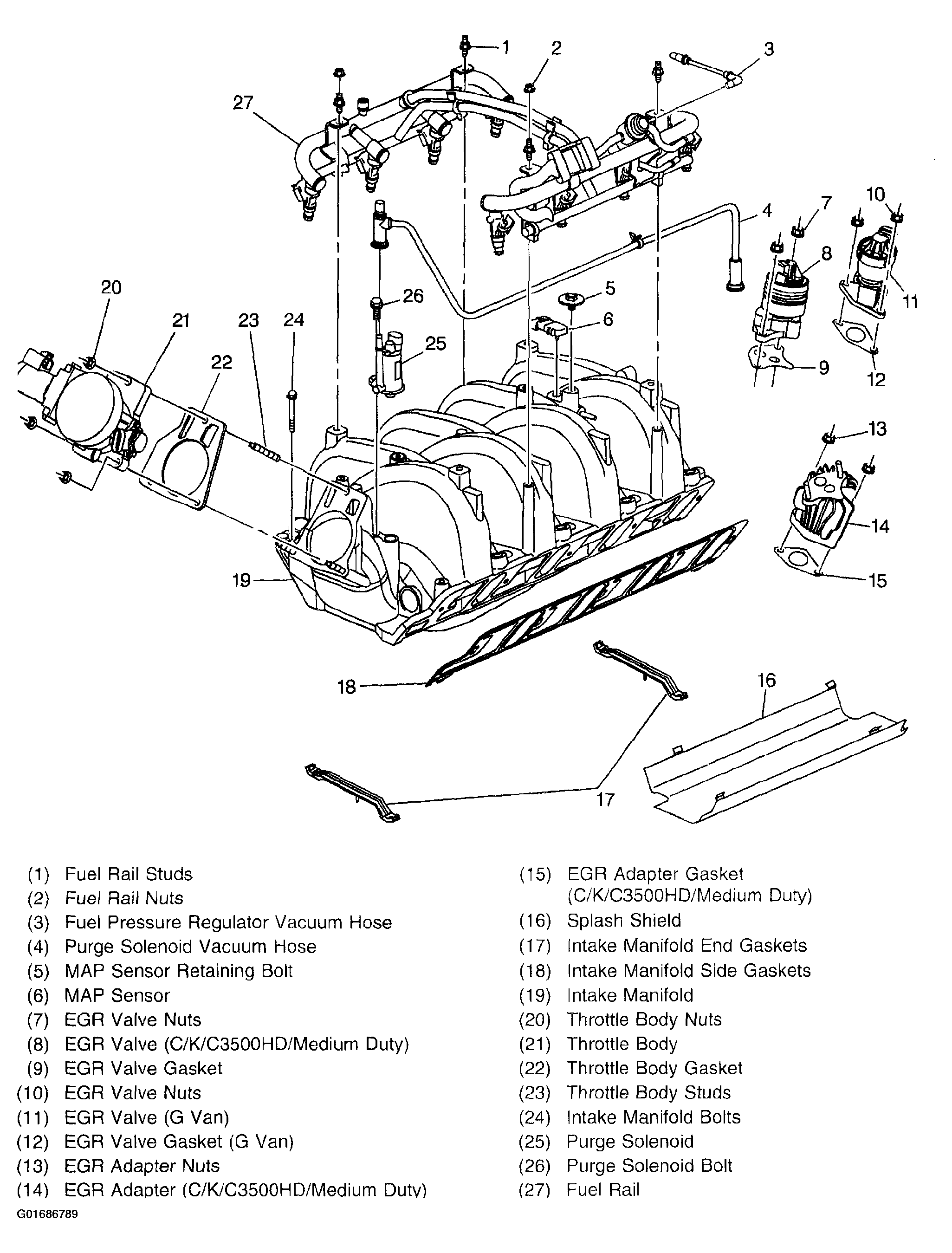

Fig 3: Intake Manifold And Components

Courtesy of GENERAL MOTORS CORP.

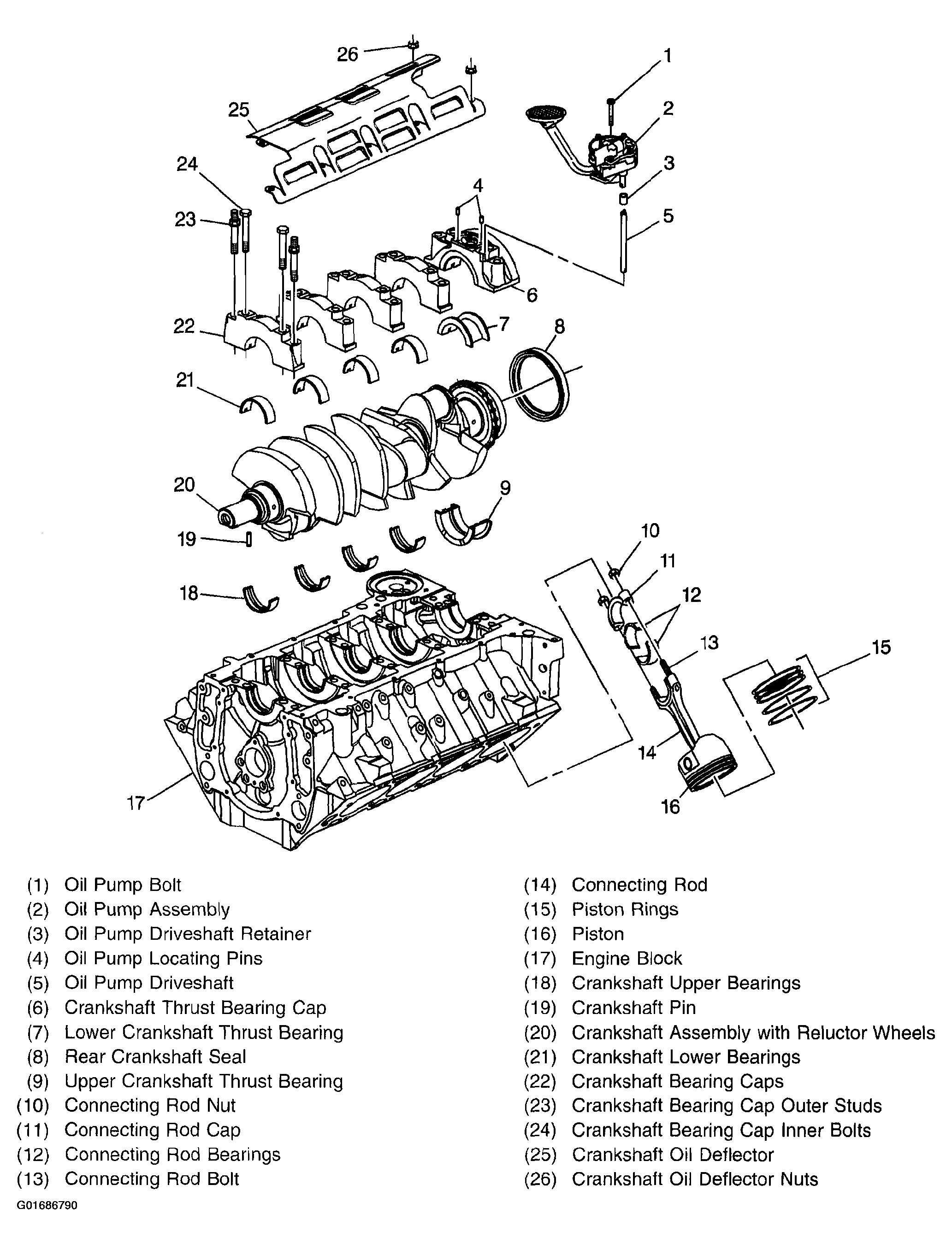

Fig 4: Engine Crankshaft And Components

Courtesy of GENERAL MOTORS CORP.

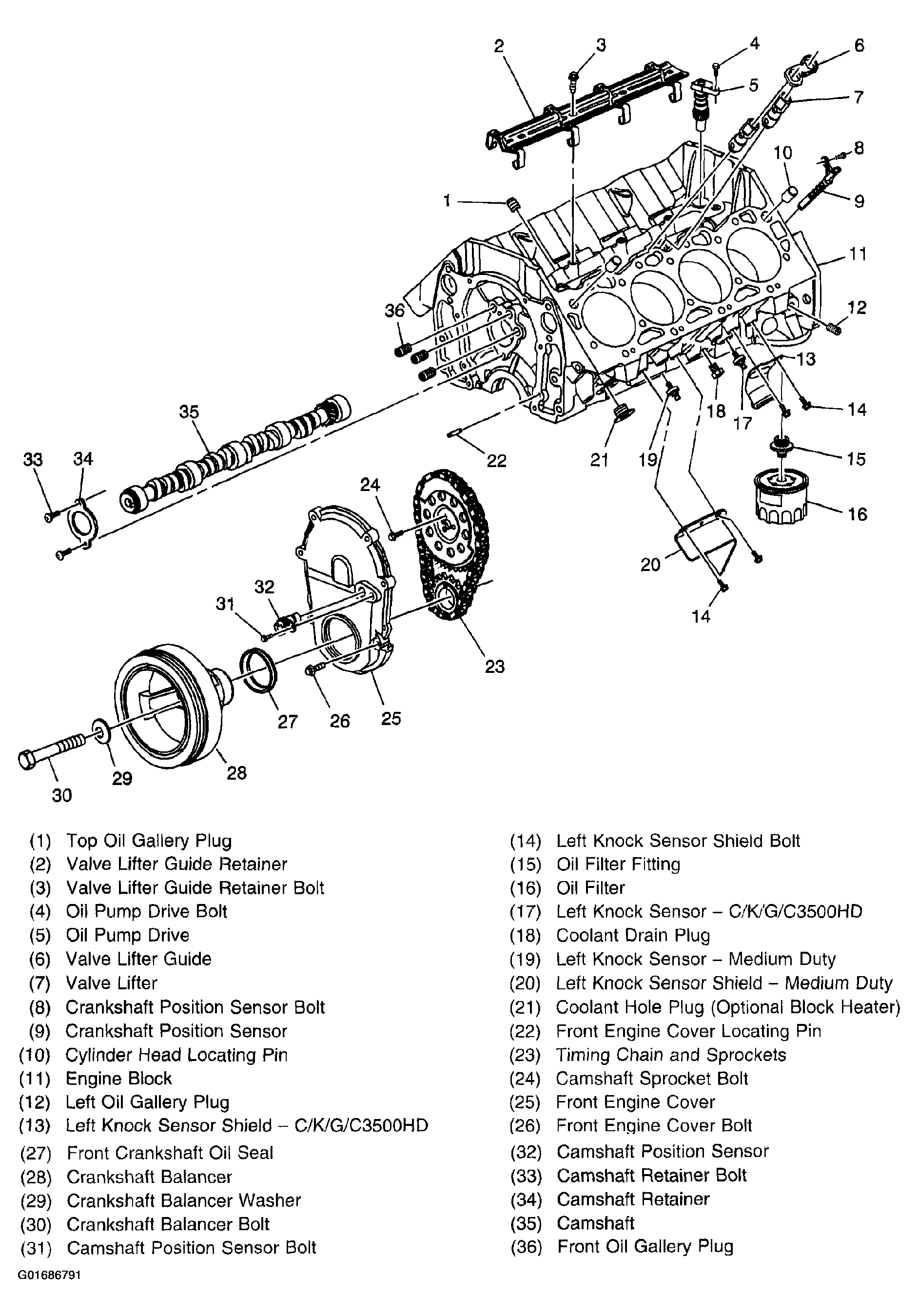

Fig 5: Lower Engine Block And Components

Courtesy of GENERAL MOTORS CORP.
